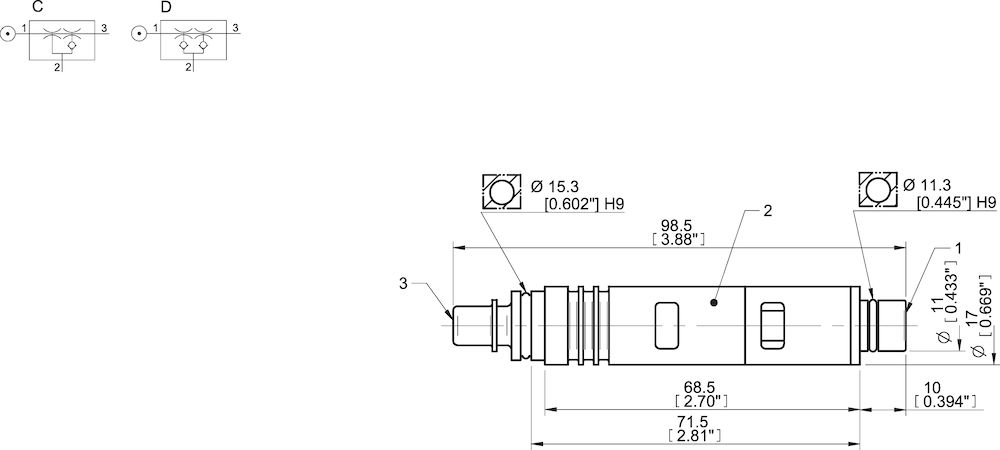

Piab COAX® cartridge MIDI Si32-2, extra non-return valve

COAX® is an advanced solution for creating vacuum with compressed air. Based on Piab’s multistage technology, COAX® cartridges are smaller, more efficient and more reliable than conventional ejectors, that allows for the design of a flexible, modular and .

$151.66
Part Number
  • 01.07.709
Highlights...

Features

  • Two-stage COAX® cartridge - MIDI - with small mounting dimension for limited spaces.
  • Large vacuum flow in relation to energy consumption.
  • Suitable for high-volume evacuation when handling porous materials or if surface leakage is present.
  • Used in P5010 and VGS™5010.
  • Material: Nitrile (NBR);Al;PA;SS
  • Temperature: 14 °F
  • Dimensions: 0.06 lb. (weight)
  • Feed Pressure (Max): 0.7 MPa
