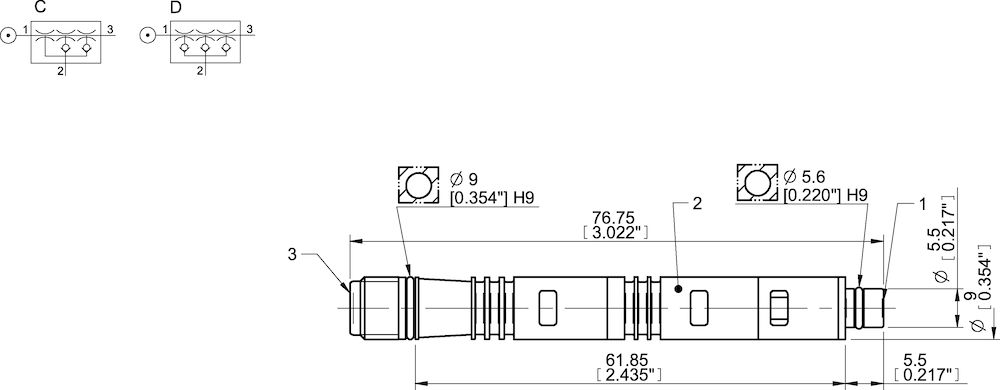

Piab COAX® cartridge MINI Pi12-3

COAX® is an advanced solution for creating vacuum with compressed air. Based on Piab’s multistage technology, COAX® cartridges are smaller, more efficient and more reliable than conventional ejectors, that allows for the design of a flexible, modular and .

$72.99
Part Number
  • 01.06.895
Highlights...

Features

  • Three-stage COAX® cartridge - MINI - with high initial vacuum flow.
  • Vacuum level to 27 -inHg at  low feed pressure.
  • High system reliability in case of fluctuating or low feed pressure.
  • Suitable for handling sealed objects with high pick-up speed.
  • Used in VGS™3010 and VGS™3040.
  • Material: Nitrile (NBR);Al;PA;SS
  • Temperature: 14 °F
  • Dimensions: 0.01 lb. (weight)
  • Feed Pressure (Max): 0.7 MPa
