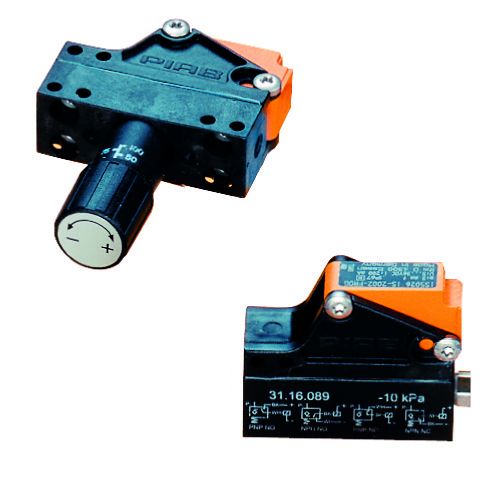

Piab Vacuum switch, inductive universal, adjustable with knob Ø6

Our line includes inductive universal, electro-mechanical and pneumatic vacuum switches that are pre-set or adjustable.

$196.15
Part Number
  • 01.04.350
Highlights...

Features

  • Converts a vacuum level to an digital signal, 24 VDC.
  • Vacuum-actuated membrane linked to a proximity-inductive universal switch.
  • Integrated cable with open ends included.
  • PNP NO/NC or NPN NO/NC output functions.
  • The switch must be connected in series with the load.
  • Material: Nitrile (NBR);Al;CuZn;PA;PBTP;POM;PVC;SS
  • Temperature: -13 °F

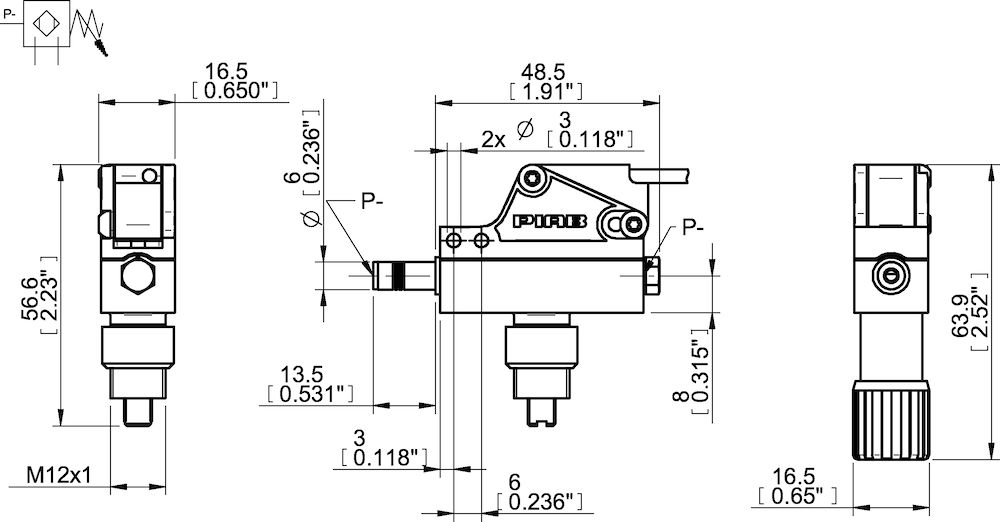

  • Dimensions: 0.65 in. (depth) x 1.91 in. (width) x 2.51 in. (length), 0.16 lb. (weight)
