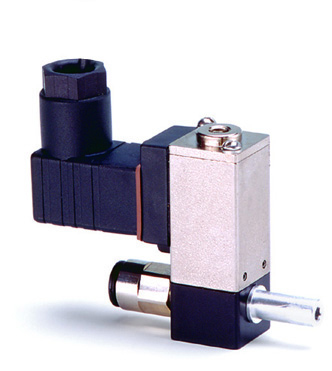

Piab Solenoid valve DS 23 for control ON/OFF

Choose between solenoid, electrically or vacuum-controlled valves. The vacuum controlled valve (Vacustat) shuts off the flow of compressed air to the pump when the pre-set level is reached, and consequently the consumption of compressed air is minimised.

$152.62
Part Number
  • 01.04.274
Highlights...

Features

  • Electric 3/2 valve with manual override.
  • Quick and easy mounting with push-in connections.
  • Body with 3 M5 ports.
  • Suitable for compressed air, filtration 40µ.
  • Material: Nitrile (NBR);Al;CuZn;Nickel;POM;SS
  • Temperature: 0 °F

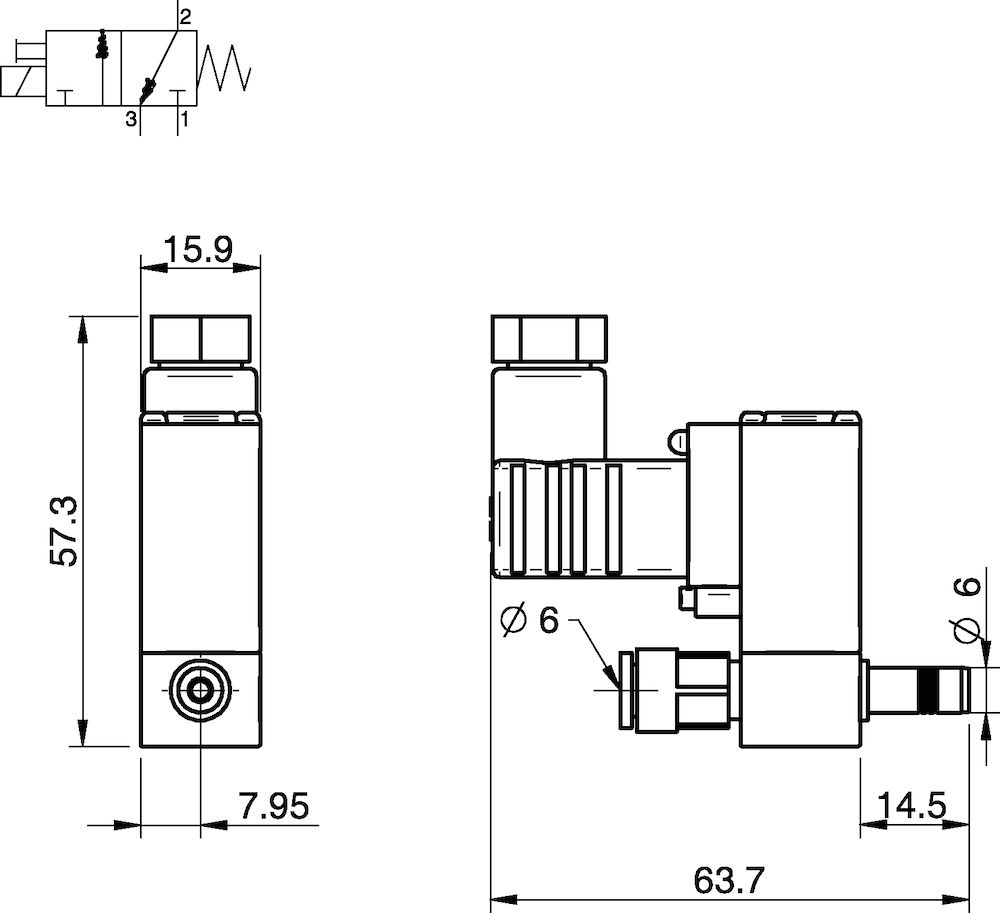

  • Dimensions: 0.63 in. (depth) x 1.96 in. (width) x 2.26 in. (length), 0.22 lb. (weight)
  • Feed Pressure (Max): 0.6 MPa
