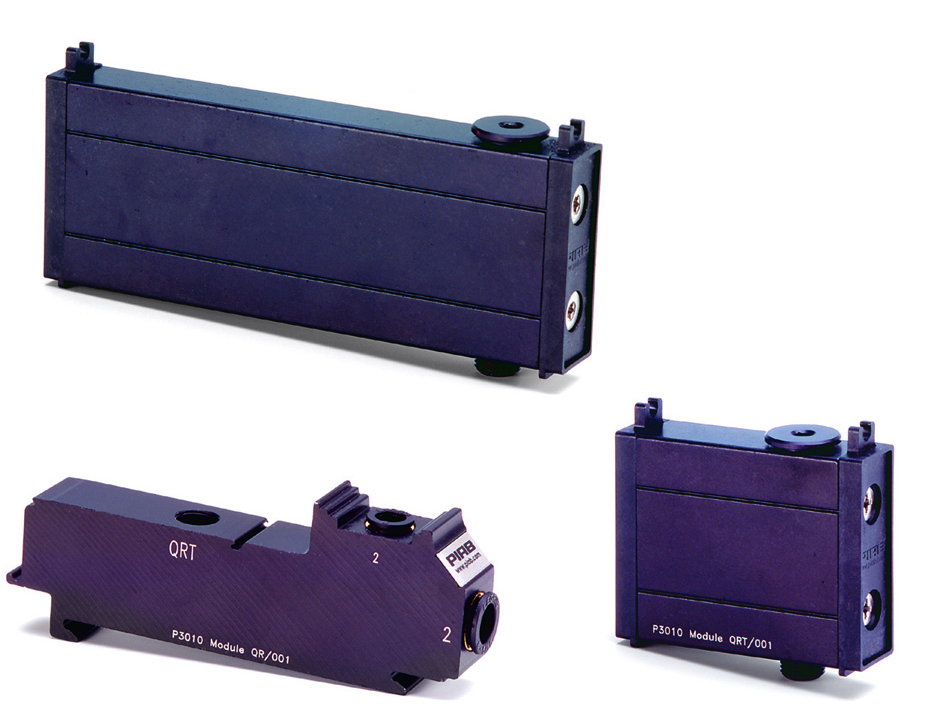

Piab Quick-Release tank module P3010, 60 cm³

Choose between solenoid, electrically or vacuum-controlled valves. The vacuum controlled valve (Vacustat) shuts off the flow of compressed air to the pump when the pre-set level is reached, and consequently the consumption of compressed air is minimised.

$82.79
Part Number
  • 01.04.273
Highlights...

Features

  • For vacuum pump P3010.
  • Quick release by accumulating and utilizing the feed-air pressure as a boost.
  • ON/OFF activated simultaneously with the P3010
  • Three sizes for optimizing release volume with system volume.
  • Material: Nitrile (NBR);Al;PA;SS;PPS
  • Temperature: 14 °F

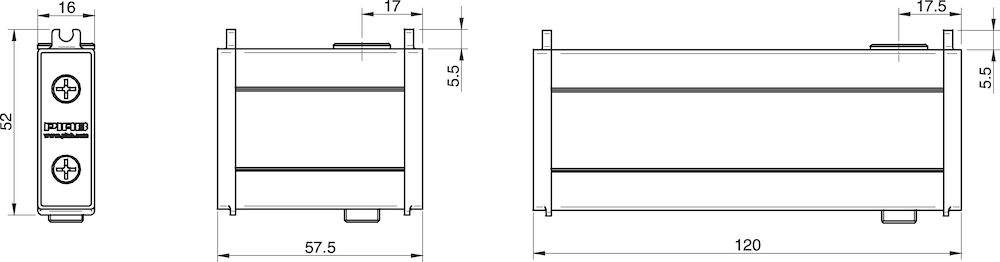

  • Dimensions: 0.63 in. (depth) x 4.72 in. (width) x 2.05 in. (length), 0.26 lb. (weight)
  • Feed Pressure (Max): 0.7 MPa
