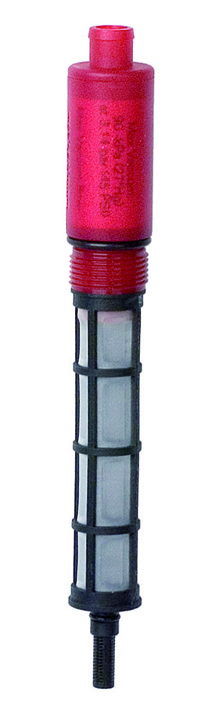

Piab COAX® cartridge MINI Pi12-3, holding cap with silencer, vacuum filter

COAX® is an advanced solution for creating vacuum with compressed air. Based on Piab’s multistage technology, COAX® cartridges are smaller, more efficient and more reliable than conventional ejectors, that allows for the design of a flexible, modular and .

$92.09
Part Number
  • 01.04.265
Highlights...

Features

  • Three-stage COAX® cartridge - MINI - with high initial vacuum flow.
  • Includes a flow-through silencer and a built-in vacuum filter for harsh environments.
  • Vacuum level to 27 -inHg at low feed pressure.
  • High system reliability in case of fluctuating or low feed pressure.
  • Suitable for handling sealed objects with high pick-up speed.
  • Used in P3010.
  • Material: Nitrile (NBR);PA;PP;SS
  • Temperature: 14 °F
  • Dimensions: 0.03 lb. (weight)
  • Feed Pressure (Max): 0.7 MPa
