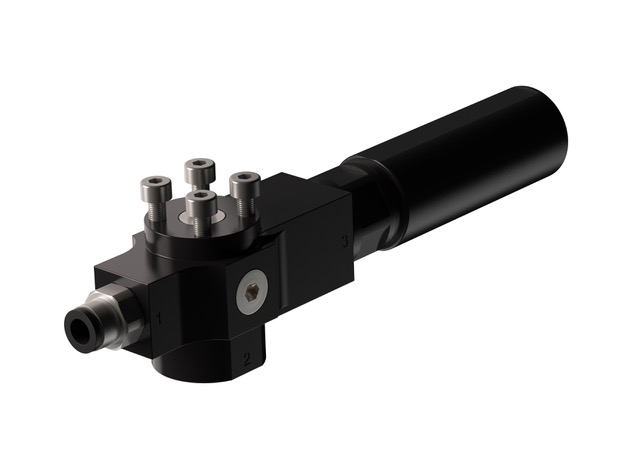

Piab VGS4005, SX42 Ø 6 mm

Piab VGS™ – A product design where different suction cups are integrated with vacuum cartridges based on the patented COAX® technology. The “vacuum gripper” makes selection, sizing and installation of a vacuum system easier. With a VGS™ you will enjoy the.

$287.05
Part Number
  • 02.31.208
Highlights...

Features

  • Light weight vacuum gripper ejector with plastic housing
  • VGS4005 with SX12 or SX42 cartridge without flap valves, a COAX® chosen for very harsh environments, combining high dust and high humidity levels
  • Optimal in applications when less vacuum depth is needed, such as bag/pouch handling etc
  • Reduced noise level with Integrated silencer
  • VGS4005 is compatible with any suction cup with G3/8" male fitting from Piab’s assortment.
  • Material: Nitrile (NBR);Al;CuZn;PA;POM;SS;Polyurethane (PU);PPM
  • Temperature: 14 °F
  • Dimensions: 0.15 lb. (weight)
  • Feed Pressure (Max): 0.7 MPa
