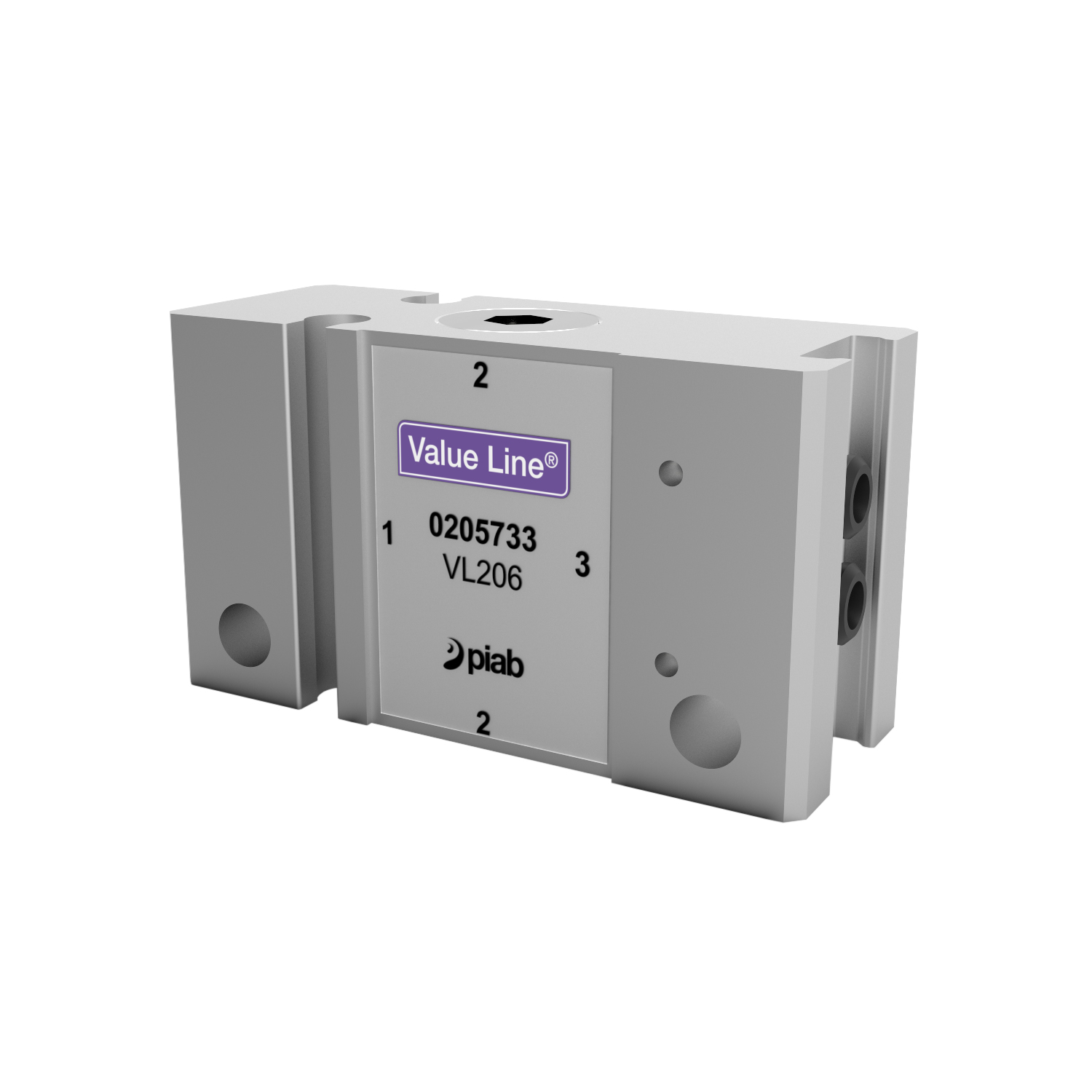

Piab Value Line® VL206 vacuum generator 1/8"

Light weight and small sized vacuum ejectors with integrated push-in fittings. One is made with a T-design that will allow exhaust air to be piped away. The other one is a typical inline design. The T-design is also suitable for clean-room environments. E.

$92.99
Part Number
  • 02.05.733
Highlights...

Features

  • Ejector with improved vacuum performance compared to corresponding size conventional single-stage ejector.
  • Ejector stage without flap valve gives high reliability in dirty and dusty environments.
  • Light weight body.
  • Integrated push-in fittings or thread connection for quick and low cost installation.
  • Available in “Inline”, “T-design” or aluminum block version.
  • The T-design is suitable if exhaust air needs to be piped away.
  • The VL206 1/8” block version is an easy-to-install alternative, targeting operators of basic automated vacuum systems.
  • Material: Al;NBR (FKM);PA;SS
  • Temperature: 14 °F
  • Dimensions: 0.1 lb. (weight)
  • Feed Pressure (Max): 0.7 MPa
