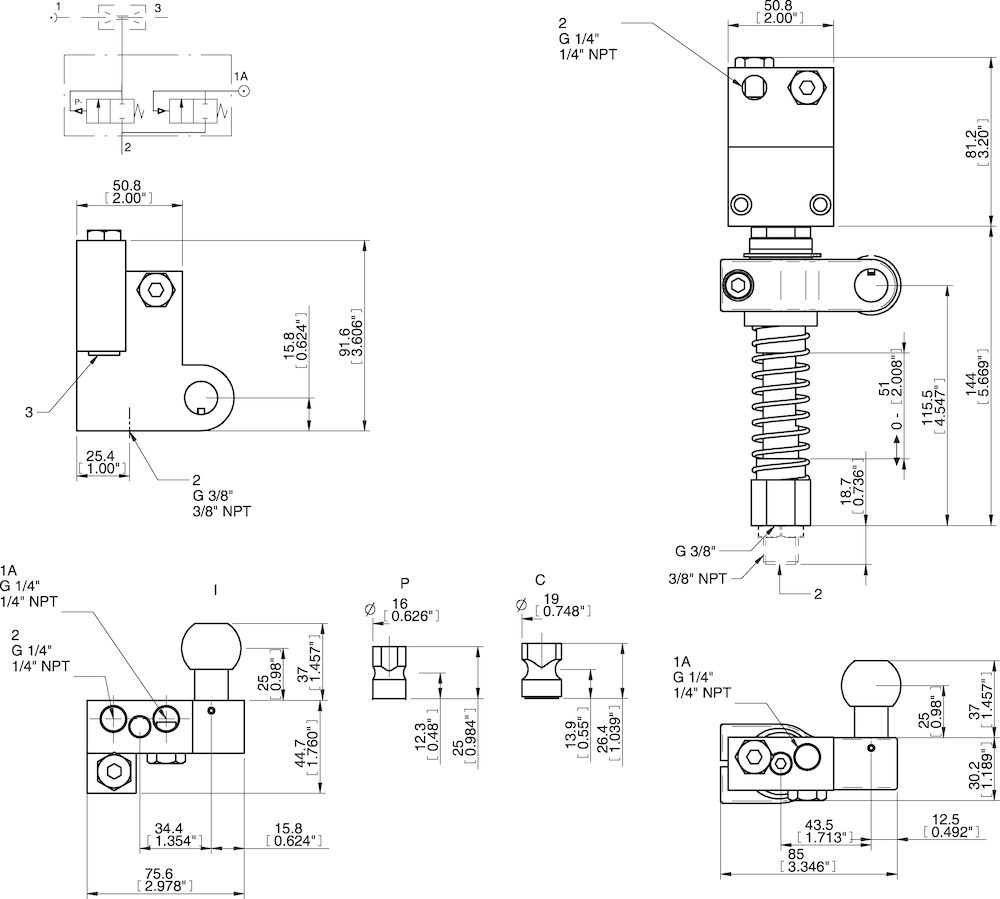

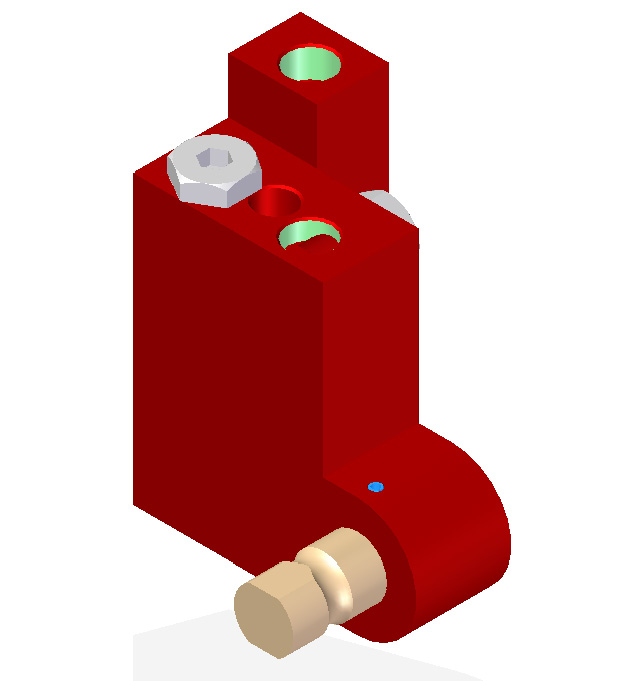

Piab Vacuum Check Valve VT-1H, G threads, Lock pin 16, Right hand connection

Choose between solenoid, electrically or vacuum-controlled valves. The vacuum controlled valve (Vacustat) shuts off the flow of compressed air to the pump when the pre-set level is reached, and consequently the consumption of compressed air is minimised.

Call for pricing
Part Number
  • X1025RH
Highlights...

Features

  • Check valve that traps vacuum in sealed applications for safe operation.
  • Built-in blow off check valve for fast release of object.
  • Available in lock pin 16, 19 or ball joint mountings, industry standard.
  • Available with level compensator to compensate for differences in level of object.
  • Recommend using 4mm (5/32”) tubing and no more than 80 psi for blow off.
  • Recommend using 6mm (1/4”) tubing and no more than 80 psi for vacuum.
  • Equal line lengths from common manifold should be used for both blow-off and vacuum.
  • Maximum of (12) units per tool.
  • Material: Nitrile (NBR);Al;CuZn;SS;Polyurethane (PU);Steel;Ceramic
  • Temperature: -22 °F
  • Dimensions: 0.77 lb. (weight)
  • Feed Pressure (Max): 0.55 MPa
