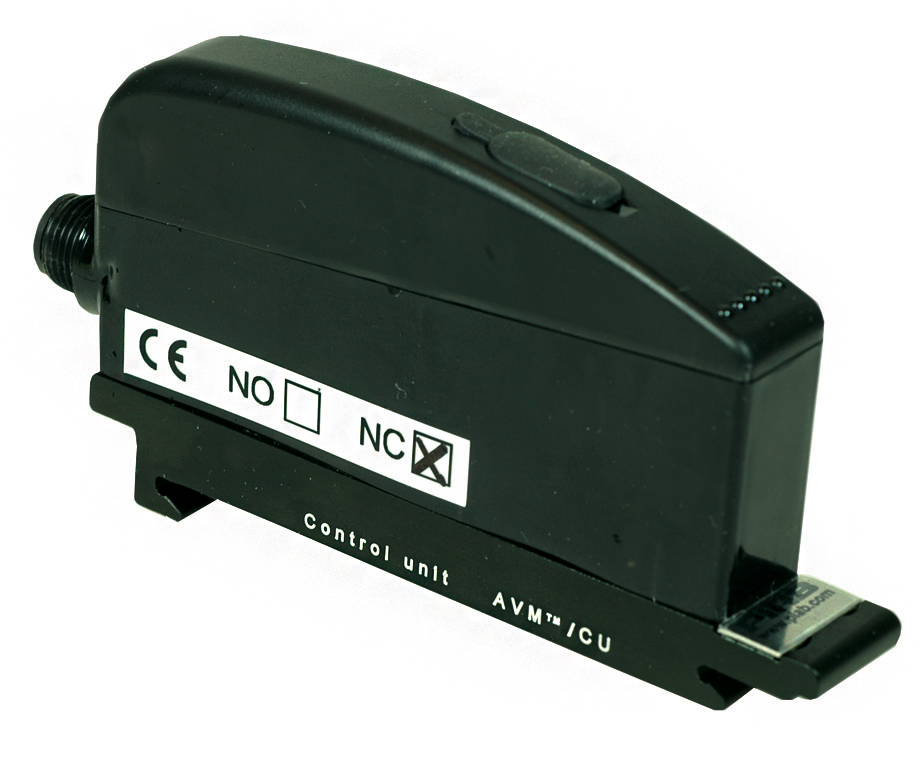

Piab 01.17.924 Vacuum pumps and ejectors

Choose between solenoid, electrically or vacuum-controlled valves. The vacuum controlled valve (Vacustat) shuts off the flow of compressed air to the pump when the pre-set level is reached, and consequently the consumption of compressed air is minimised.

$275.41
Part Number
  • 01.17.924
Highlights...

Features

  • For vacuum pumps P3010, P5010 and P6010.
  • CU with electric valves for vacuum on/off and blow-off.
  • Mechanical valve for blow-off flow adjustment.
  • Special M12 4-pin cable assembly with LED for status of valve signal.
  • Material: Nitrile (NBR);Al;PA;PMMA;SS
  • Temperature: 32 °F
  • Feed Pressure (Max): 0.7 MPa
