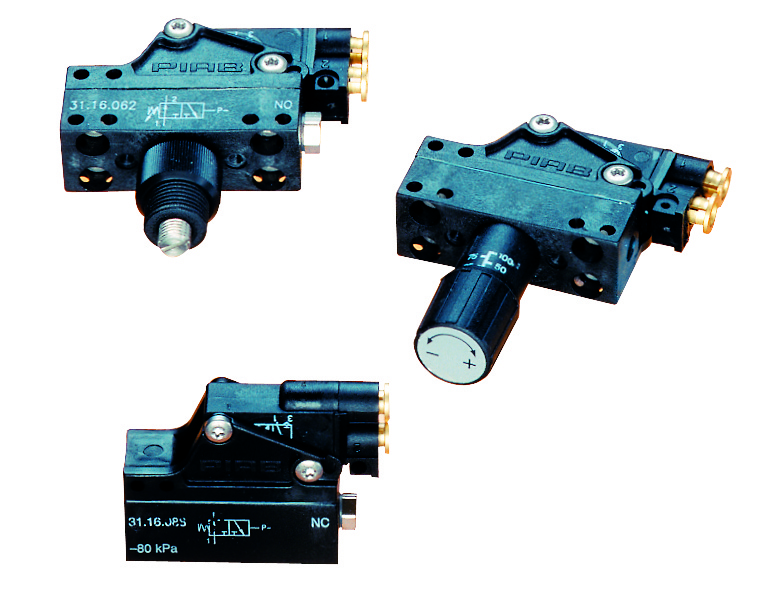

Piab Vacuum switch, pneumatic, adjustable with screw and knob (NC)

Our line includes inductive universal, electro-mechanical and pneumatic vacuum switches that are pre-set or adjustable.

$139.75
Part Number
  • 31.16.063
Highlights...

Features

  • Converts a vacuum level to a pneumatic signal.
  • Vacuum-actuated membrane linked to a pneumatic switch.
  • Available preset or with adjustable vacuum level.
  • Material: Nitrile (NBR);Al;CuZn;PA;POM;SS
  • Temperature: 14 °F
  • Dimensions: 0.09 lb. (weight)
  • Feed Pressure (Max): 0.6 MPa
  • Feed Pressure (Optimum): 0.15 MPa
