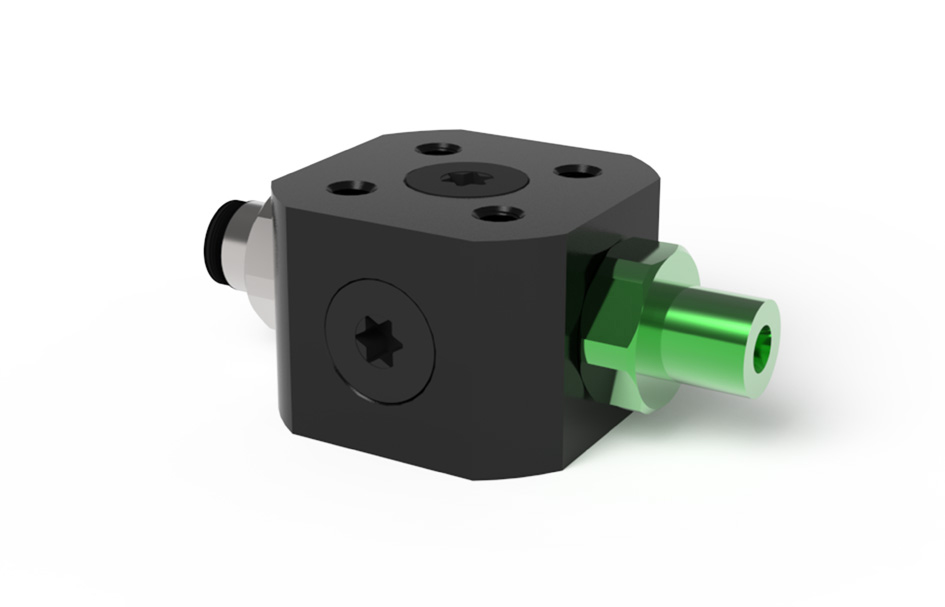

Piab COAX® in piGRIP® Bi

A variety of fittings for suction cups.

$106.21
Part Number
  • 02.01.096
Highlights...

Features

  • Fully decentralized vacuum unit based on patented COAX® technology.
  • Quick response time and very high energy efficiency.
  • Easy system dimensioning – small risk for mistakes.
  • Available with a variation of two-stage COAX® MICRO cartridges.
  • Suitable for high vacuum flow.
  • Suitable for extra capacity/dirt tolerance.
  • Material: Nitrile (NBR);Al;CuZn;PA
  • Temperature: 14 °F
  • Dimensions: 0.1 lb. (weight)
  • Feed Pressure (Max): 0.7 MPa
