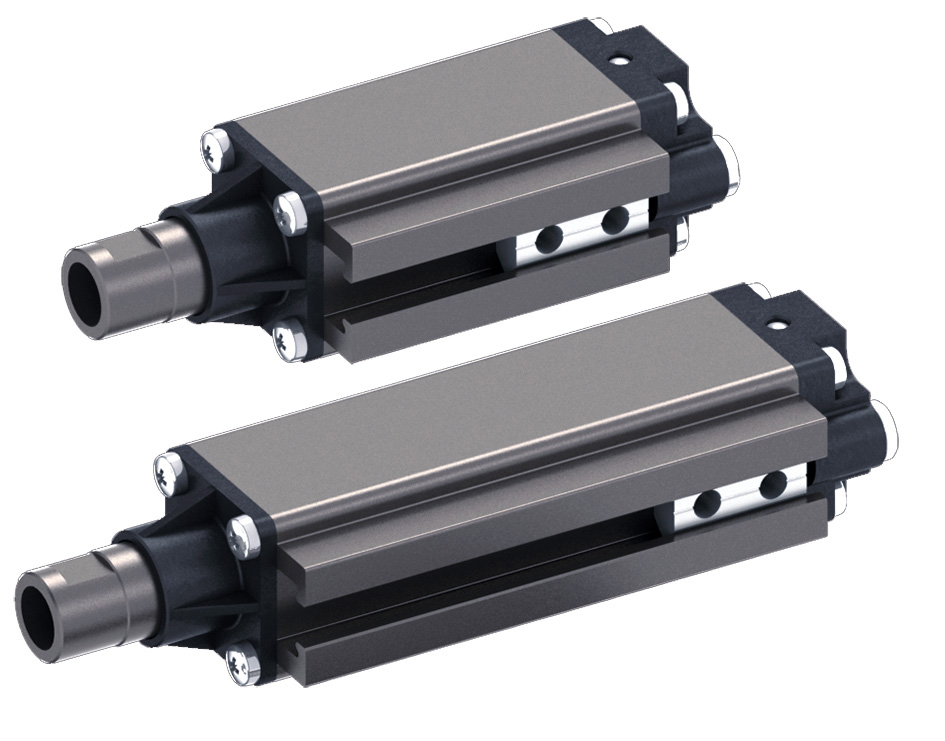

Piab Vactivator V18/20

Adjust differences in levels, for example on lifting devices with several suction cups. There is then less demand for exact positioning of vacuum handling device. Level compensators will also provides a certain degree of shock and vibration absorption.

$249.82
Part Number
  • 01.29.516
Highlights...

Features

  • Actuated by vacuum only.
  • Automatic extension and retraction.
  • Self-adjusting stroke, the piston with a suction cup returns home as soon as it seals off the object.
  • Suction cup ordered separately.
  • Simple solution for high picking speed.
  • Easy installation.
  • Designed for millions of cycles under normal industrial conditions.
  • Material: Nitrile (NBR);Al;CuZn;POM;SS;Iron FE
  • Temperature: 50 °F
  • Dimensions: 0.2 lb. (weight)
  • Vacuum (Max): 100 MPa
