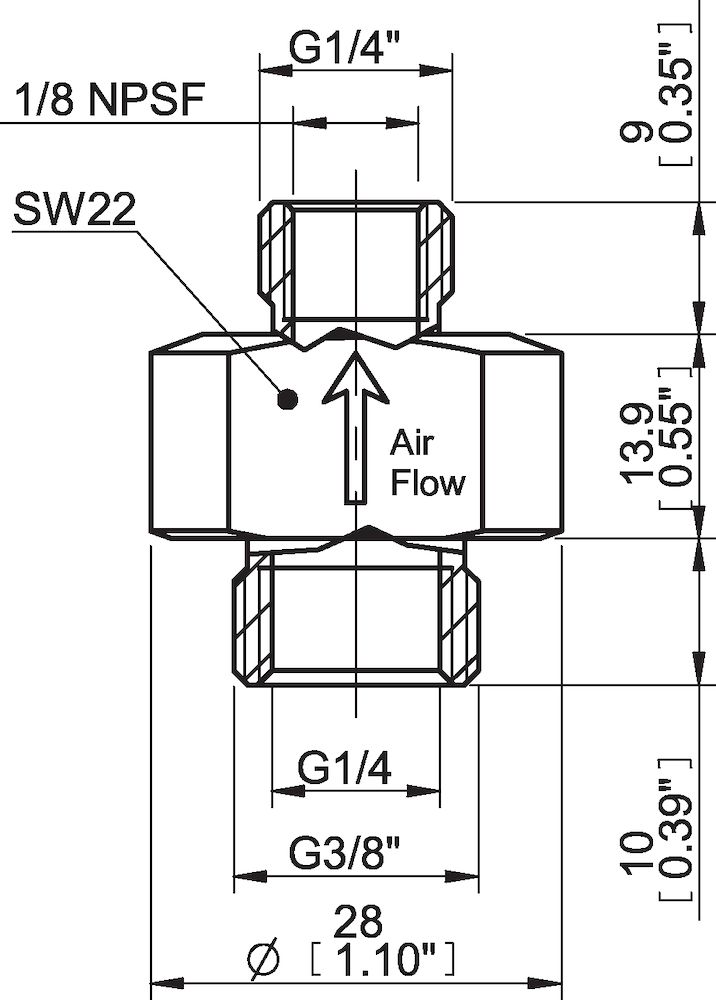

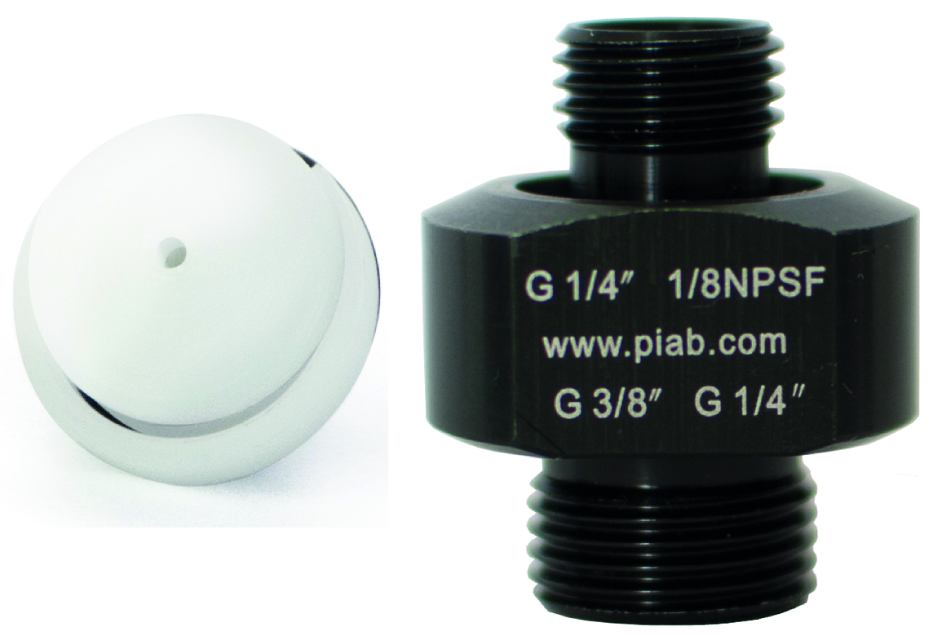

Piab piSAVE® restrict multiple port fitting 1.0

Features

• Vacuum flow restrictors which allows a few suction cups to miss the object(s) and still maintain enough vacuum level in the system.
• Suitable for handling different size sealed sheets/objects with the same flexible lifting device
• The vacuum flow restrictors shall be used in a centralized vacuum system, one for each suction cup.
• Designing with flow restrictors will require a smaller vacuum pump and save energy.
• Available in three sizes with different flow performance/characteristics to suit different size suction cups
• The restrictors are integrated in an Al-fittng with female and male threaded connections to faciliate installation
• Material: Nitrile (NBR);Al;POM
• Temperature: -4 °F
• Dimensions: 0.05 lb. (weight)
