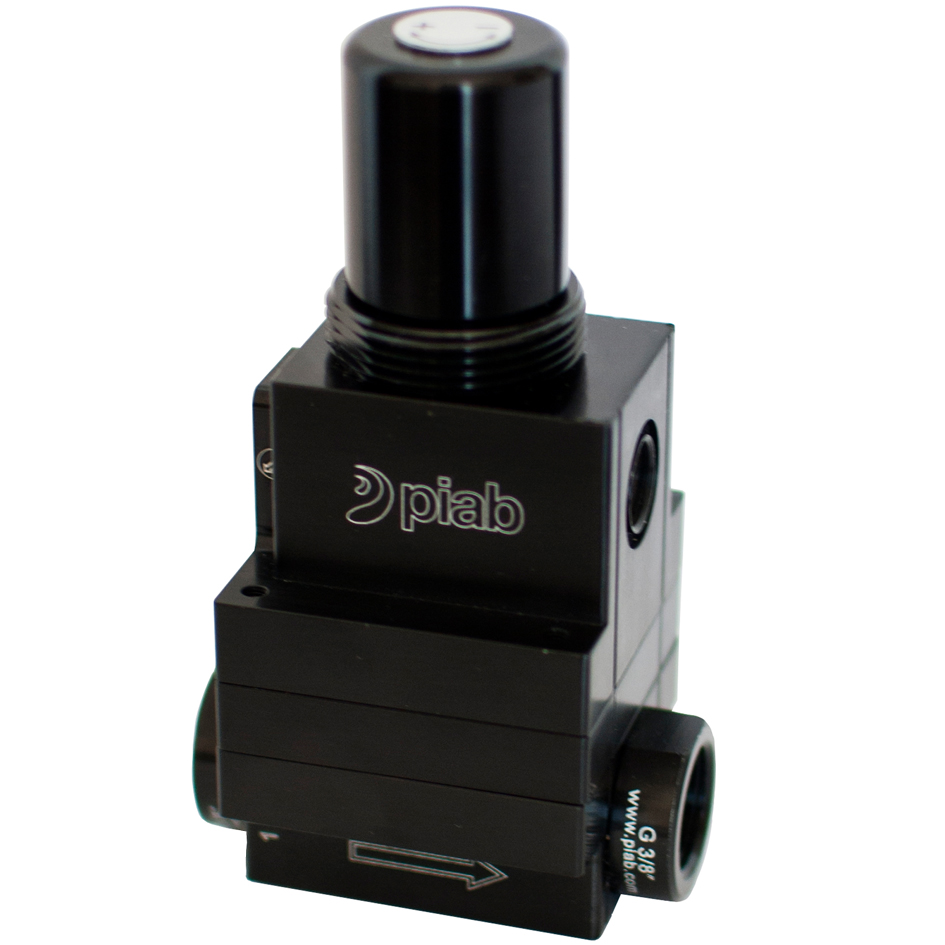

Piab piSAVE® optimize upgrade kit piCLASSIC/Classic

Different vacuum pumps need different feed pressure for optimum performance. A filter regulator can easily be manually set to a desired pressure level, and be used to eliminate particles from the compressed air. A pilot regulator can be used to automatica.

$296.70
Part Number
  • 01.29.002
Highlights...

Features

  • Vacuum controlled proportional pressure regulator, a fully pneumatic device suitable for air-driven ejectors/pumps.
  • The feed pressure to the vacuum pump/ejector is automatically regulated and controlled to maintain the set vacuum level. Air/energy usage is kept to a minimum for the application (optimized).
  • Recommended for leaking and sealed applications to save energy and secure the right vacuum level.
  • Extra port for vacuum gauge
  • Air ventilation port with filter
  • Swivel compressed air connections
  • piSAVE® optimize gives maximum feed pressure/flow to vacuum pump/ejector until vacuum level starts to build up.
  • Separate mounting bracket kit
  • Upgrade kit - available as an integrated module for piCLASSIC and Classic vacuum pumps
  • Material: Nitrile (NBR);HNBR;Al;CuZn;SS;PA66
  • Temperature: 14 °F
  • Dimensions: 0.59 lb. (weight)
  • Feed Pressure (Max): 0.7 MPa
