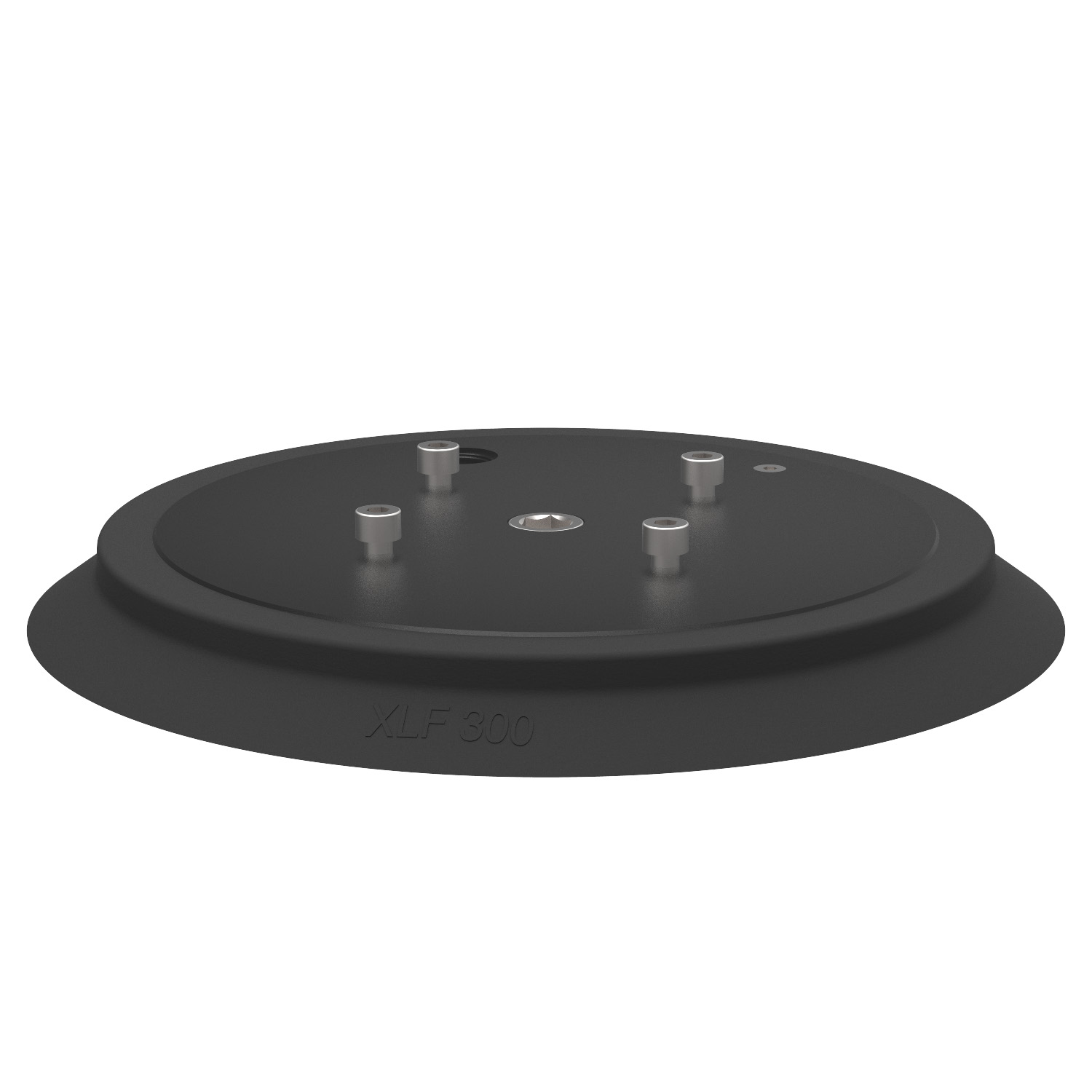

Piab XLF300 Extra Large Flat cup, G1/2" female

Suitable for handling large and heavy sheets, such as glass and metal, with a flat or slightly concave surface. Friction pattern increases safety and capability to handle tilted or standing glass/metal sheets. Double lip design increases safety against ov.

$275.82
Part Number
  • XLF300.30.64UA
Highlights...

Features

  • Suitable for handling large and heavy sheets, such as glass and metal, with a flat or slightly concave surface.
  • Friction pattern increases safety and capabillity to handle tilted or standing glass/metal sheets.
  • Double lip design increases safety against over-load or tear on the outer lip.
  • Durable and abrasive resistant material reduces the risk for marks.
  • Flat mounting plate facilitates customized mounting interfaces.
  • Auxiliary port, suitable for vacuum sensing or efficient blow-off/release.
  • Material: Nitrile-PVC (NPV)
  • Dimensions: 1.06 in. (length), 4.48 lb. (weight)
  • Fitting Size: 12 mm.
