Piab piINLINE® vacuum generator MIDI Si, 8-12 mm

piINLINE® are small light-weight inline ejectors that use the patented COAX® technology inside. They can be mounted directly on a hose close to the suction cup (or point of suction). Piab’s piINLINE® ejector program offers much better performance with at .

$158.70
Part Number
  • 01.22.032
Highlights...

Features

  • Patented COAX® cartridge technology.
  • High vacuum flow capacity in relation to energy consumption.
  • Low weight inline design with push-in fittings for vacuum and compressed air.
  • Quick and easy installation directly on the hose.
  • Si cartridge for extra vacuum flow.
  • Pi cartridge for high performance at low feed pressures
  • Xi cartridge when high flow and deep vacuum is needed.
  • Material: Nitrile (NBR);CuZn;PA;SS
  • Temperature: 14 °F

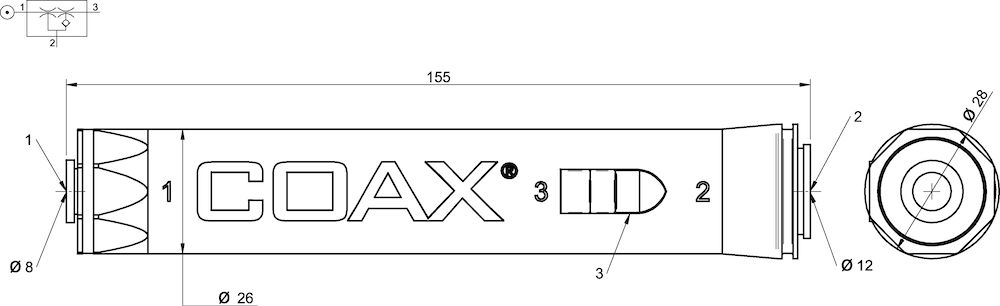

  • Dimensions: 0.19 lb. (weight)
  • Feed Pressure (Max): 0.7 MPa
