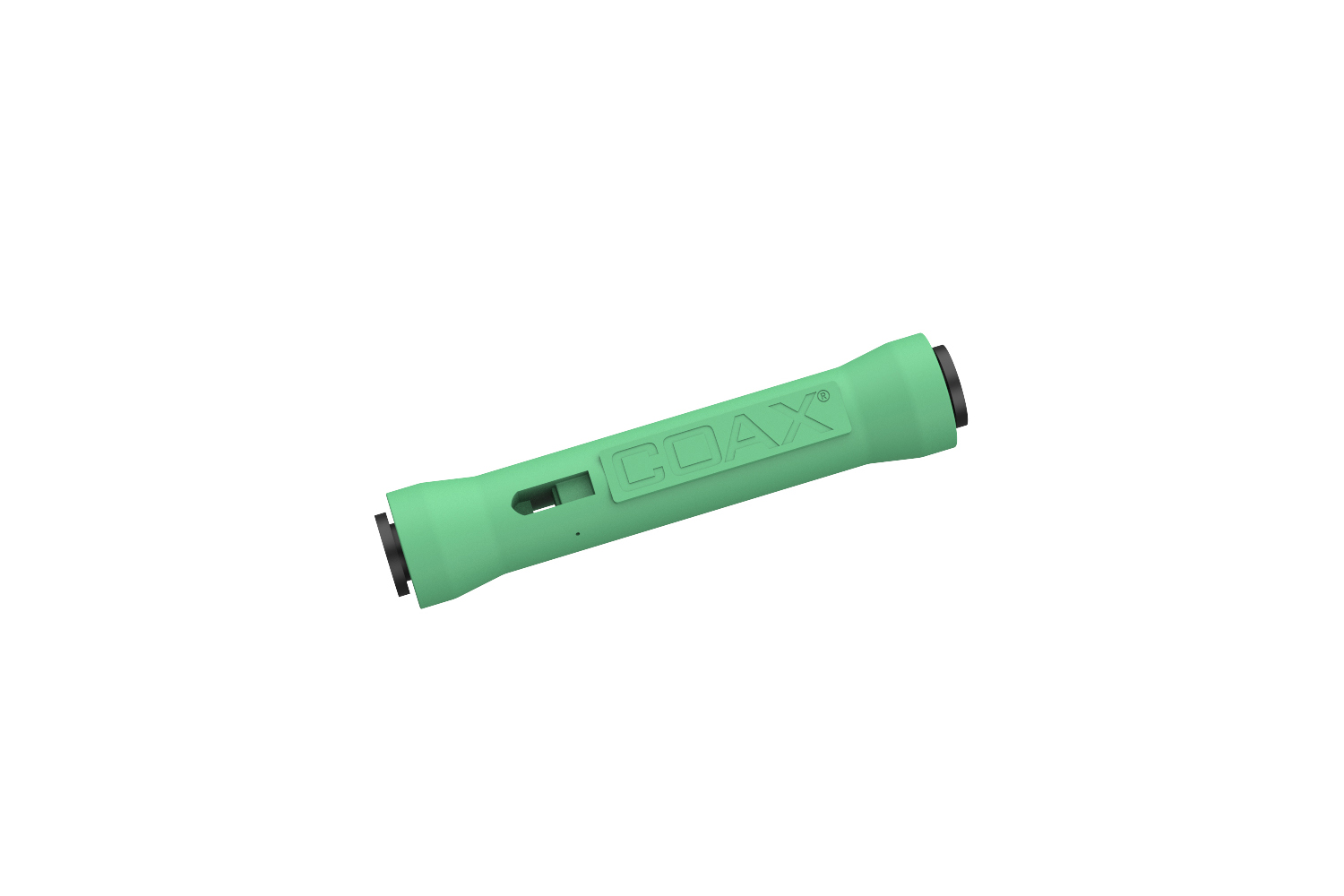

Piab piINLINE® vacuum generator MICRO Ti, 6-6 mm

piINLINE® are small light-weight inline ejectors that use the patented COAX® technology inside. They can be mounted directly on a hose close to the suction cup (or point of suction). Piab’s piINLINE® ejector program offers much better performance with at .

$44.94
Part Number
  • 01.22.022
Highlights...

Features

  • Patented COAX® cartridge technology.
  • High vacuum flow capacity in relation to energy consumption.
  • Low weight inline design with push-in fittings.
  • Quick and easy installation directly on the hose.
  • Si/Ti cartridge at 87 psi for extra vacuum flow.
  • Bi cartridge for high performance at low pressure.
  • Ti/Xi cartridge at 58/72.5 psi when high flow and deep vacuum is needed.
  • Material: Nitrile (NBR);CuZn;PA;SS;TPE
  • Temperature: 14 °F
  • Dimensions: 0.02 lb. (weight)
  • Feed Pressure (Max): 0.7 MPa
