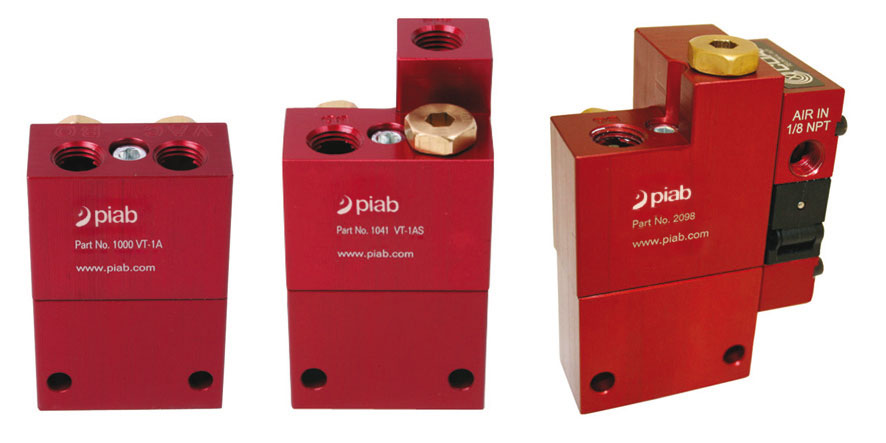

Piab Vacuum Check Valve VT1 COAX® cartridge MINI Pi12-2, 3/8"NPT-1/4"NPT

Choose between solenoid, electrically or vacuum-controlled valves. The vacuum controlled valve (Vacustat) shuts off the flow of compressed air to the pump when the pre-set level is reached, and consequently the consumption of compressed air is minimised.

$277.74
Part Number
  • 1041
Highlights...

Features

  • Check valve that traps vacuum in sealed applications for safe operation.
  • Built-in blow off check valve for fast release of object.
  • Optional two-stage COAX® cartridge MINI Pi12-2 integrated.
  • Optional integrated energy-saving device, Vacustat results in virtually no air consumption in sealed applications.
  • Recommend using 4mm (5/32”) tubing and no more than 80 psi for blow off.
  • Recommend using 6mm (1/4”) tubing and no more than 80 psi for vacuum.
  • Equal line lengths from common manifold should be used for both blow-off and vacuum.
  • Maximum of (12) units per tool.
  • Material: Nitrile (NBR);Al;CuZn;PA;PP;SS;Steel;Ceramic
  • Temperature: 14 °F
  • Dimensions: 0.86 lb. (weight)
  • Feed Pressure (Max): 0.55 MPa
