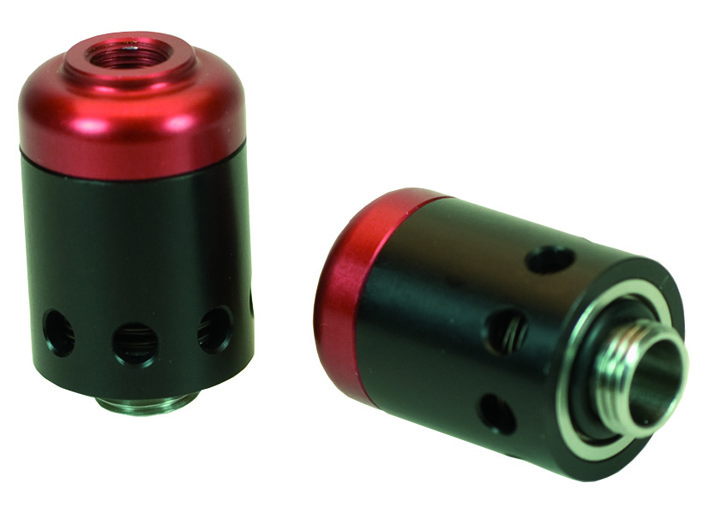

Piab piSAVE® release G1/4"

Choose between solenoid, electrically or vacuum-controlled valves. The vacuum controlled valve (Vacustat) shuts off the flow of compressed air to the pump when the pre-set level is reached, and consequently the consumption of compressed air is minimised.

$81.32
Part Number
  • 01.19.720
Highlights...

Features

  • Equalizes pressure in the suction cups to provide fast release of the product.
  • Extra fast release by accumulating and utilizing the feed-air pressure as a boost.
  • ON/OFF activated simultaneously with the ejector.
  • No additional controls required — use a single 3/2 control valve for the ejector and piSAVE® release.
  • Material: Nitrile (NBR);Al;SS
  • Temperature: 32 °F

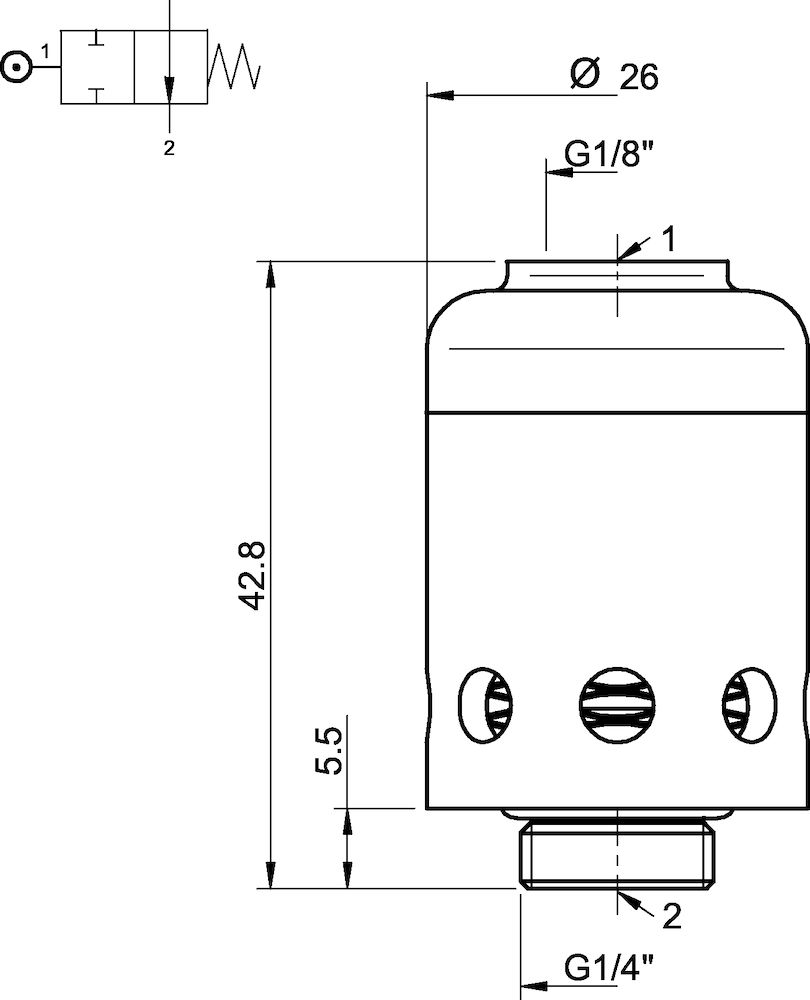

  • Dimensions: 1.02 in. (depth) x 1.02 in. (width) x 1.47 in. (length), 0.1 lb. (weight)
  • Feed Pressure (Max): 0.7 MPa
