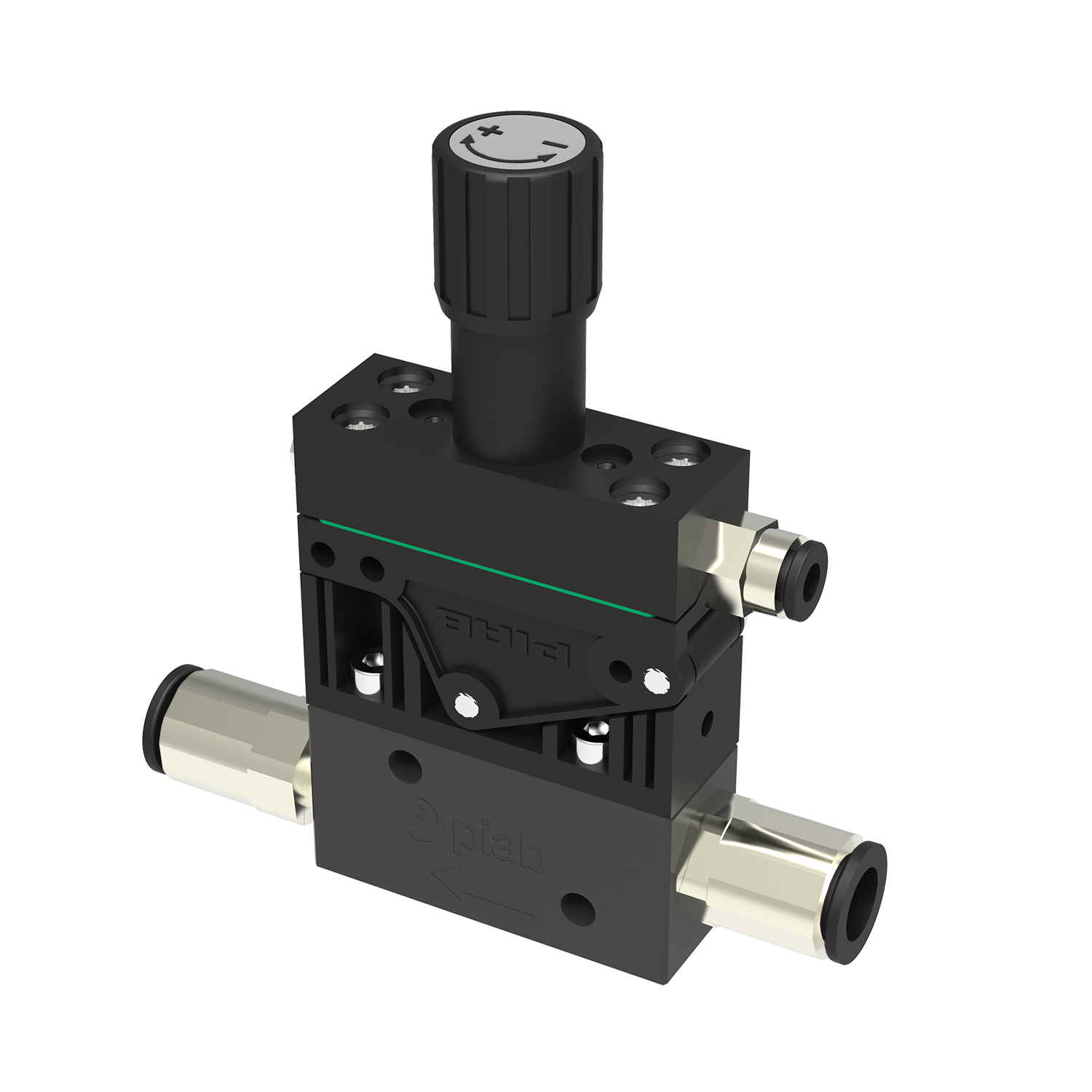

Piab piSAVE® onoff with large hysteresis

Choose between solenoid, electrically or vacuum-controlled valves. The vacuum controlled valve (Vacustat) shuts off the flow of compressed air to the pump when the pre-set level is reached, and consequently the consumption of compressed air is minimised.

$216.99
Part Number
  • 01.18.200
Highlights...

Features

  • Independent pneumatic air-saving device for vacuum pumps.
  • Adjustable vacuum controlled 2/2 NO valve.
  • Available with large hysteresis for object handling and small hysteresis for process applications.
  • The Vacustat is recommended for vacuum pumps in non-leaking systems.
  • The vacuum pump must be fitted with a non-return valve.
  • Material: Nitrile (NBR);Al;CuZn;PA;SS
  • Temperature: 32 °F

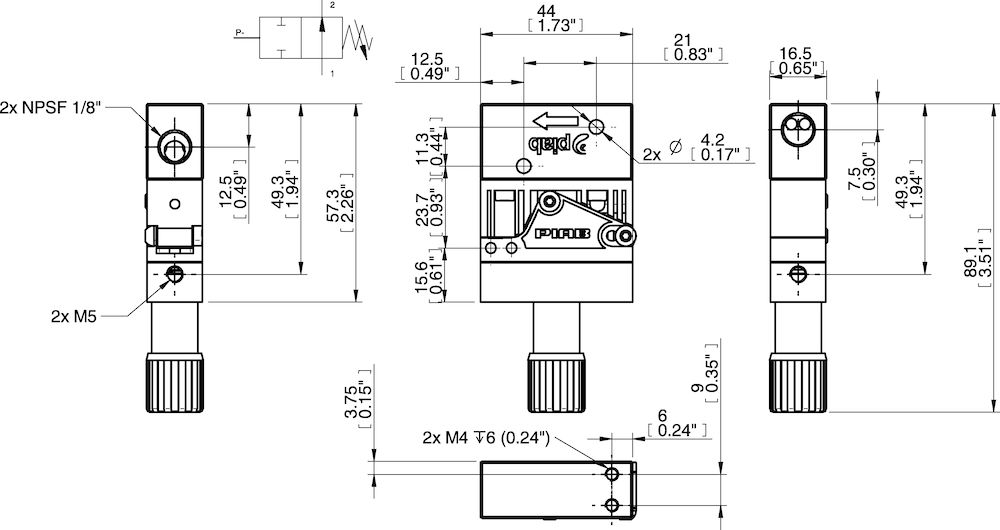

  • Dimensions: 0.65 in. (depth) x 1.73 in. (width) x 3.51 in. (length), 0.23 lb. (weight)
  • Feed Pressure (Max): 0.6 MPa
  • Feed Pressure (Optimum): 0.17 MPa
