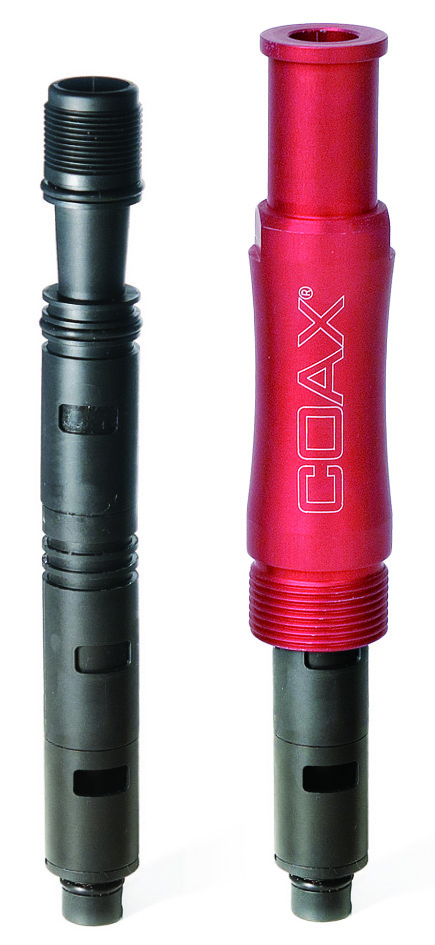

Piab COAX® cartridge MIDI Pi48-3, sealings in Viton®

COAX® is an advanced solution for creating vacuum with compressed air. Based on Piab’s multistage technology, COAX® cartridges are smaller, more efficient and more reliable than conventional ejectors, that allows for the design of a flexible, modular and .

$246.76
Part Number
  • 01.17.286
Highlights...

Features

  • Three-stage COAX® cartridge - MIDI - with high initial vacuum flow.
  • Vacuum level to 27 -inHg at  low feed pressure.
  • High system reliability in case of fluctuating or low feed pressure.
  • Suitable for fast evacuation of large volumes in sealed systems.
  • Used in P5010, P6010, P6040 and VGS™5010.
  • Material: Nitrile (NBR);FKM;Al;PA;SS
  • Temperature: 14 °F
  • Dimensions: 0.07 lb. (weight)
  • Feed Pressure (Max): 0.7 MPa
