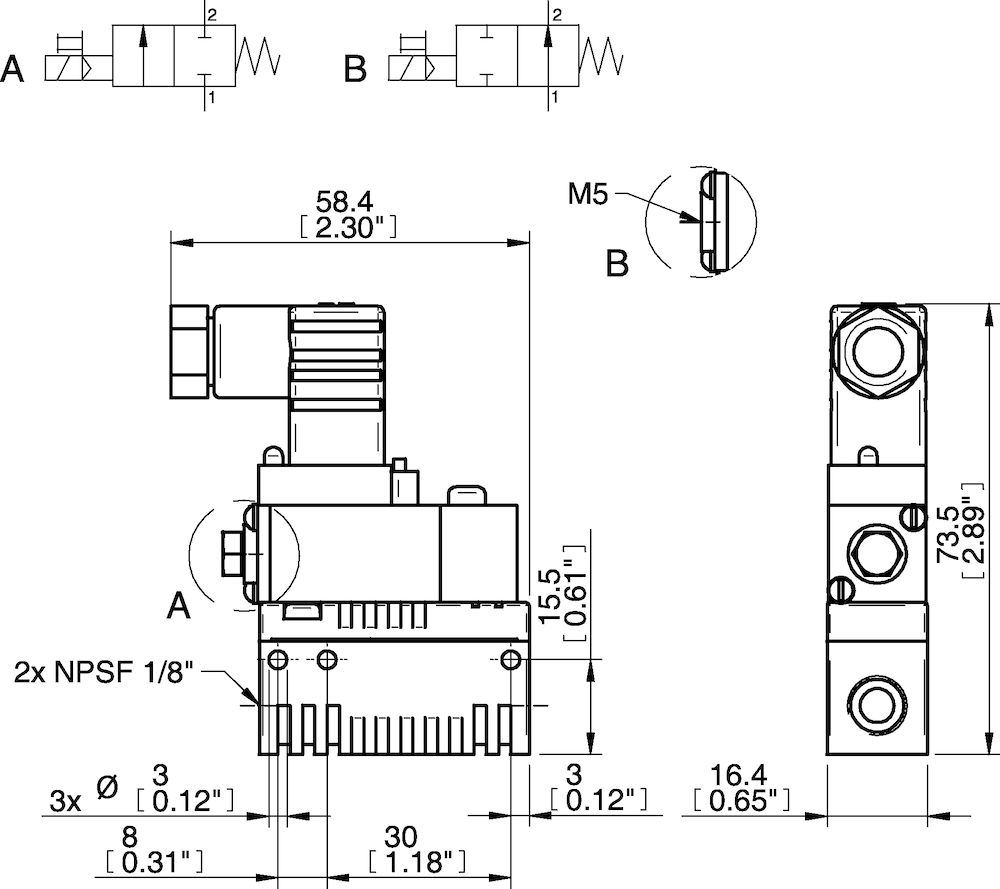

Piab Electrically controlled 2/2 valve DIP55 NC 2406 SD
Choose between solenoid, electrically or vacuum-controlled valves. The vacuum controlled valve (Vacustat) shuts off the flow of compressed air to the pump when the pre-set level is reached, and consequently the consumption of compressed air is minimised.
- 01.01.071
- 01.01.071
- By Piab
- FREE Shipping on orders of $1,000 or more
Overview
Features
- On/off valve
- 1/8" NPSF ports
- 0.6 W solenoid
- Electrical connections: DIN (c)
- Suitable for Piab vacuum pumps up to Classic size.
- Manual override
- Material: Thermoplastic Polyurethane (TPE-U);Nitrile (NBR);Al;CuZn;PA;PPS;PUR
- Temperature: 32 °F
- Dimensions: 0.22 lb. (weight)
- Feed Pressure (Max): 0.7 MPa
