Aventics ES Series Electro Slide

Freely programmable, modular electric drive slide suited for high dynamics, with powerful cantilever axis. Fully integrated functional safety package.

Call for pricing
Part Numbers
  • ES Series

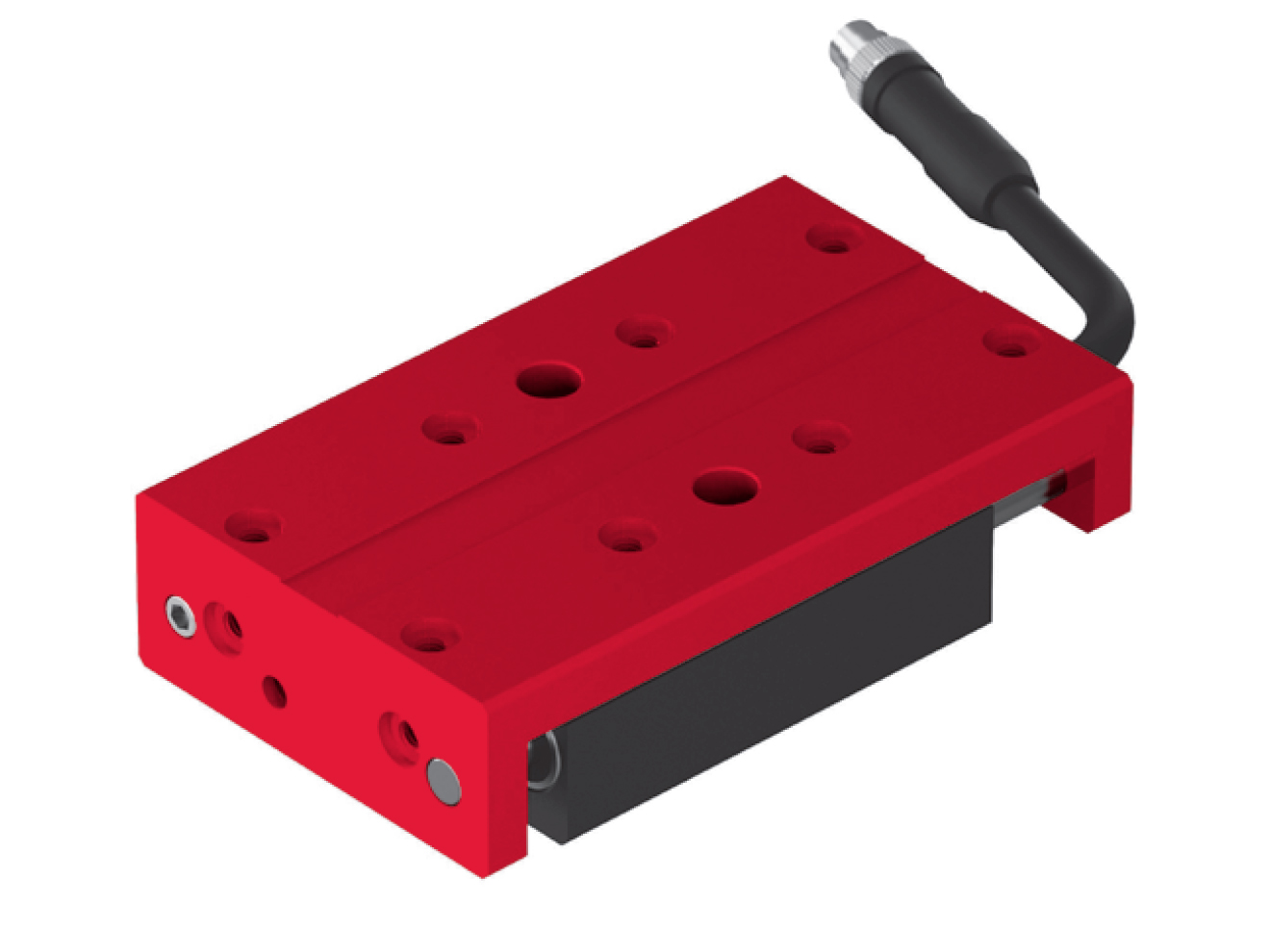

  • ES12

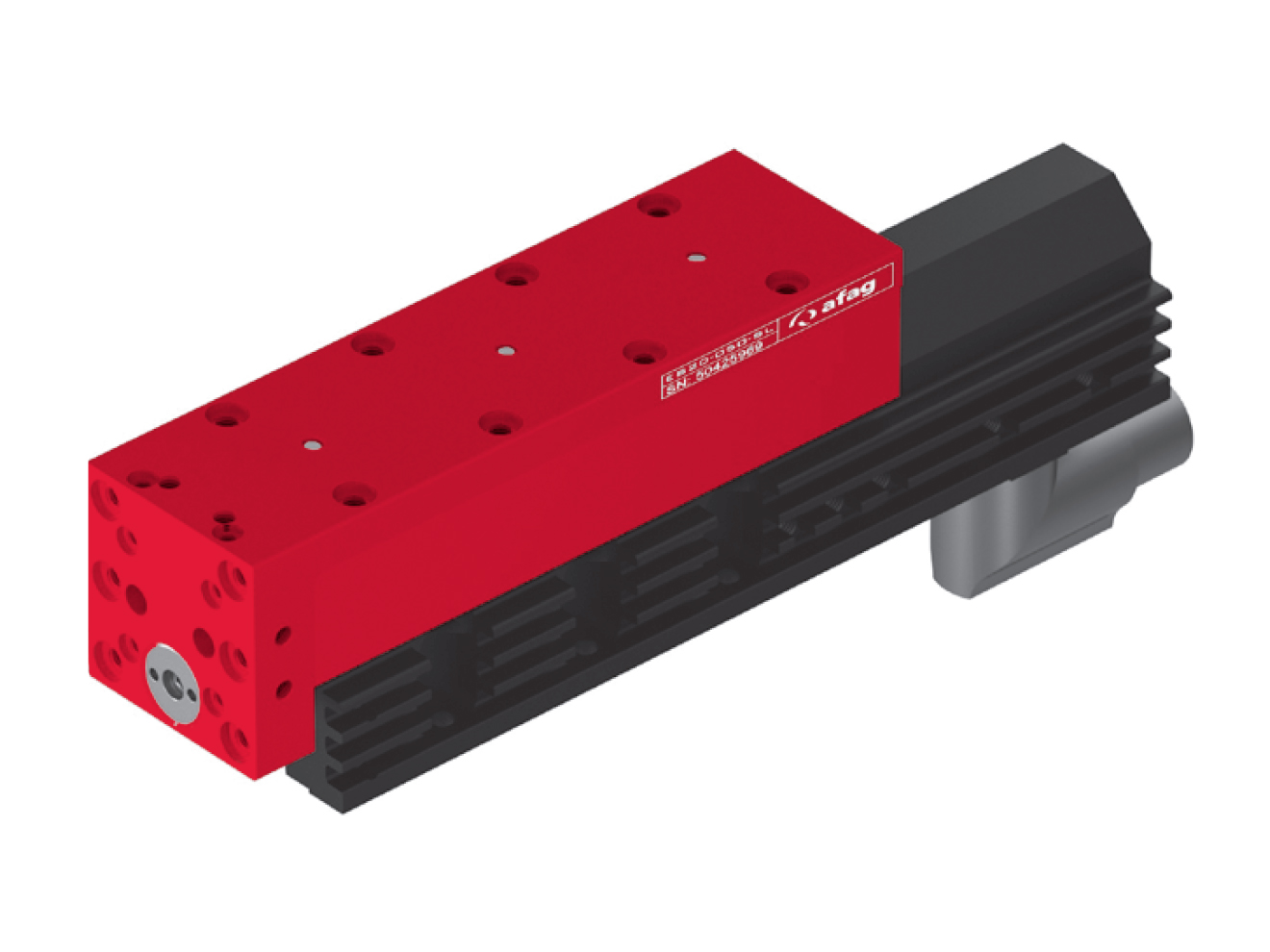

  • ES20

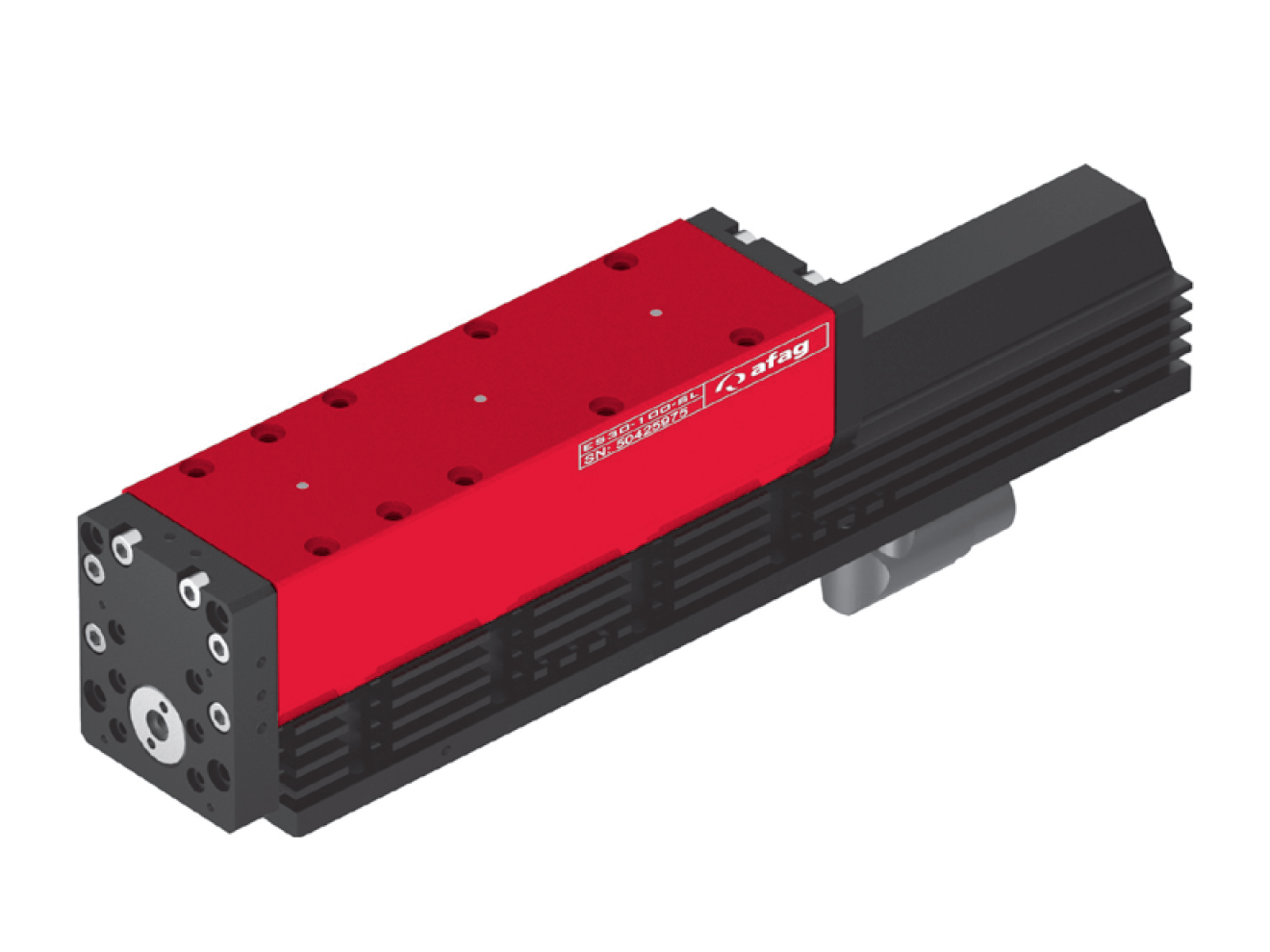

  • ES30

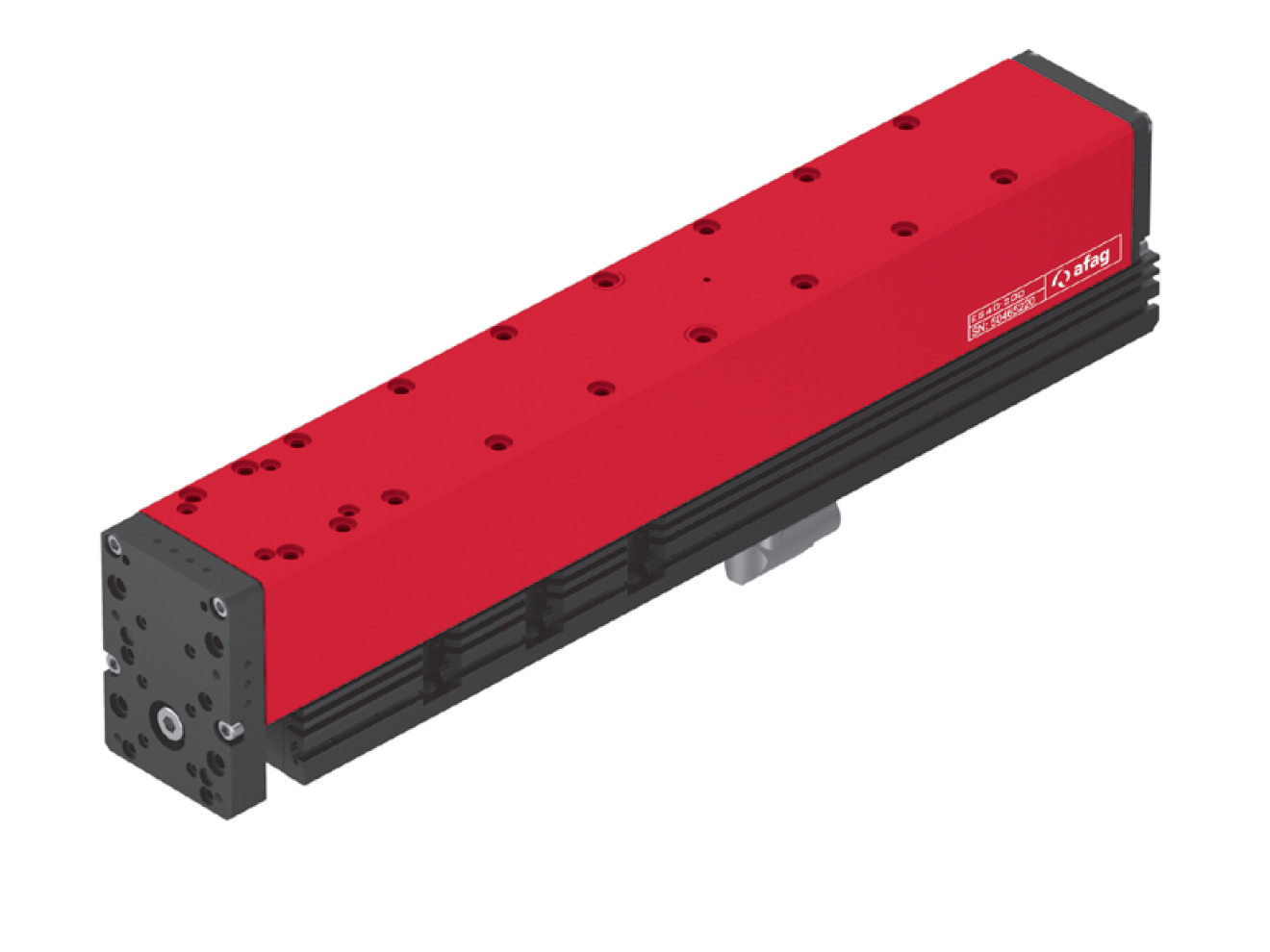

  • ES40
Highlights...

Features

  • Drive: linear, electric
  • Attachment grid:
    • ES12/20: 30mm x 30 mm
    • ES30: 48mm x 48mm
    • ES40: 60mm. x 60mm
  • Attachment thread:
    • ES12/20: M4
    • ES30: M6
    • ES40: M8
  • Peak force:
    • ES12: 10.7N
    • ES20: 137N
    • ES30: 255N
    • ES40: 550N
  • Repeat accuracy: down to +/- 0.02mm
  • Max speed:
    • ES20: 4.8m/s
    • ES30: 3.2m/s
    • ES40: 1.8m/s
  • Stroke H:
    • ES12: 20 to 100mm
    • ES20: 50 to 300mm
    • ES30: 50 to 500mm
    • ES40: 100 to 500mm
  • Operating temperature: 10 to 40°C
  • Humidity: < 90 %
  • Nominal voltage:
    • ES12: < 75 VDC
    • ES20/30/40: 72VDC
  • IP30 protections
  • Compact electrical slide
  • Freely programmable
  • Modular

The Aventics ES Series Electro Slide is designed for reliable and highly precise performance in industrial automation systems. ES Series slide drives directly integrate a complete, functional safety package without the need for additional hardware. The linear motor variants include a safety position sensor system. The compact design optimizes on space, and the high speeds of the ES Series optimizes productivity. The ES Series slides are freely programmable, with a powerful cantilever axis. This product line is ideal for high dynamic requirements across various motion control applications.
