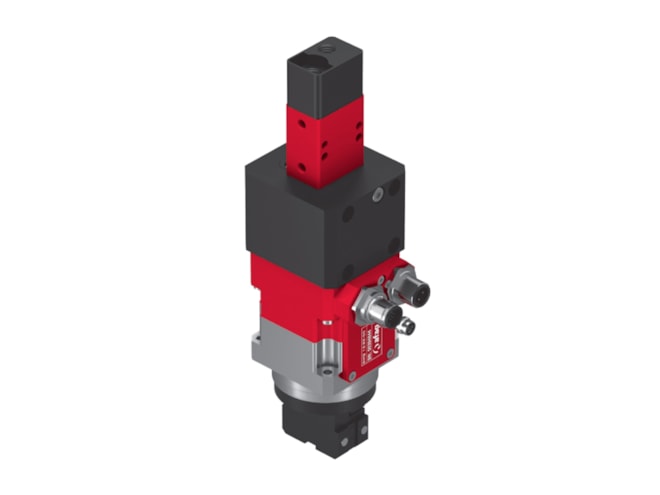

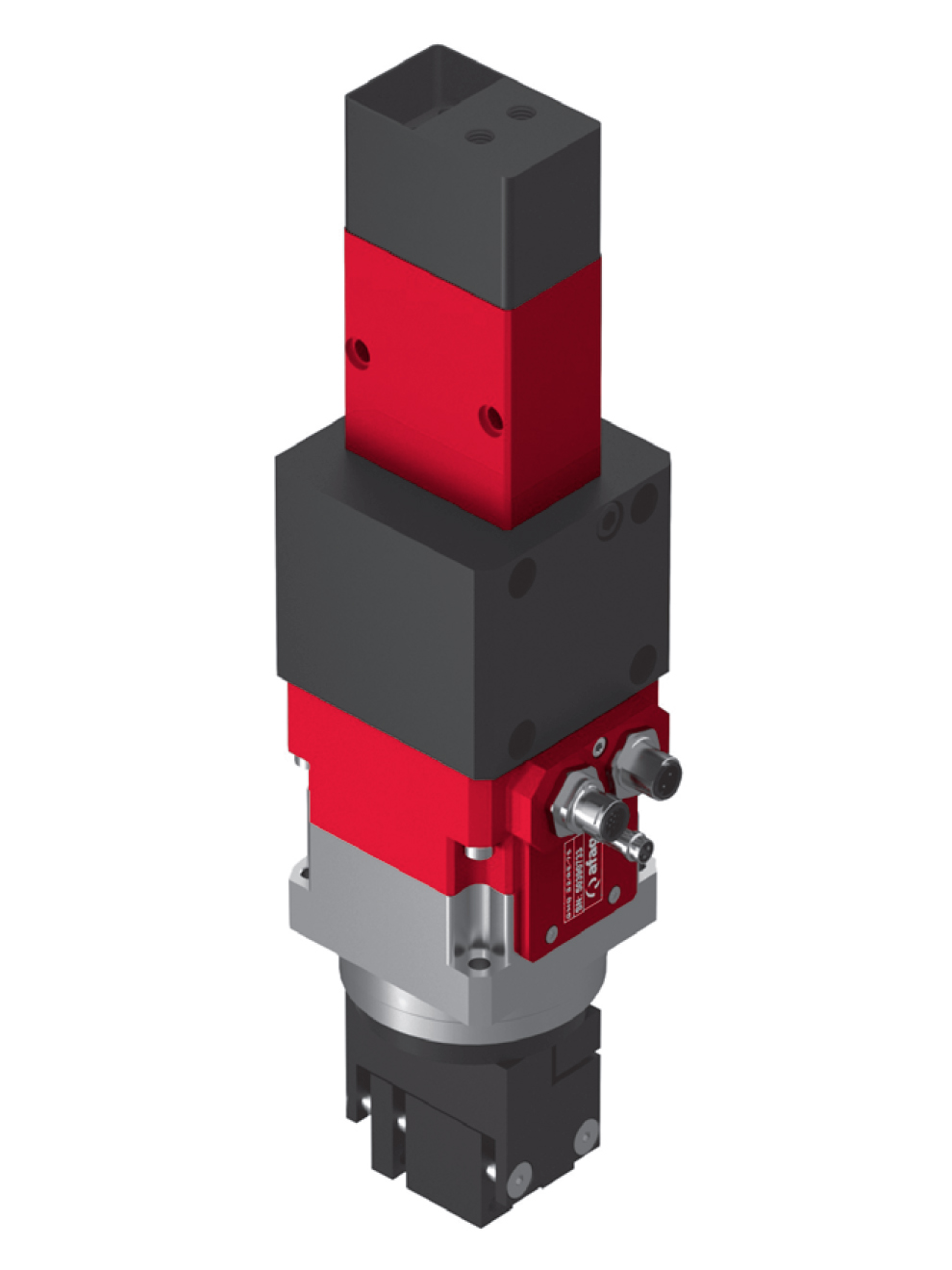

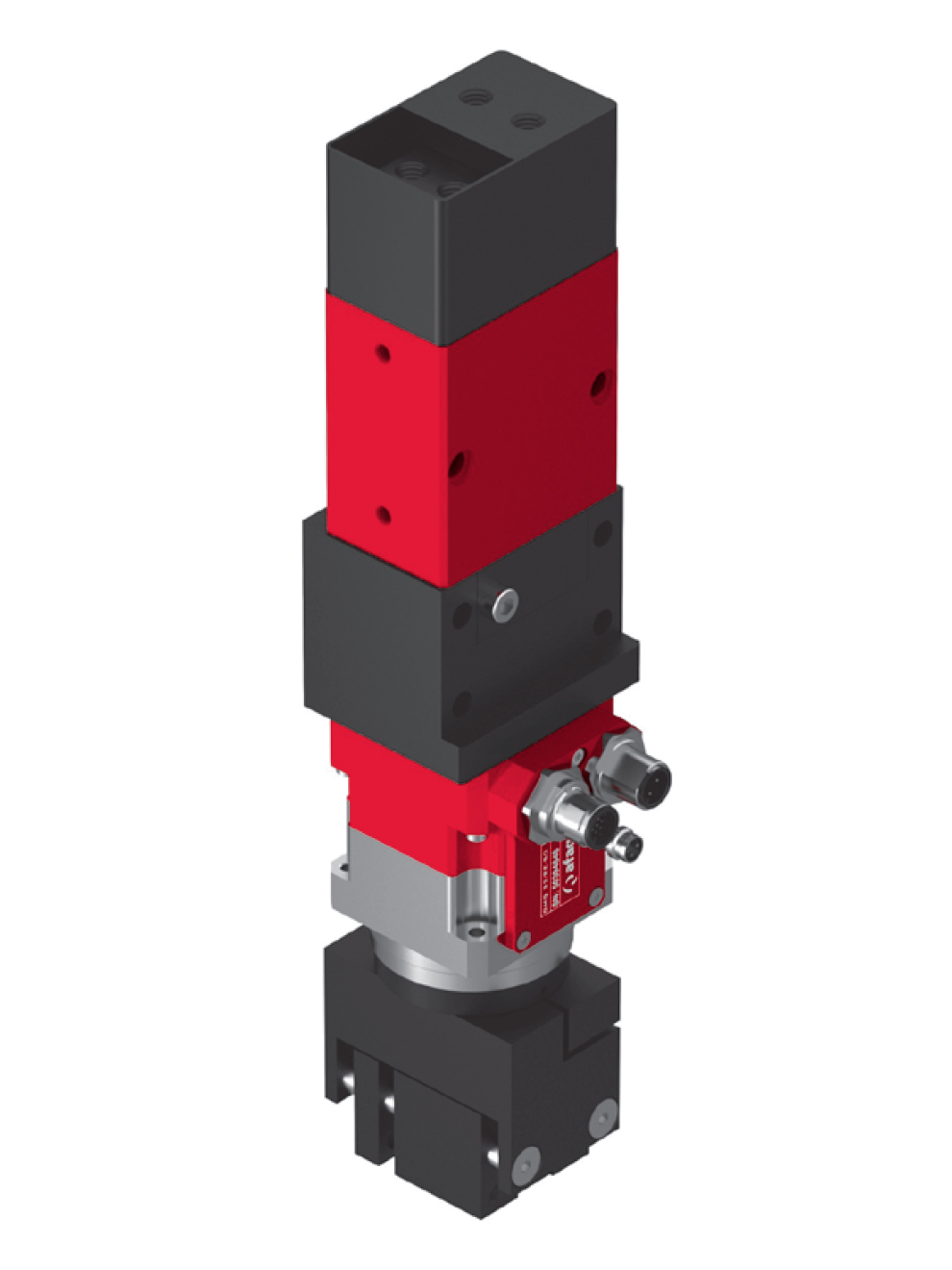

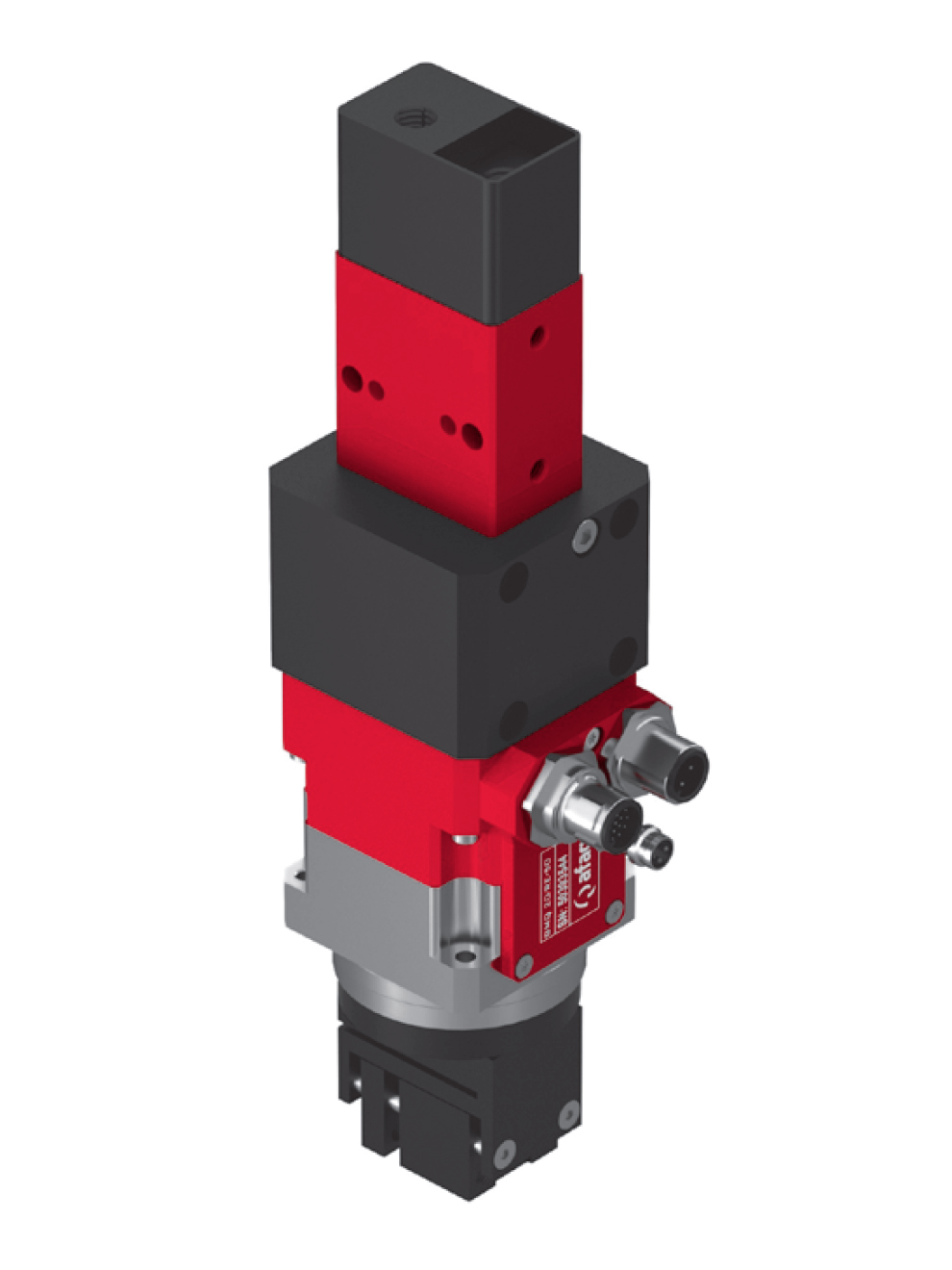

Aventics GMQ / RE Series Rotary Gripper

RE gripper module with rotation in any position. Modular isolation of rotation from actuator allows for fully stationary tubes and cables. 12 to 32mm piston diameters.

Call for pricing
Part Numbers
  • GMQ RE Series
  • GMQ
  • GMQ/RE
  • GMQ 12/RE
  • GMQ 20/RE
  • GMQ 32/RE
Highlights...

Features

  • Actuator piston diameter: 12, 20, 32mm
  • Rotation module sizes: 50, 75
  • Humidity: < 90%
  • Operating pressure: 6 +/- 2 bar
  • Operating temperature: 0 to 50°C
  • Modular combinations
  • No moving tubes or cables
  • Grippers can be rotated in any position

What's in the Box

  • 2x Centering bushing
  • *Size of included components depend on configuration

The Aventics GMQ / RE Series Rotary Gripper is a reliable, highly versatile solution for precision gripping and rotating tasks in a wide variety of automated industrial processes. This gripper module series includes a gripper actuator, and the RE rotation module. These two isolated units are attached via an adapter unit, eliminating any rotational movement of connected tubes or wiring. The grippers themselves are attached to the front end of the GMQ / RE Series rotation module, which allows them to rotate in any position. The rotation modules are extremely slender, all but eliminating interfering contours.
