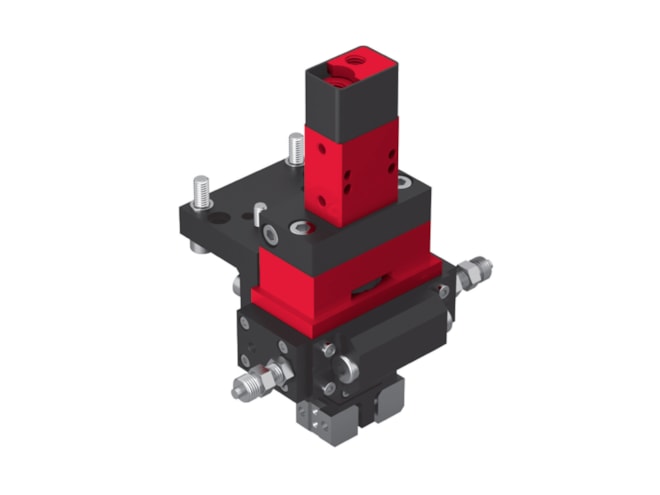

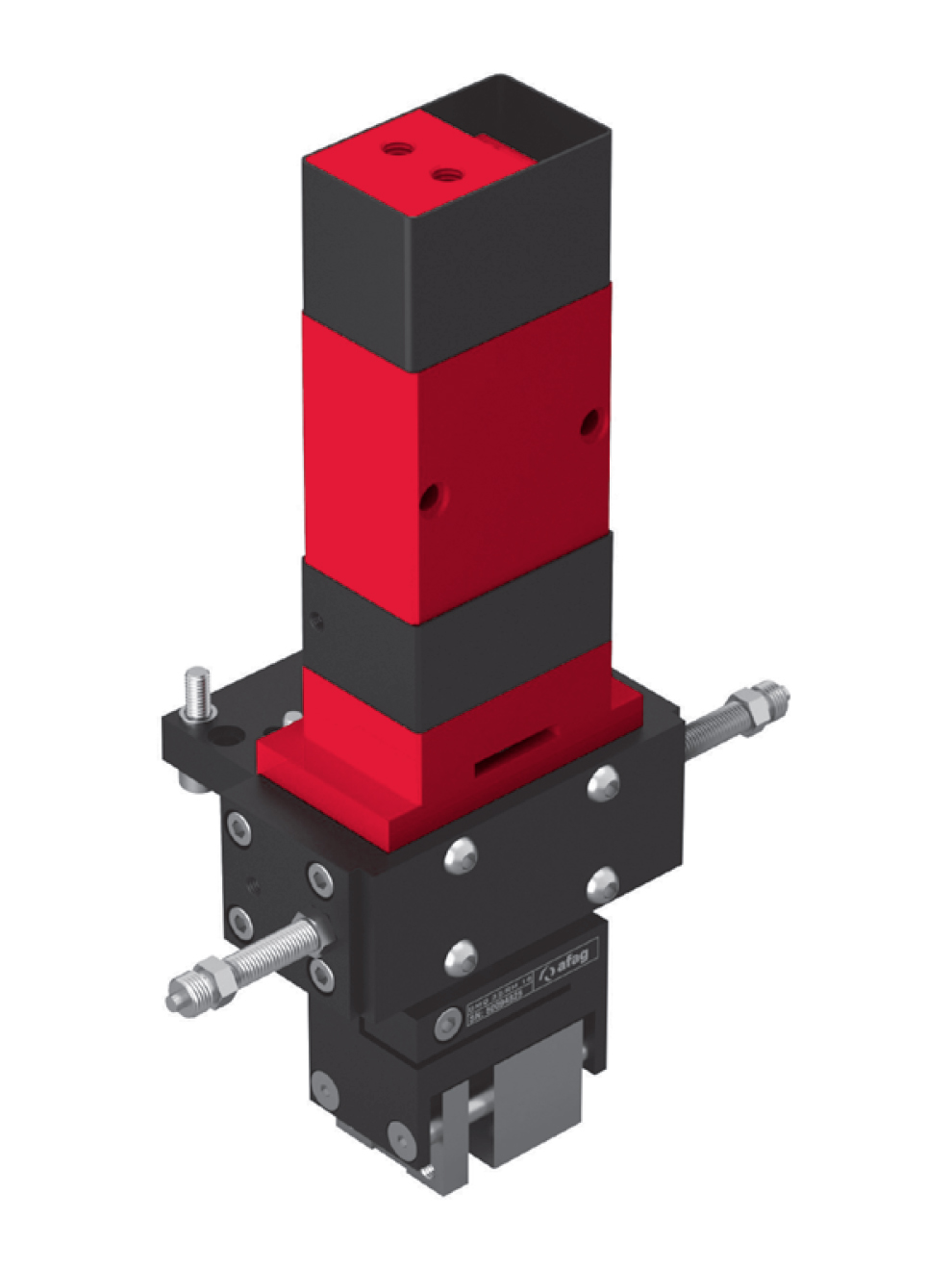

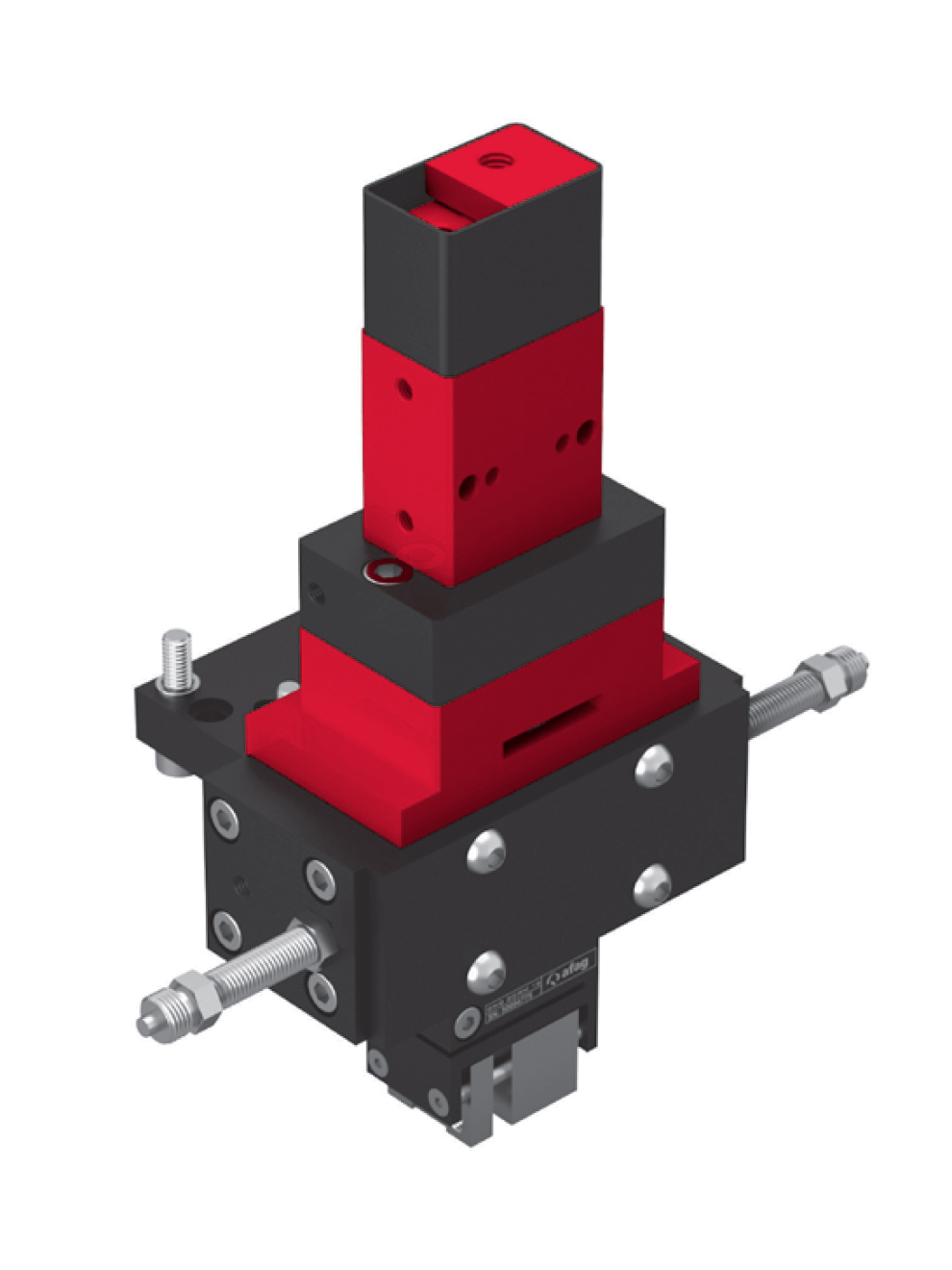

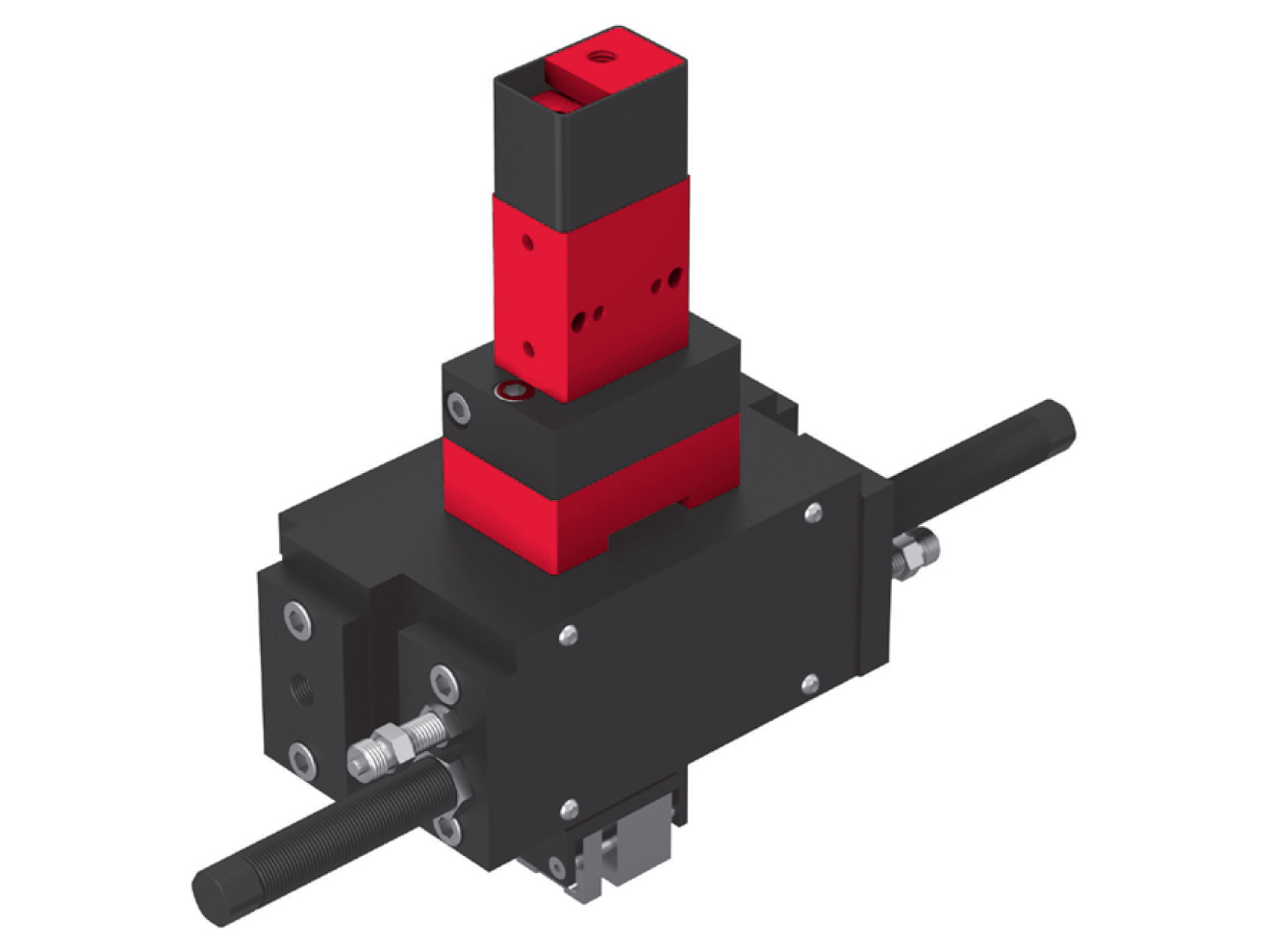

Aventics GMQ / RM Series Rotary Gripper

RM Gripper module with rotation in any position. Modular isolation of rotation from actuator allows for fully stationary tubes and cables. 12 to 32mm piston diameters.

Call for pricing
Part Numbers
  • GMQ RM Series
  • GMQ
  • GMQ/RM
  • GMQ 12/RM
  • GMQ 20/RM
  • GMQ 32/RM
Highlights...

Features

  • Actuator piston diameter: 12, 20, 32mm
  • Rotation module sizes: 12, 16, 25
  • Humidity: < 90%
  • Operating pressure: 6 +/- 2 bar
  • Operating temperature: 0 to 50°C
  • Modular combinations
  • No moving tubes or cables
  • Grippers can be rotated in any position

What's in the Box

  • Centering bushing
  • Mounting screws
  • Ribbed washers
  • Angle plate VW 302
  • *Quantity and size of included components depend on configuration

The Aventics GMQ / RM Series Rotary Gripper is a reliable, highly versatile solution for precision gripping and rotating tasks in a wide variety of automated industrial processes. This gripper module series includes a gripper actuator, and the RM rotation module. These two isolated units are attached via an adapter unit, eliminating any rotational movement of connected tubes or wiring. The grippers themselves are attached to the front end of the GMQ / RM Series rotation module, which allows them to rotate in any position.
