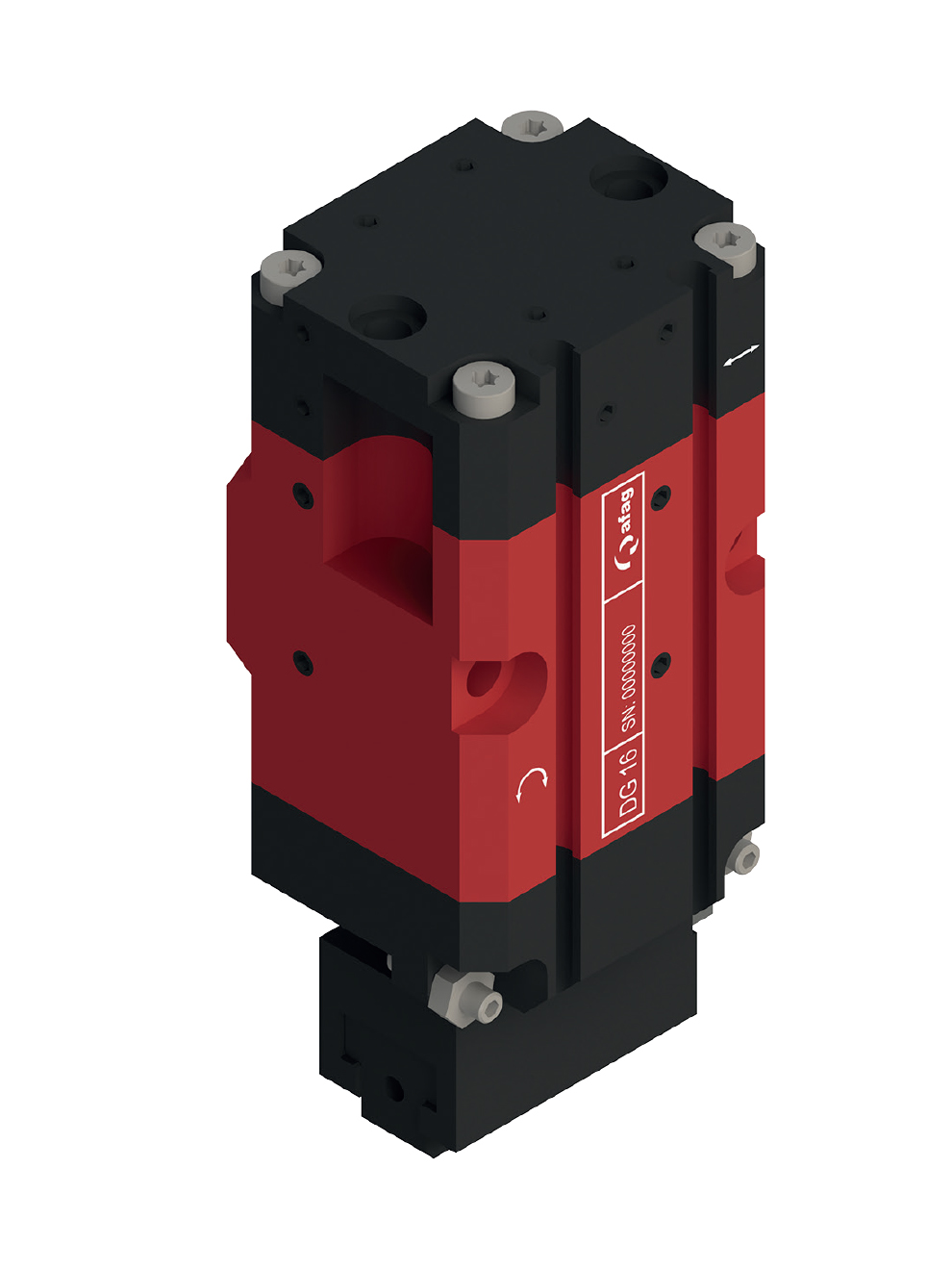

Aventics DG Series Rotary Gripper

Linear motion gripper module with precise jaw guidance, up to 60N gripping force, and a highly compact design for space saving installation.

Call for pricing
Part Numbers
  • DG Series
  • DG 16
  • DG 20
Highlights...

Features

  • Attachment grid:
    • DG 16: 30mm
    • DG 20: 38mm
  • Air Connection P:
    • DG 16: M3
    • DG 20: M5
  • Humidity: < 90%
  • Maximum gripping force:
    • DG 16: 35N
    • DG 20: 60N
  • Repeat accuracy: down to +/- 0.03mm
  • Operating pressure: 6 +/- 1bar
  • Operating temperature: 10 to 40°C
  • Zero position 90° variants available
  • Shortest rotating gripper within its performance class
  • Diverse air connections
  • Precise jaw guidance

What's in the Box

  • Centering bushing
  • Mounting screws
  • Set screws
  • *Quantity and size of included components depend on configuration

The Aventics DG Series Rotary Gripper is a reliable solution for precision in handling and linear motion of gripped objects. This line of grippers offers high precision jaw guidance, with maximum gripping forces available up to 35N in the DG 16 model, and up to 60N in the DG 20. The DG Series boasts the shortest rotating gripper in its performance class, offering a compact, efficient motion control solution for a variety of industrial applications.
