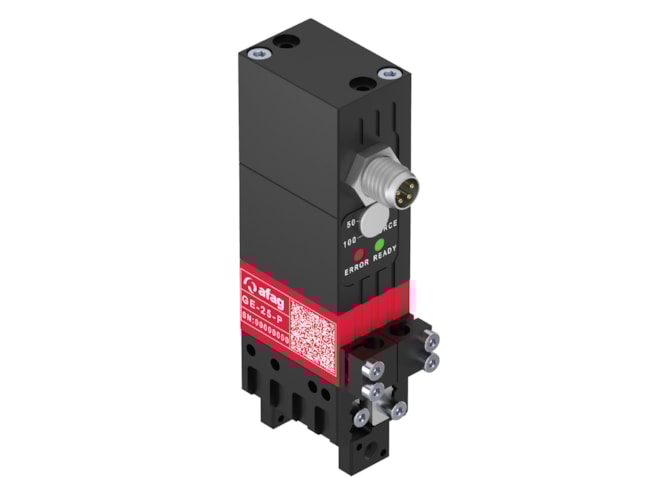

Aventics GE-25-P Series Electric Gripper

Electrical 2-finger parallel gripper module with roller guided base jaw guide. Two-stage gripping force up to 40N, with rapid open and closing times.

Call for pricing
Part Number
  • GE-25-P Series
Highlights...

Features

  • Attachment grid: 20mm
  • Attachment thread: M3
  • Humidity: < 90%
  • Maximum gripping force: 40N
  • Minimum gripping force: 20N
  • Repeat accuracy: down to +/- 0.02mm
  • Communication interface: digital inputs
  • Integrated controller electronics
  • Supply voltage: 21.6/26.4VDC
  • Operating / storage temperature: 5 to 55°C
  • IP 30, IP 40 protection class

What's in the Box

  • 2x Centering bushing Ø5x2.5
  • 2x Special screw M3x23 5/6

The Aventics GE-25-P Series Electric Gripper allows for gripping and handling of small and medium-sized workpieces using adjustable force and high speeds. This module is controlled via digital I/O for easy adjustment and integration into existing handling and positioning systems, including general assembly automation, automotive and watch manufacturing, healthcare cosmetics and packaging applications. The GE-25-P Series offers two-stage gripping force from 20N up to 40N. The high number of cycles per minute optimizes productivity with closing/opening times of 0.09 seconds. This product line includes play-free, pre-clamped crossed roller slides for precise and all but constant force grip along the entire permissible finger length.
