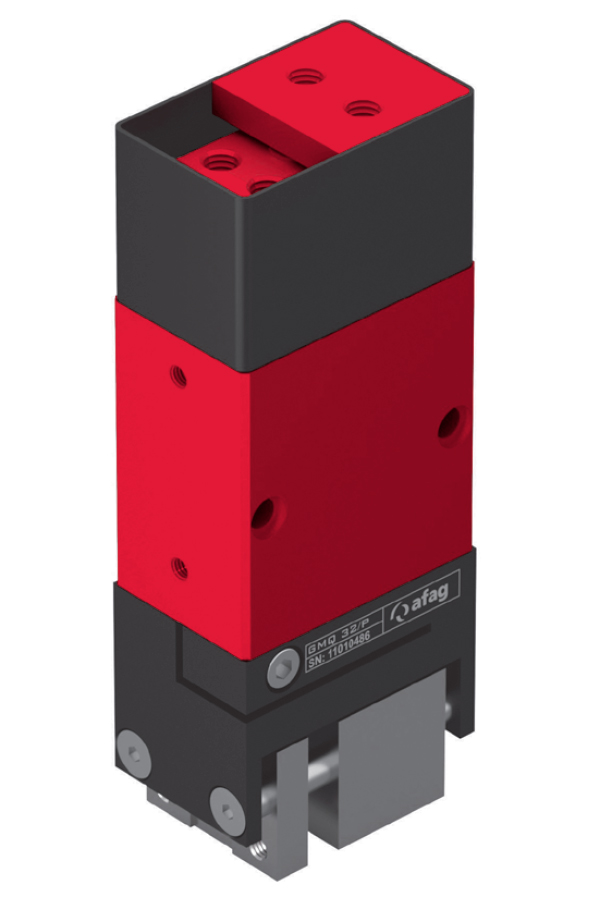

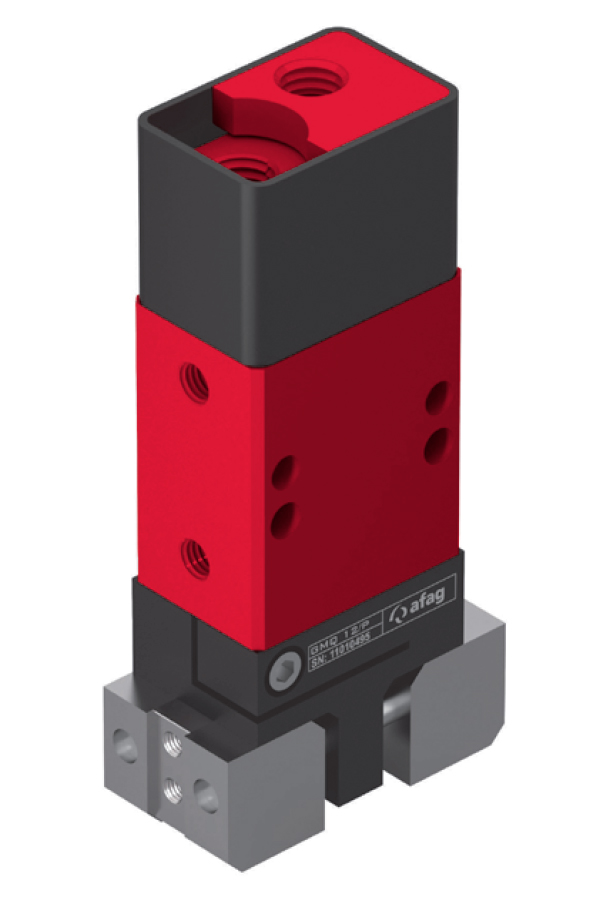

Aventics GMQ Series Gripper

Lightweight rotary gripper modules for various positioning applications, with +/- 0.01mm repeat accuracy. Drive combinable, grip force up to 235N.

Call for pricing
Part Numbers
  • GMQ Series
  • GM 12
  • GM 20
  • GM 32
  • GMQ 12
  • GMQ 20
  • GMQ 32
Highlights...

Features

  • Attachment grid:
    • GMQ 12: 20mm
    • GMQ 20: 30mm
    • GMQ 32: 48mm
  • Operating pressure: 6 +/- 2bar
  • Air connection P: M5
    • GMQ 32: G1/8
  • Cylinder diameter:
    • GMQ 12: 12mm
    • GMQ 20: 20mm
    • GMQ 32: 32mm
  • Gripping force:
    • GMQ 12: up to 15N
    • GMQ 20: up to 60N
    • GMQ 32: up to 235N
  • Repeat accuracy: down to +/- 0.01mm
  • Operating / storage temperature: 0 to 50°C

What's in the Box

  • 2x Centering pin
  • 4x Mounting screw (2x with GMQ 32)
  • 2x Washer
  • *sizing/diameter of included components depends on Gripper model

The Aventics GMQ Series Gripper are a series of parallel and swivelling gripper units designed to help facilitate reliable gripping and lifting of a wide range of objects in automated handling systems, with down to +/- 0.01mm repeat accuracy. This gripper line is compact and lightweight for easy integration, and its drive is combinable with different gripper modules.  Cylinder diameter ranges from 12 to 32mm, with an attachment grid from 20 to 48mm. Gripping forces are available up to 235N (dependent on configuration).
