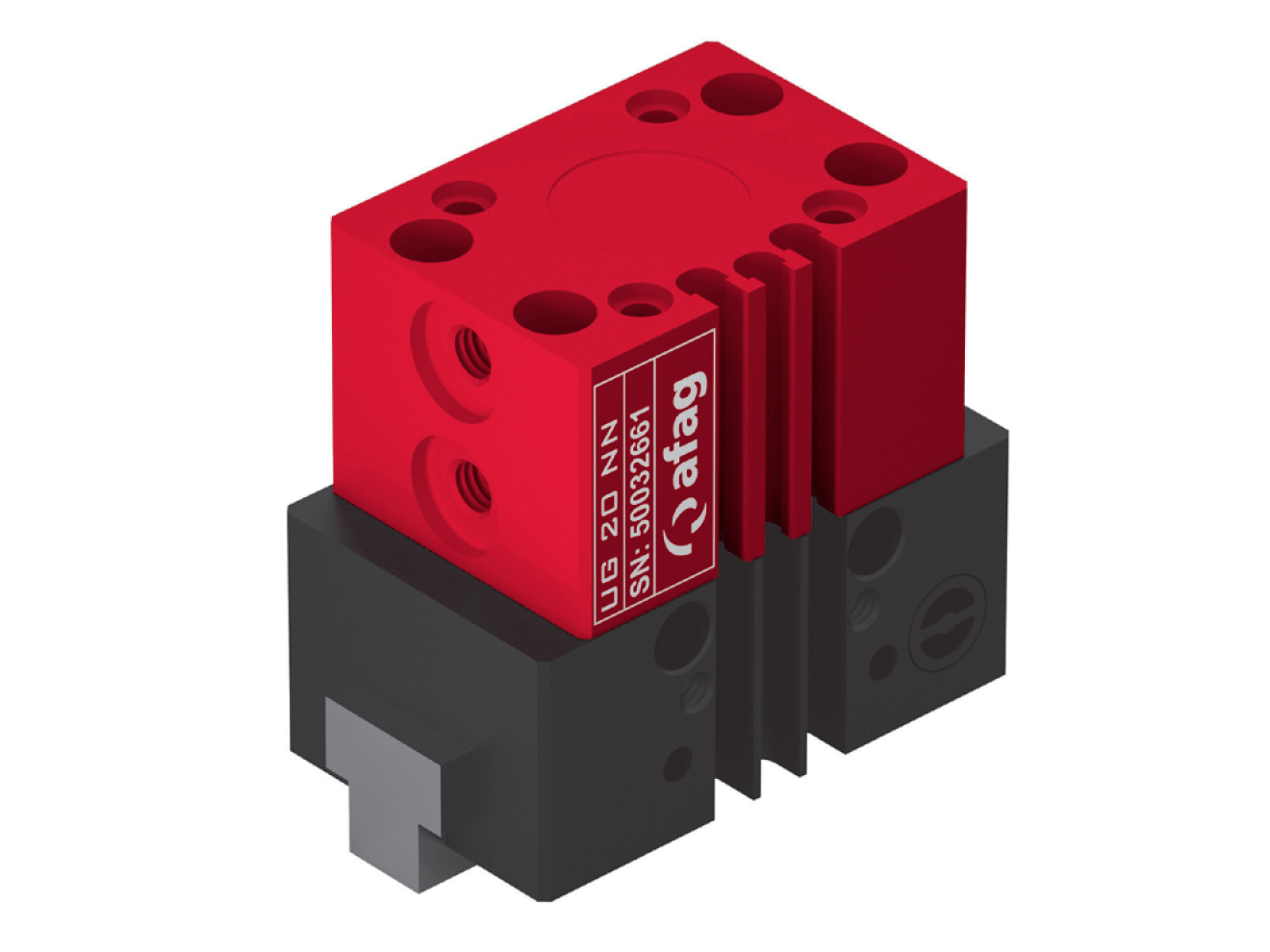

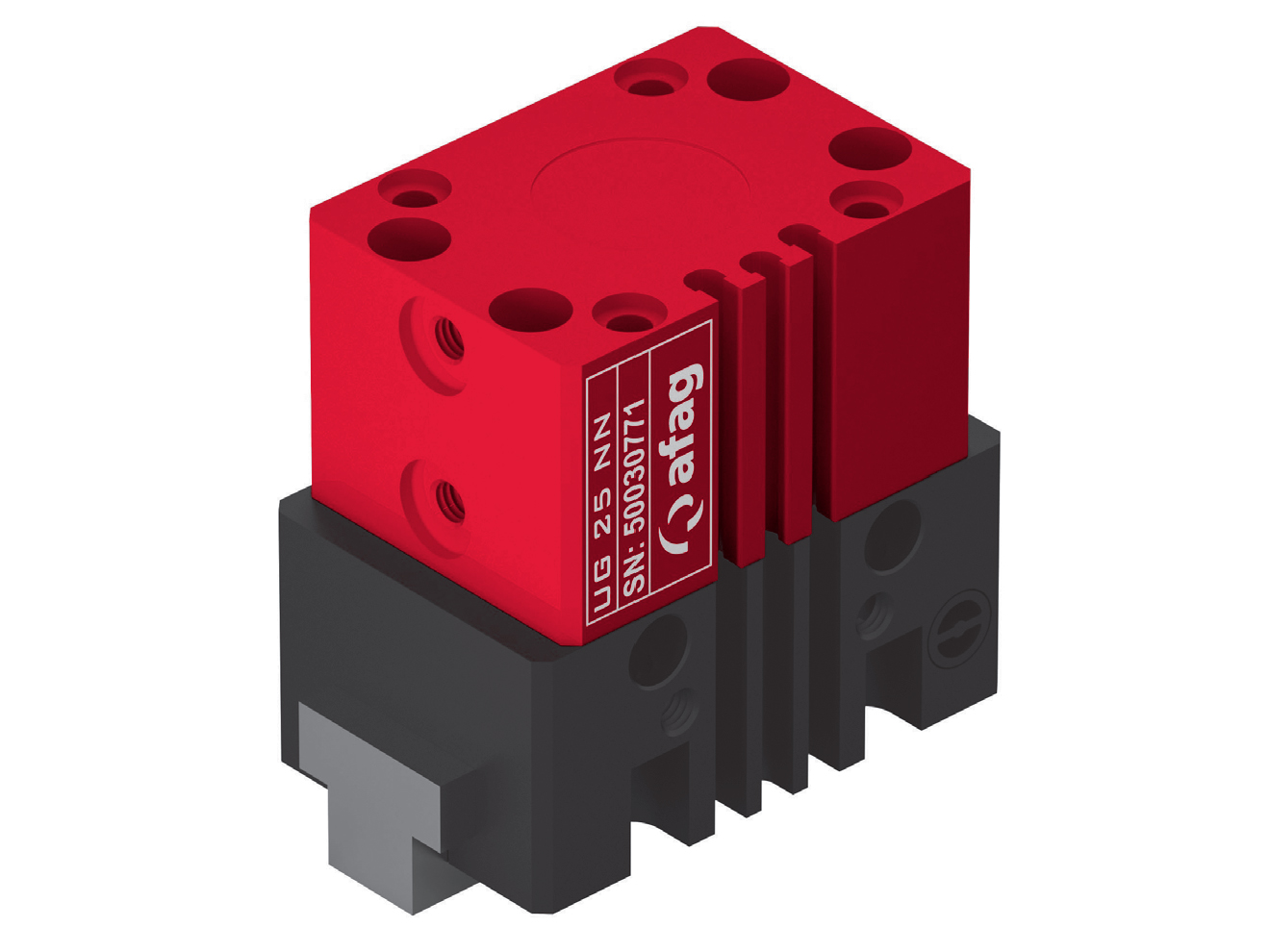

Aventics UG Series Universal Gripper

Compact universal gripper for various objects in any position, with +/- 0.02mm repeat accuracy. Third sensor offers part recognition.

Call for pricing
Part Numbers
  • UG Series
  • UG 20
  • UG 25
Highlights...

Features

  • Attachment grid:
    • UG 20: 20mm x 20mm
    • UG 25: 30mm x 30mm
  • Mounting holes:
    • UG 20: 3.2mm
    • UG 25: 4.3mm
  • Operating pressure: 6 +/- 2bar
  • Air connection P: M5
  • Cylinder diameter:
    • UG 20: 20mm
    • UG 25: 25mm
  • Gripping force, opening:
    • UG 20: up to 226N
    • UG 25: up to 407N
  • Gripping force, closing:
    • UG 20: up to 180N
    • UG 25: up to 366N
  • Repeat accuracy: +/- 0.02mm
  • Operating / storage temperature: 0 to 50°C

What's in the Box

  • 2x Centering bushing
  • 2x Mounting screw
  • 4x Mounting screw
  • *sizing/diameter of included components depends on Gripper model

The Aventics UG Series Universal Gripper is designed to help facilitate reliable gripping and lifting of a wide range of objects in automated handling systems, with +/- 0.02mm repeat accuracy. This gripper line is compact and lightweight for easy integration. The third sensor allows for part recognition, and when paired with other modules can be configured as part of a pick-and-place station. Cylinder diameter ranges from 20 to 25mm, with an attachment grid from 20 to 30mm. Opening and closing gripping forces are available up to 407N, and 366N respectively (dependent on configuration).
