Aventics PG Series Precision Gripper

Highyl compact gripper with +/- 0.05mm handling accuracy, with various cylinder diameters and gripping forces to meet specific positioning task needs.

Call for pricing
Part Numbers
  • PG Series

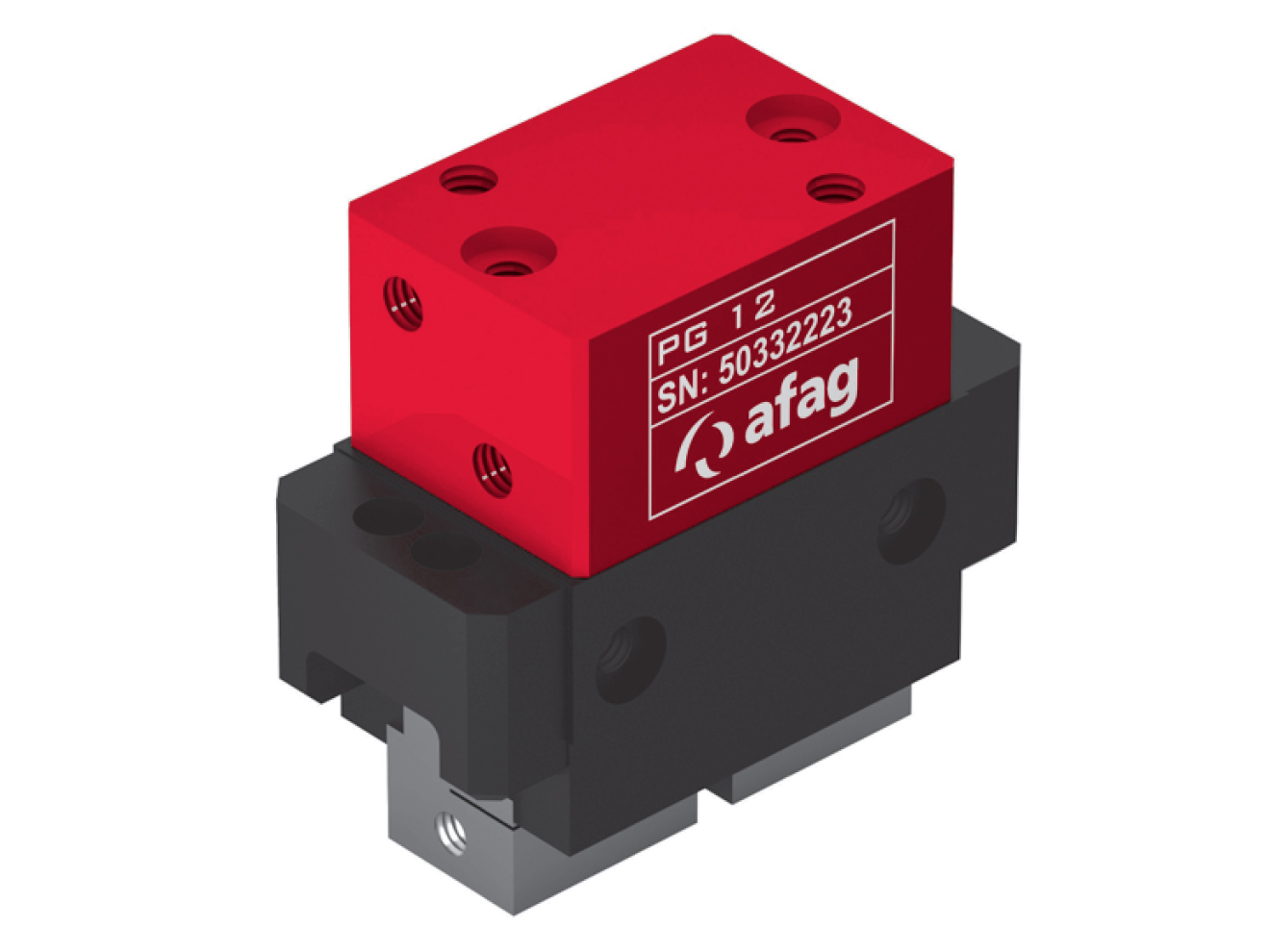

  • PG 12

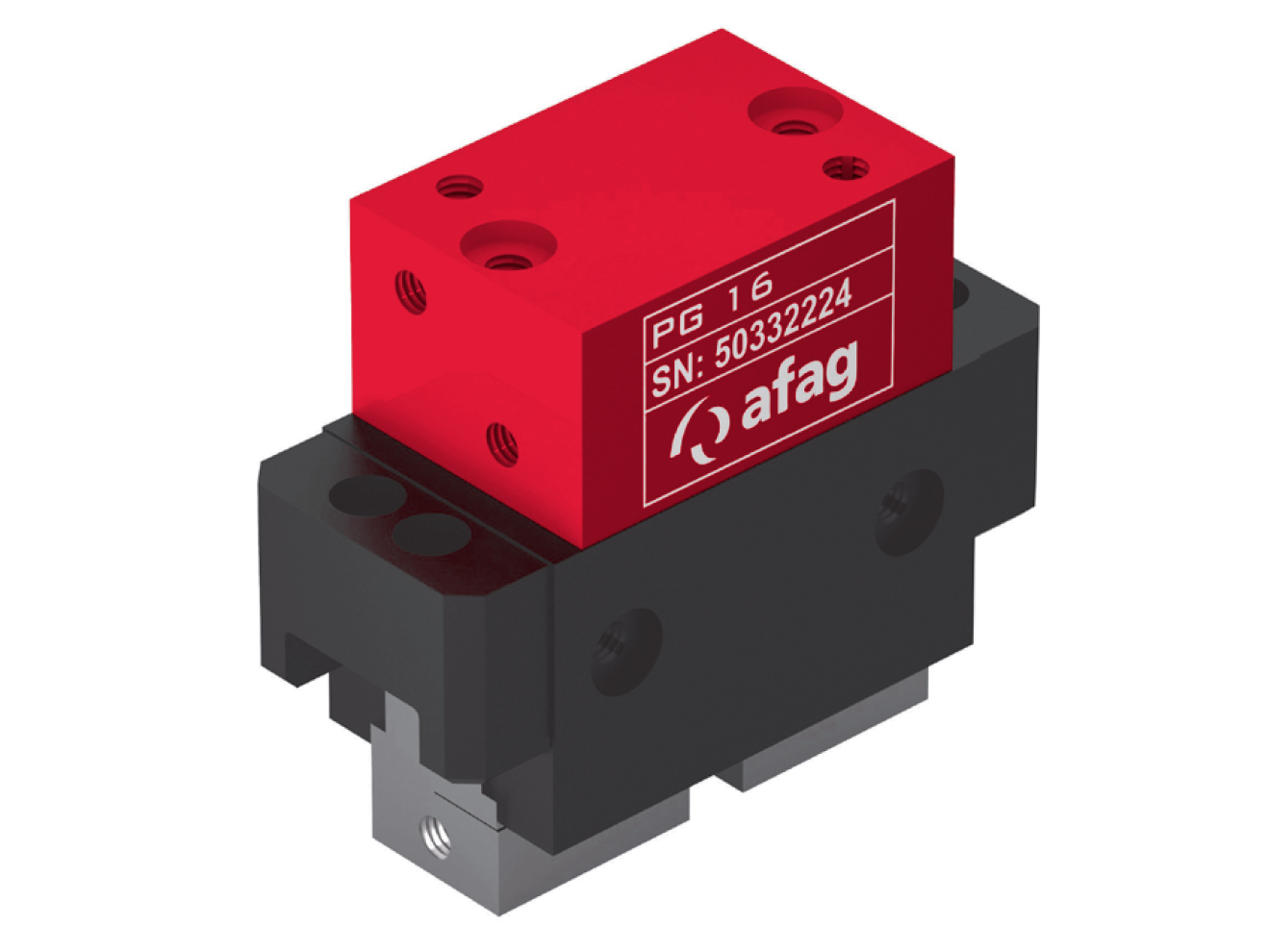

  • PG 16

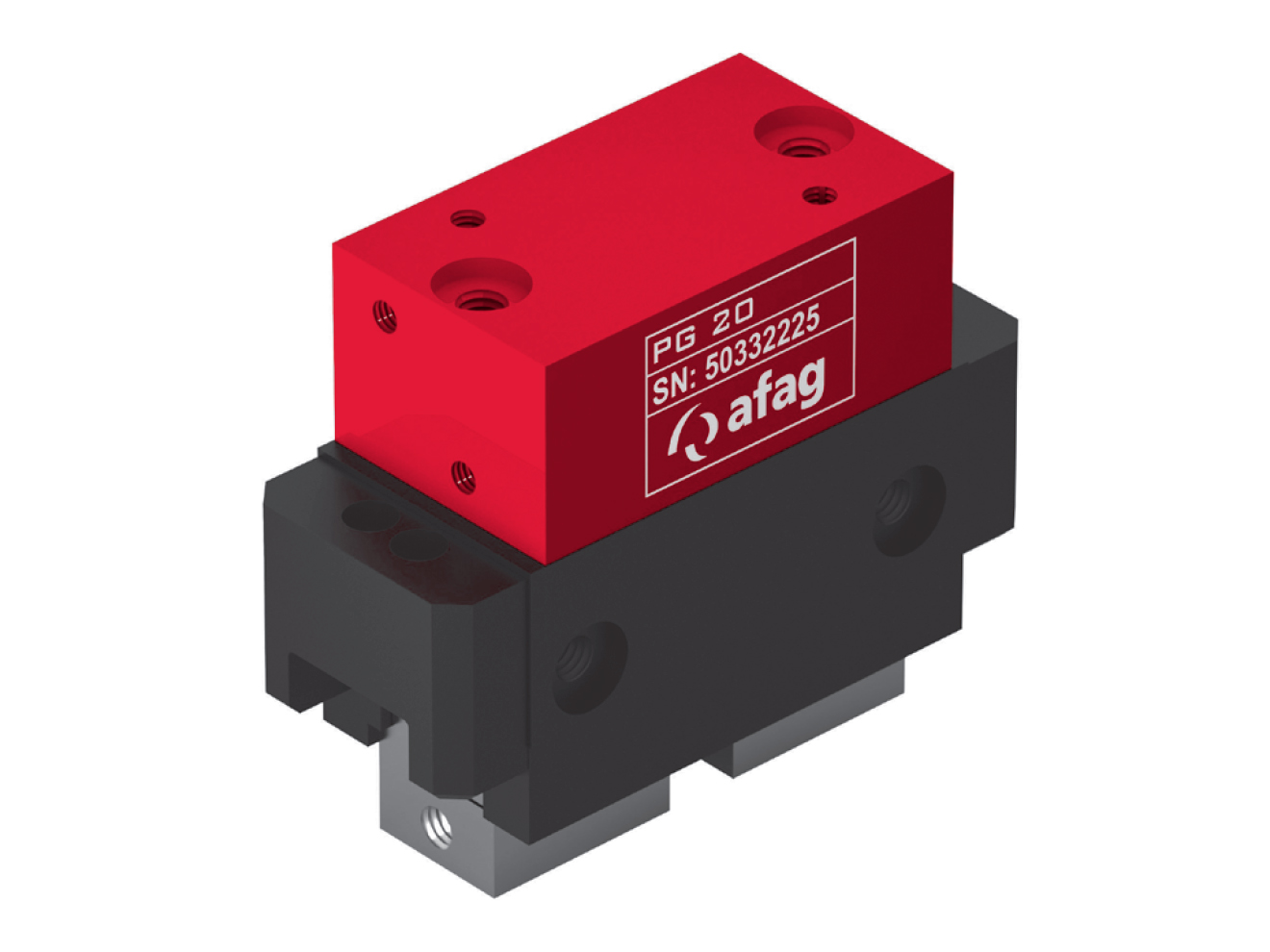

  • PG 20
Highlights...

Features

  • Highly precise jaw guidance
  • Miniature design
  • Attachment grid:
    • PG 12: 16mm
    • PG 16: 20mm
    • PG 20: 30mm
  • Attachment grid alternative:
    • PG 12: M2.5
    • PG 16: M3
    • PG 20: M4
  • Operating pressure: 6 +/- 2bar
  • Air connection P:
    • PG 12/16: M3
  • Cylinder diameter:
    • PG 12: 11mm
    • PG 16: 16mm
    • PG 20: 20mm
  • Gripping force, opening:
    • PG 12: 46N
    • PG 16: up to 100N
    • PG 20: 136N
  • Gripping force, closing:
    • PG 12: 36N
    • PG 16: up to 92N
    • PG 20: 108N
  • Handling accuracy: +/- 0.05 mm
  • Operating / storage temperature: 0 to 50°C

What's in the Box

  • 2x Centering bushing (diameter dependent on model)

The Aventics PG Series Precision Gripper is designed to help facilitate reliable linear motion in automated handling systems, with +/- 0.05mm handling accuracy. This gripper line is highly compact, and durably constructed for easy integration and straightforward functionality across various industrial motion control systems. Cylinder diameter ranges from 11 to 20mm, with an attachment grid from 16 to 30mm. Opening and closing gripping forces are available up to 136N, and 108N respectively.
