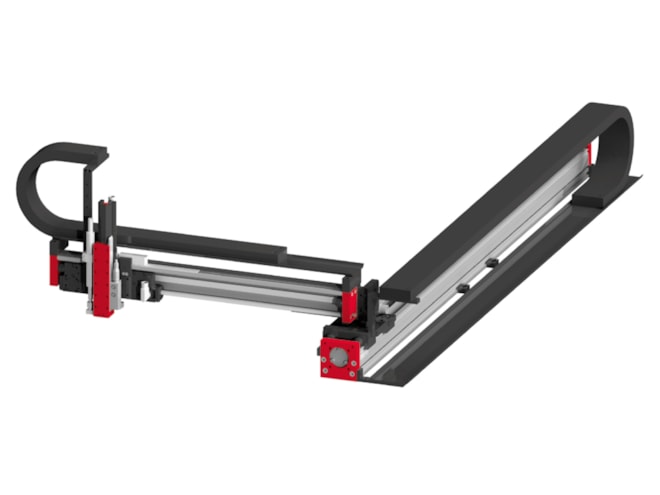

Aventics EPS mini gantry s Series Electric Actuator

Electric gantry actuator with repeat accuracy within ± 0.05mm and lateral boom up to 640mm stroke length. Compact design, ideal for low mass palletizing tasks.

Call for pricing
Part Number
  • mini gantry s
Highlights...

Features

  • Drive type: electrical, linear motor
  • Peak force: up to 1024N
  • Maximum speed: 2m/s
  • Repeat accuracy ± 0.05mm
    • With external path measuring system (1μm) ± 0.02mm
  • Lateral boom up to 640mm stroke length
  • Compact system
  • Operating temperature range: 0 to 50°C
  • Control block with 5/3, 5/2 or vacuum units: up to 6 valves
  • Ideal for low mass palletizing applications

What's in the Box

  • 2x Ø 5h6 Centering sleeves
  • 2x Ø 7h6 Centering sleeves
  • MagSpring or compensation spring
  • Hose or drag chain
  • Motor cable
  • Gantry bracing
  • Attachment blocs
  • * Deviations possible depending on installed peripherals

The Aventics EPS mini gantry s Series Electric Actuator is an electric, linear actuator designed for reliable and precise performance across a range of industrial positioning applications, thanks to the advanced technology and durable construction. Stroke lengths are incremental from 50 up to 1660mm, with a maximum speed of 2m/s. This product line is built for peak forces up to 1024N, with lateral booms up to 640mm stroke length. This gantry system has repeat accuracy within 0.05mm, which can be further refined down to .02mm with an external path measuring system. The EPS mini gantry s Series is a compact, space-saving electric actuation solution ideal for low mass palletizing tasks and adjacent handling applications.
