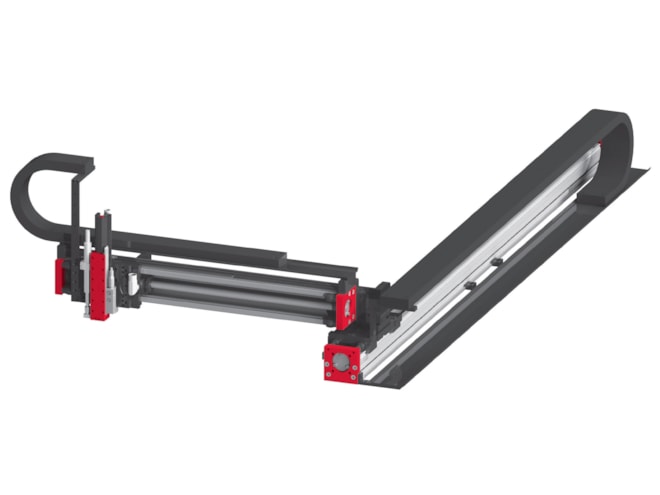

Aventics EPS midi gantry s Series Electric Actuator

Electric gantry actuator with repeat accuracy within ± 0.05mm and lateral boom up to 630mm stroke length. Double guide on Y-axis, portal axes with high force.

Call for pricing
Part Number
  • midi gantry s
Highlights...

Features

  • Drive type: electrical, linear motor
  • Peak force: up to 1024N
  • Maximum speed: 2m/s
  • Repeat accuracy ± 0.05mm
    • With external path measuring system (1μm) ± 0.02mm
  • Lateral boom up to 630mm stroke length
  • Stiff Y-axis with double guide
  • Portal axes with high force
  • Operating temperature range: 0 to 50°C
  • Control block with 5/3, 5/2 or vacuum units: up to 6 valves

What's in the Box

  • 2x Ø 5h6 Centering sleeves
  • 2x Ø 7h6 Centering sleeves
  • MagSpring or compensation spring
  • Hose or drag chain
  • Motor cable
  • Gantry bracing
  • Attachment blocs
  • * Deviations possible depending on installed peripherals

The Aventics EPS midi gantry s Series Electric Actuator is an electric, linear actuator designed for reliable and precise performance across a range of industrial positioning applications, thanks to the advanced technology and durable construction. Stroke lengths are incremental from 50 up to 1660mm, with a maximum speed of 2m/s. This product line is built for peak forces up to 1024N, with lateral booms up to 630mm stroke length. The Y-axis features a double guide, bolstering module stiffness and precision. This gantry system has repeat accuracy within 0.05mm, which can be further refined down to .02mm with an external path measuring system. The EPS midi gantry s Series is a versatile electric actuation solution for motion control and/or handling applications.
