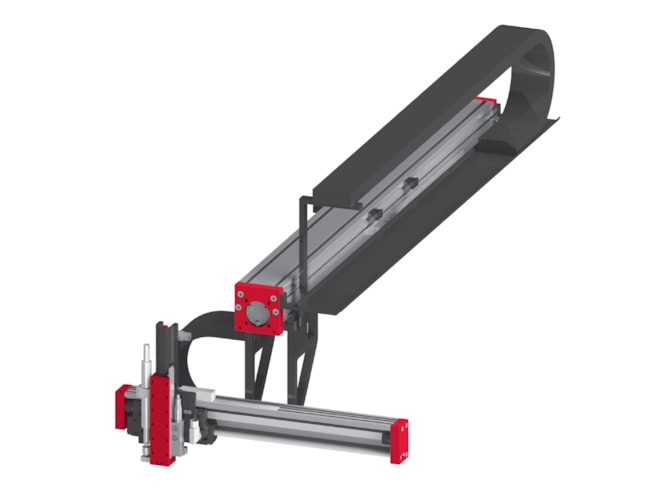

Aventics EPS mini gantry h Series Electric Actuator

Electric gantry actuator with repeat accuracy within ± 0.05mm and Y-stroke length up to 640mm. Highly compact, designed for installation above working areas.

Call for pricing
Part Number
  • mini gantry h
Highlights...

Features

  • Drive type: electrical, linear motor
  • Peak force: up to 550N
  • Maximum speed: 3m/s
  • Repeat accuracy ± 0.05mm
    • With external path measuring system (1μm) ± 0.02mm
  • Y-stroke up to 640mm
  • Operating temperature range: 0 to 50°C
  • Control block with 5/3, 5/2 or vacuum units: up to 6 valves
  • For assembly above working areas

What's in the Box

  • 2x Ø 5h6 Centering sleeves
  • 2x Ø 7h6 Centering sleeves
  • MagSpring or compensation spring
  • Hose or drag chain
  • Motor cable
  • Gantry bracing
  • Attachment blocs
  • * Deviations possible depending on installed peripherals

The Aventics EPS mini gantry h Series Electric Actuator is an electric, linear actuator designed for reliable and precise performance across a range of industrial positioning applications, thanks to the advanced technology and durable construction. Stroke lengths are incremental from 50 up to 1660mm, with a maximum speed of 3m/s. This product line is built for peak forces up to 550N. This gantry system allows for repeat accuracy within 0.05mm, which can be further refined down to .02mm with an external path measuring system. The EPS mini gantry h Series is a compact electric actuation solution that increases space access, designed for installation above working areas.
