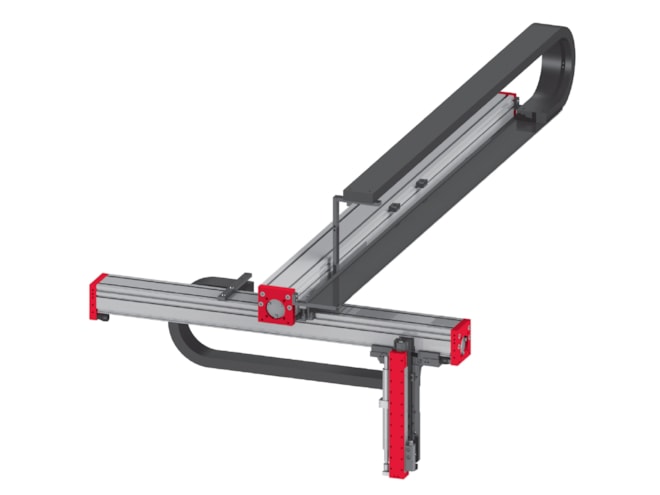

Aventics EPS midi gantry h Series Electric Actuator

Electric gantry actuator with repeat accuracy within ± 0.05mm and lateral boom up to 1300mm stroke length. High stiffness thanks to X- and Y-axis double guides.

Call for pricing
Part Number
  • midi gantry h
Highlights...

Features

  • Drive type: electrical, linear motor
  • Peak force: up to 1024N
  • Maximum speed: 2m/s
  • Repeat accuracy ± 0.05mm
    • With external path measuring system (1μm) ± 0.02mm
  • Highly stiff module thanks to double guid for the X- and Y-axes
  • Lateral boom up to 1300mm stroke
  • Operating temperature range: 0 to 50°C
  • Control block with 5/3, 5/2 or vacuum units: up to 6 valves

What's in the Box

  • 2x Ø 5h6 Centering sleeves
  • 2x Ø 7h6 Centering sleeves
  • MagSpring or compensation spring
  • Hose or drag chain
  • Motor cable
  • Gantry bracing
  • Attachment blocs
  • * Deviations possible depending on installed peripherals

The Aventics EPS midi gantry h Series Electric Actuator is an electric, linear actuator designed for reliable and precise performance across a range of industrial positioning applications, thanks to the advanced technology and durable construction. Stroke lengths are incremental from 50 up to 1660mm, with a maximum speed of 2m/s. This product line is built for peak forces up to 1024N. This gantry system allows for repeat accuracy within 0.05mm, which can be further refined down to .02mm with an external path measuring system. The precision of the midi gantry h Series is bolstered by the module stiffness, thanks to the double guide along both the X and Y-axes. The EPS midi gantry h Series is a highly versatile electric actuation solution ideal for handling applications.
