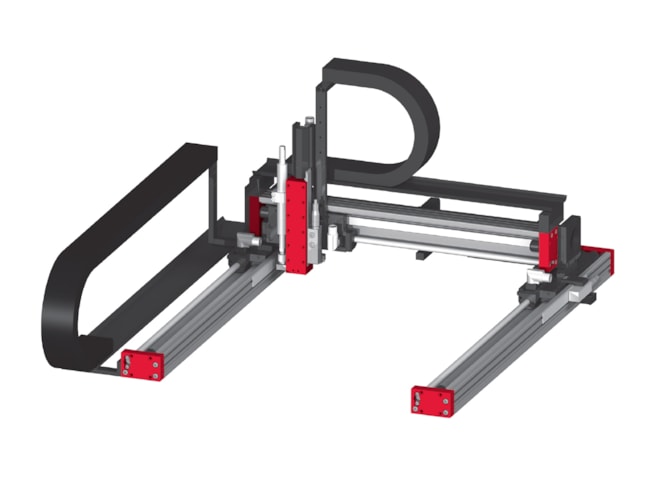

Aventics EPS mini gantry XXYZ Series Electric Actuator

Electric gantry actuator with repeat accuracy within ± 0.05mm and stroke length up to 640mm. Simultaneous movement along the lightweight X, Y and Z-axes.

Call for pricing
Part Number
  • mini XXYZ gantry
Highlights...

Features

  • Drive type: electrical, linear motor
  • Peak force: up to 137N
  • Maximum speed: 4.8m/s
  • Repeat accuracy ± 0.05mm
    • With external path measuring system (1μm) ± 0.02mm
  • Lightweight axes
  • Z-stroke up to 300mm
  • Operating temperature range: 0 to 50°C
  • Control block with 5/3, 5/2 or vacuum units: up to 6 valves

What's in the Box

  • 2x Ø 5h6 Centering sleeves
  • 2x Ø 7h6 Centering sleeves
  • MagSpring or compensation spring
  • Hose or drag chain
  • Motor cable
  • Gantry bracing
  • Attachment blocs
  • * Deviations possible depending on installed peripherals

The Aventics EPS mini gantry XXYZ Series Electric Actuator is an electric, linear actuator designed for reliable and precise performance across a range of industrial positioning applications, thanks to the advanced technology and durable construction. Stroke lengths are incremental from 50 up to to 640mm, with a maximum speed of 4.8m/s. This product line is bult for peak forces up to 137N. This gantry system allows for repeat accuracy within 0.05mm, which can be further refined down to .02mm with an external path measuring system. The EPS midi gantry XXYZ Series is a highly versatile electric actuation solution ideal for precise palletizing tasks with low component weight.
