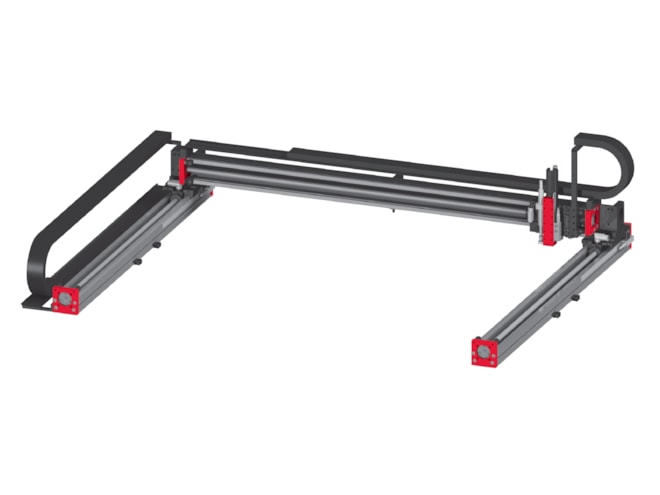

Aventics EPS midi gantry XXYZ Series Electric Actuator

Electric, linear actuator with high repeat accuracy within ± 0.05mm. High stiffness from the Y-axis double guide, with simultaneous movement along X, Y and Z-axes.

Call for pricing
Part Number
  • midi XXYZ gantry
Highlights...

Features

  • Drive type: electrical, linear motor
  • Peak force: up to 1024N
  • Maximum speed: 2m/s
  • Repeat accuracy ± 0.05mm
    • With external path measuring system (1μm) ± 0.02mm
  • High stiffness due to Y-axis double guide
  • X/Y-stroke up to 1660mm
  • Operating temperature range: 0 to 50°C
  • Control block with 5/3, 5/2 or vacuum units: up to 6 valves

What's in the Box

  • 2x Ø 5h6 Centering sleeves
  • 2x Ø 7h6 Centering sleeves
  • 2x Ø 9h7 Centering sleeves
  • MagSpring or compensation spring
  • Hose or drag chain
  • Motor cable
  • Gantry bracing
  • Attachment blocs
  • * Deviations possible depending on installed peripherals

The Aventics EPS midi gantry XXYZ Series Electric Actuator is an electric, linear actuator designed for reliable and precise performance across a range of industrial positioning applications, thanks to the advanced technology and durable construction. Stroke lengths are incremental from 50 up to to 1660mm, with a maximum speed of 2m/s. This product line is bult for peak forces up to 1024N. This gantry system also offers high stiffness thanks to the Y-axis double guide. This structural design allows for repeat accuracy within 0.05mm, which can be further refined down to .02mm with an external path measuring system. The EPS midi gantry XXYZ Series is a highly versatile electric actuation solution that easily integrates into motion control systems.
