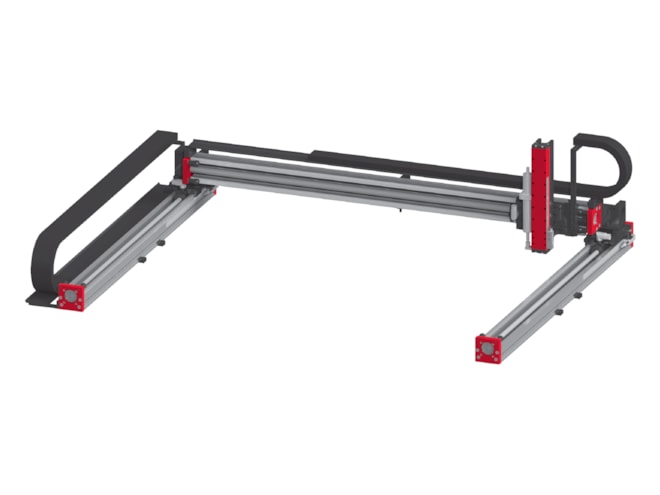

Aventics EPS maxi gantry XXYZ Series Electric Actuator

Electric, linear actuator with extremely stiff gantry module for repeat accuracy within ± 0.05mm. Peak force up to 1024N with up to 1660mm stroke.

Call for pricing
Part Number
  • maxi gantry XXYZ Electric
Highlights...

Features

  • Drive type: electrical, linear motor
  • Peak force: up to 1024N
  • Maximum speed: 2m/s
  • Repeat accuracy ± 0.05mm
    • With external path measuring system (1μm) ± 0.02mm
  • Z-axis offers up to 500mm stroke
  • Operating temperature range: 0 to 50°C
  • Control block with 5/3, 5/2 or vacuum units: up to 6 valves
  • Suitable for high masses

What's in the Box

  • 2x Ø 7h6 Centring sleeves
  • 4x Ø 9h7 Centring sleeves
  • MagSpring
  • Hose or drag chain
  • Motor cable
  • Gantry bracing
  • Attachment blocs
  • * Deviations possible depending on installed peripherals

The Aventics EPS maxi gantry XXYZ Series Electric Actuator is an electric, linear actuator designed for reliable and precise performance across a range of industrial positioning applications, thanks to the advanced technology and durable construction. Stroke lengths are incremental from 50 up to to 1660mm, with a maximum speed of 2m/s. This product line is bult for peak forces up to 1024N. This gantry system offers high stiffness for repeat accuracy within 0.05mm, which can be further refined down to .02mm with an external path measuring system. The EPS maxi gantry XXYZ Series is a highly versatile electric actuation solution that easily integrates into automation systems.
