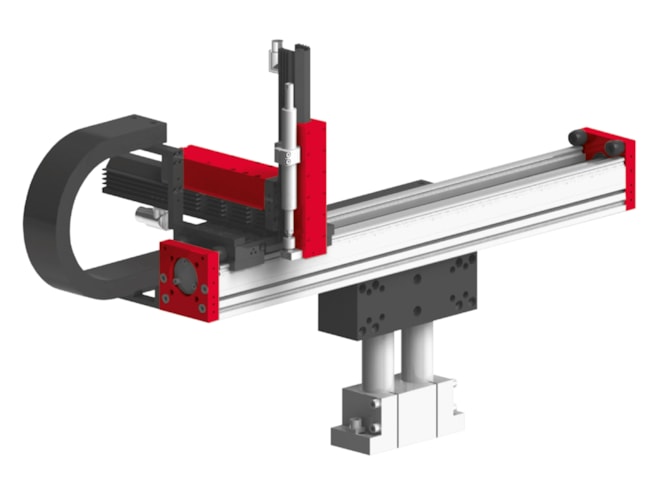

Aventics EPS midi XYZ Series Electric Actuator

Electric, linear actuator with high repeat accuracy within ± 0.05mm. High stiffness thanks to the X-axis double guide, booms up to 500mm.

Call for pricing
Part Number
  • midi XYZ Electric
Highlights...

Features

  • Drive type: electrical, linear motor
  • Peak force: up to 1024N
  • Maximum speed: 2m/s
  • Repeat accuracy ± 0.05mm
    • With external path measuring system (1μm) ± 0.02mm
  • Torsion-stiff X-axis
    • X/Y stiffness
  • Dynamic alignment
  • Booms up to 500mm
  • Operating temperature range: 0 to 50°C
  • Control block with 5/3, 5/2 or vacuum units: up to 6 valves

What's in the Box

  • 2x Ø 5h6 Centering sleeves
  • 2x Ø 7h6 Centering sleeves
  • 2x Ø 9h7 Centering sleeves
  • MagSpring or compensation spring
  • Hose or drag chain
  • Motor cable
  • * Deviations possible depending on installed peripherals

The Aventics EPS midi XYZ Series Electric Actuator is an electric, linear actuator designed for reliable and precise performance across a range of industrial applications, thanks to the advanced technology and durable construction. Stroke lengths are incremental from 50 up to 1660mm, with a maximum speed of 2m/s. The X-axis features a double guide that gives both X and Y high stiffness. Booms up to 500mm thanks to the lightweight Z-axis. This line is built for peak forces up to 1024N. Accuracy is within 0.05mm, which can be further refined down to .02mm with an external path measuring system. The EPS midi XYZ Series is a dynamic electric actuation solution that easily integrates into automation systems.
