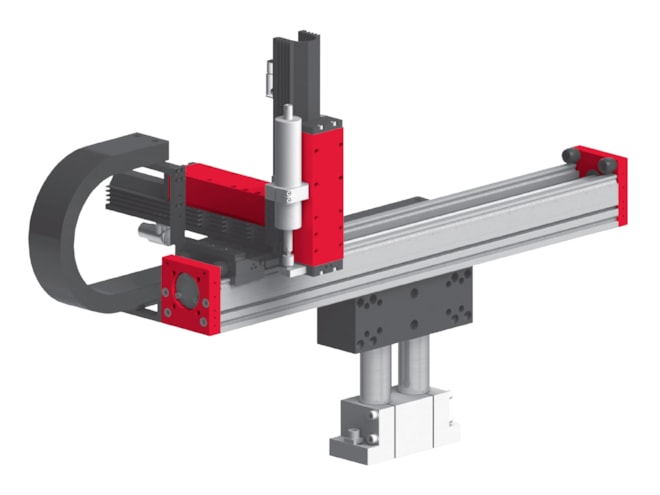

Aventics EPS maxi XYZ Series Electric Actuator

Electric, linear actuator with high accuracy within ± 0.05mm. Stiff module design for joining tasks, with peak force up to 1024N.

Call for pricing
Part Number
  • maxi XYZ Electric
Highlights...

Features

  • Drive type: electrical, linear motor
  • Peak force: up to 1024N
  • Maximum speed: 2m/s
  • Repeat accuracy ± 0.05mm
    • With external path measuring system (1μm) ± 0.02mm
  • Operating temperature range: 0 to 50°C
  • Control block with 5/3, 5/2 or vacuum units: up to 6 valves
  • Stiff modules for joining tasks

What's in the Box

  • 2x Ø 7h6 Centring sleeves
  • 4x Ø 9h7 Centring sleeves
  • MagSpring
  • Hose or drag chain
  • Motor cable
  • * Deviations possible depending on installed peripherals

The Aventics EPS maxi XYZ Series Electric Actuator is an electric, linear actuator designed for reliable and precise performance across a range of industrial applications, thanks to the advanced technology and durable construction. Stroke lengths are incremental from 50 up to to 1660mm, with a maximum speed of 2m/s. This product line has a peak force up to 1024N. This product line is well suited to joining tasks thanks to the stiff module design. Accuracy is within 0.05mm, which can be further refined down to .02mm with an external path measuring system. The EPS maxi XYZ Series is a highly versatile electric actuation solution that easily integrates into automation systems.
