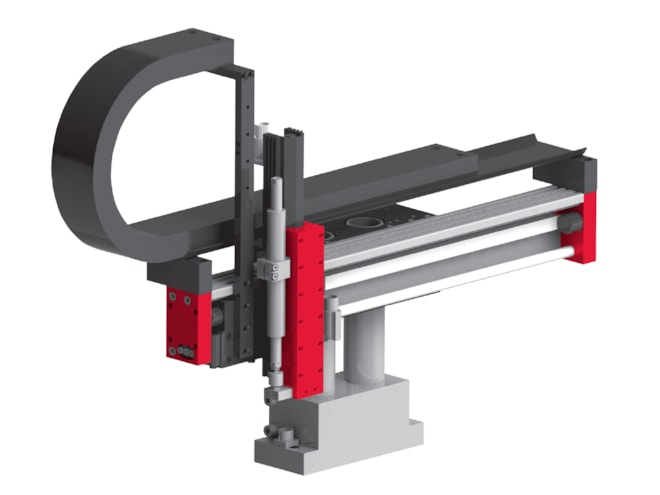

Aventics EPS mini XZ Series Electric Actuator

Electric, linear actuator with high accuracy within ± 0.05mm. Low-wear setup, with compact handling for up to 640mm strokes. Peak force up to 137N.

Call for pricing
Part Number
  • mini XZ Electric
Highlights...

Features

  • Drive type: electrical, linear motor
  • Peak force: up to 137N
  • Maximum speed: 4.8m/s
  • Repeat accuracy ± 0.05mm
    • With external path measuring system (1μm) ± 0.02mm
  • Operating temperature range: 0 to 50°C
  • Control block with 5/3, 5/2 or vacuum units: up to 6 valves
  • Low-wear setup
  • Compact handling for longer strokes

What's in the Box

  • 2x Ø 5h6 Centering sleeves
  • 2x Ø 7h6 Centering sleeves
  • 2x Ø 9h7 Centering sleeves
  • MagSpring or compensation spring
  • Hose or drag chain
  • Motor cable
  • * Deviations possible depending on installed peripherals

The Aventics EPS mini XZ Series Electric Actuator is an electric, linear actuator designed for reliable and precise performance across a range of industrial applications, thanks to the advanced technology and durable construction. Stroke lengths are incremental from 50 to 640mm, with a maximum speed of 4.8m/s. This system has a peak force up to 137N. Accuracy is within 0.05mm, which can be further refined down to .02mm with an external path measuring system. The EPS mini XZ Series is a compact electric actuation solution with a long service life, that easily integrates into existing handing systems
