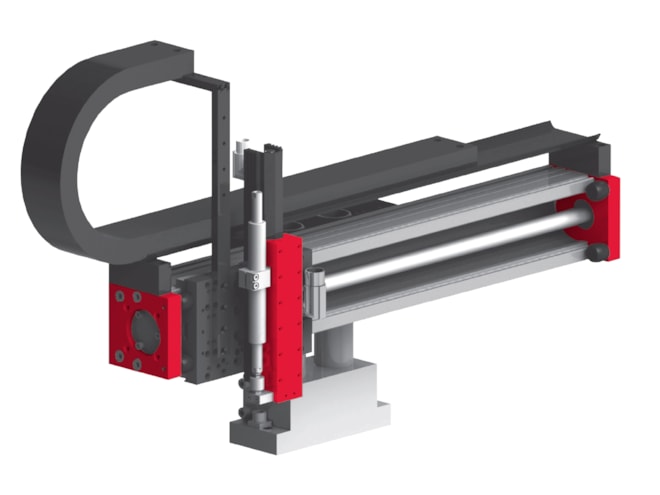

Aventics EPS midi XZ Series Electric Actuator

Electric, linear actuator with high repeat accuracy within ± 0.05mm. Lightweight, with torsion-stiff X-axis with double guide, and peak force up to 1000N.

Call for pricing
Part Number
  • midi XZ Electric
Highlights...

Features

  • Drive type: electrical, linear motor
  • Peak force: up to 1000N
  • Maximum speed: 2m/s
  • Repeat accuracy ± 0.05mm
    • With external path measuring system (1μm) ± 0.02mm
  • Torsion-stiff X-axis with double guide
  • Operating temperature range: 0 to 50°C
  • Control block with 5/3, 5/2 or vacuum units: up to 6 valves

What's in the Box

  • 2x Ø 5h6 Centering sleeves
  • 2x Ø 7h6 Centering sleeves
  • 2x Ø 9h7 Centering sleeves
  • MagSpring or compensation spring
  • Hose or drag chain
  • Motor cable
  • * Deviations possible depending on installed peripherals

The Aventics EPS midi XZ Series Electric Actuator is an electric, linear actuator designed for reliable and precise performance across a range of industrial applications, thanks to the advanced technology and durable construction. Stroke lengths are incremental from 50 up to 1660mm, with a maximum speed of 2m/s. This is a vertical module designed for high dynamics, with a torsion-stiff X-axis, built for peak forces up to 1000N. Accuracy is within 0.05mm, which can be further refined down to .02mm with an external path measuring system. The EPS midi XZ Series is a lightweight electric actuation solution that easily integrates into existing systems.
