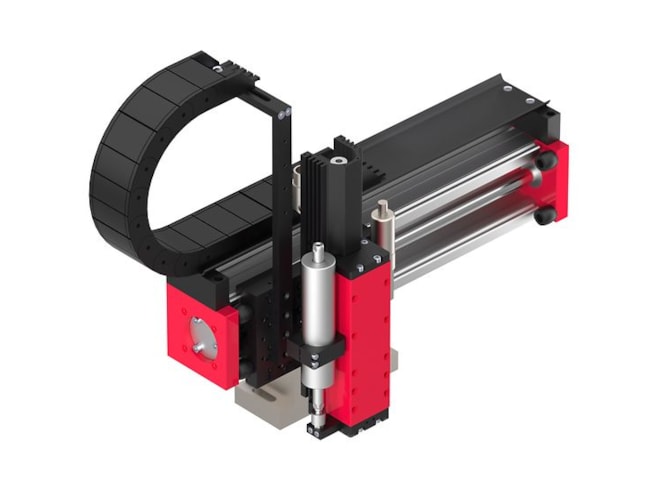

Aventics EPS maxi XZ Series Electric Actuator

Electric, linear actuator with short cycles times, and high accuracy within ± 0.05mm. Torsion-stiff X-axis, powerful Z-axis with peak force up to 255N.

Call for pricing
Part Number
  • maxi XZ Electric
Highlights...

Features

  • Drive type: electrical, linear motor
  • Peak force: up to 255N
  • Maximum speed: 2m/s
  • Repeat accuracy ± 0.05mm
    • With external path measuring system (1μm) ± 0.02mm
  • Operating temperature range: 0 to 50°C
  • Control block with 5/3, 5/2 or vacuum units: up to 6 valves
  • Torsion-stiff X-axis with double guide and high dynamics
  • Powerful Z-axis

What's in the Box

  • 2x Ø 7h6 Centring sleeves
  • 4x Ø 9h7 Centring sleeves
  • MagSpring
  • Hose or drag chain
  • Motor cable
  • * Deviations possible depending on installed peripherals

The Aventics EPS maxi XZ Series Electric Actuator is an electric, linear actuator designed for reliable and precise performance across a range of industrial applications, thanks to the advanced technology and durable construction. Stroke lengths are incremental from 50 to 500mm, with a maximum speed of 2m/s. This product line has a peak force up to 255N. A torsion stiff X-axis and powerful Z-axis provide a stiff setup even at long booms. Accuracy is within 0.05mm, which can be further refined down to .02mm with an external path measuring system. The EPS maxi XZ Series is a highly versatile electric actuation solution that easily integrates into existing systems.
