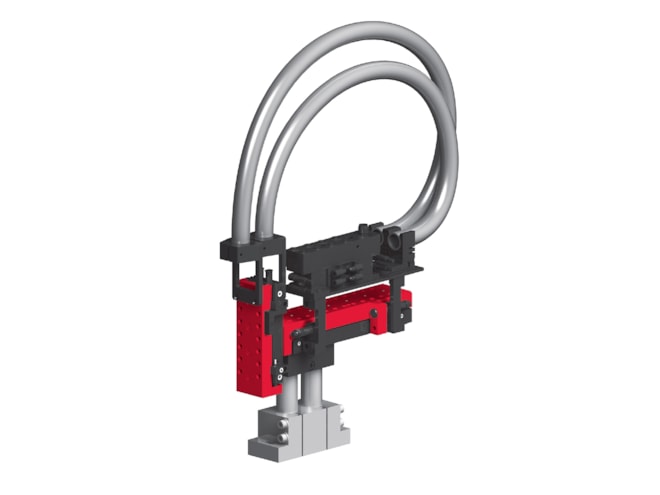

Aventics EPS nano YZ Series Pneumatic Actuator

Miniature pneumatic, linear actuator with high accuracy within ± 0.02mm. Stroke length up to 120mm along Y-axis. Intermediate stop available.

Call for pricing
Part Number
  • nano YZ Pneumatic
Highlights...

Features

  • Drive type: pneumatic
  • Maximum speed: 1m/s
  • Repeat accuracy: ± 0.02mm
  • Retract / extend piston force max: 103N / 120N
  • Intermediate stop available for Y and Z
  • Air connection: M5
  • Control block with 5/3, 5/2 or vacuum units: up to 6 valves
  • Operating temperature range: 0 to 50°C
  • Miniature system, fully pre-cabled and pre-piped ready for operation

What's in the Box

  • 4x Ø 7h6 Centering sleeves
  • 4x Special screws M4x20/8
  • 4x Shock absorbers
  • Hose
  • Complete piping/wiring
  • * Deviations possible depending on installed peripherals

The Aventics EPS nano YZ Series Pneumatic Actuator is a pneumatic, linear actuator designed for reliable and precise performance across a range of industrial applications, thanks to the advanced technology and durable construction. Stroke lengths are incremental from 30 to 120mm, with a maximum speed of 1m/s. Intermediate stop functionality is available along both Y and Z axes. This system has a max retract and extend force up to 103N, and 120N respectively. Repeat accuracy is within 0.02mm. The EPS nano YZ Series is a lightweight, miniature pneumatic actuation solution that easily integrates into existing systems.
