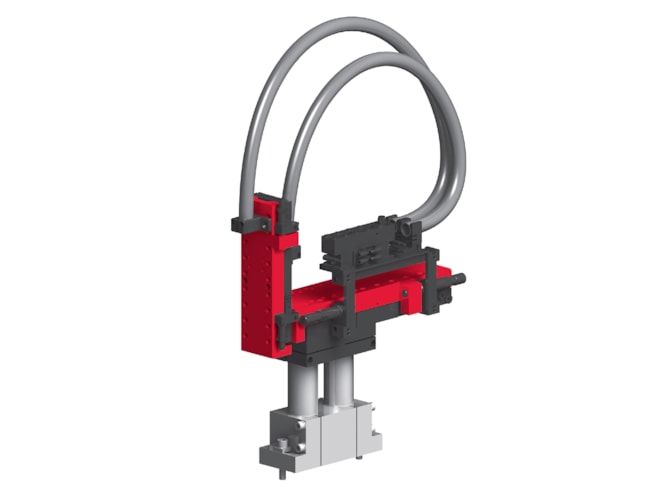

Aventics EPS midi YZ Series Pneumatic Actuator

Pneumatic, linear actuator with high repeat accuracy within ± 0.02mm. Compact system with stroke length up to 240mm along Y-axis. Intermediate stop available.

Call for pricing
Part Number
  • midi YZ Pneumatic
Highlights...

Features

  • Drive type: pneumatic
  • Maximum speed: 1m/s
  • Repeat accuracy: ± 0.02mm
  • Retract / extend piston force max: 245N / 305N
  • Intermediate stop available for Y and Z
  • Air connection: M5, G1/8
  • Control block with 5/3, 5/2 or vacuum units: up to 6 valves
  • Operating temperature range: 0 to 50°C
  • Compact, fully pre-cabled and pre-piped ready for operation

What's in the Box

  • 2x Ø 7h6 Centering sleeves
  • 2x Ø 9h7 Centering sleeves
  • 2x Ø 12h6 Centering sleeves
  • 4x Special screws M8x35/15
  • 4x Shock absorbers
  • Hose
  • Complete piping/wiring
  • * Deviations possible depending on installed peripherals

The Aventics EPS midi YZ Series Pneumatic Actuator is a pneumatic, linear actuator designed for reliable and precise performance across a range of industrial applications, thanks to the advanced technology and durable construction. Stroke lengths are incremental from 50 to 240mm, with a maximum speed of 1m/s. Intermediate stop functionality is available along both Y and Z axes. This system has a max retract and extend piston force up to 245N, and 305N respectively. Repeat accuracy is within 0.02mm. The EPS midi YZ Series is a compact pneumatic actuation solution that easily integrates into existing systems.
