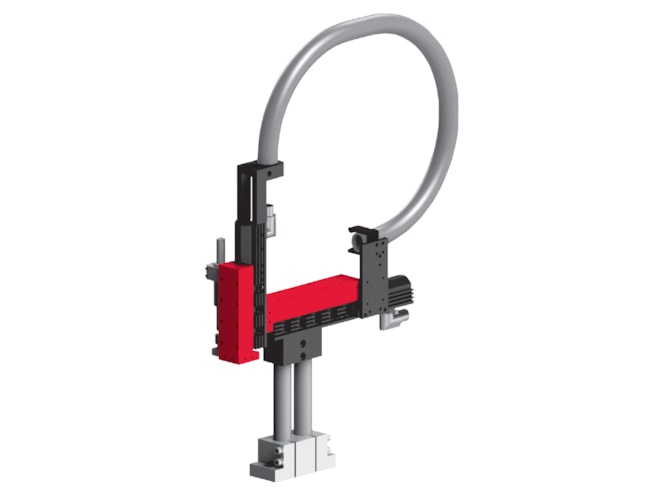

Aventics EPS mini YZ Series Electric Actuator

Electric, linear actuator with high accuracy within ± 0.05mm. Compact system with a 40mm width, with peak force up to 255N.

Call for pricing
Part Number
  • mini YZ Electric
Highlights...

Features

  • Drive type: electrical, linear motor
  • Peak force: up to 255N
  • Maximum speed: 3.2m/s
  • Repeat accuracy ± 0.05mm
    • With external path measuring system (1μm) ± 0.02mm
  • Operating temperature range: 0 to 50°C
  • Control block with 5/3, 5/2 or vacuum units: up to 6 valves
  • Compact housing: 40mm width
  • Energy and cost-efficient

What's in the Box

  • 2x Ø 5h6 Centring sleeves
  • 4x Ø 7h6 Centring sleeves
  • MagSpring or compensation spring
  • Hose or drag chain
  • Motor cable
  • * Deviations possible depending on installed peripherals

The Aventics EPS mini YZ Series Electric Actuator is an electric, linear actuator designed for reliable and precise performance across a range of industrial applications, thanks to the advanced technology and durable construction. Stroke lengths are incremental from 50 to 500mm, with a maximum speed of 3.2m/s. This system has a peak force up to 255N. Accuracy is within 0.05mm, which can be further refined down to .02mm with an external path measuring system. The EPS mini YZ Series is a highly compact electric actuation solution that easily integrates into existing systems, and is a versatile alternative to pneumatic handling systems.
