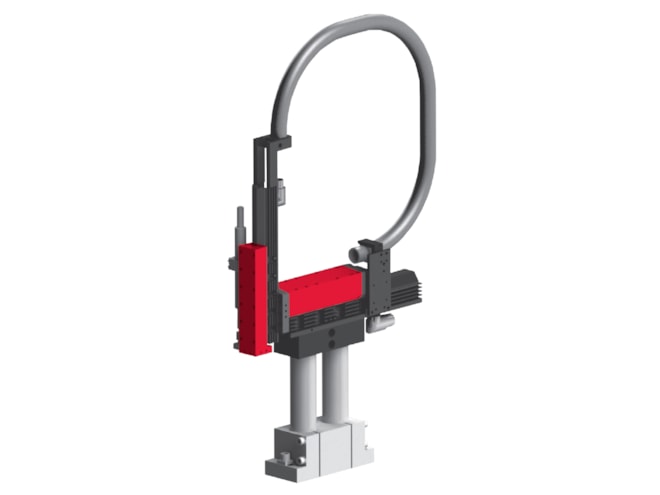

Aventics EPS midi YZ Series Electric Actuator
Electric, linear actuator with high accuracy within ± 0.05mm. Vertical module with a peak force up to 255N. Lightweight module available for high dynamics.
- midi YZ Electric
- midi YZ Electric
- By Aventics
- FREE Shipping on orders of $1,000 or more
Overview
Features
- Drive type: electrical, linear motor
- Peak force: up to 255N
- Maximum speed: 3.2m/s
- Repeat accuracy ± 0.05mm
- With external path measuring system (1μm) ± 0.02mm
- Operating temperature range: 0 to 50°C
- Control block with 5/3, 5/2 or vacuum units: up to 6 valves
- Compact handling with boom Y to 500mm stroke
What's in the Box
- 2x Ø 5h6 centering Sleeves
- 2x Ø 7h6 centering Sleeves
- 2x Ø 9h7 centering Sleeves
- MagSpring or compensation spring
- Hose or drag chain
- Motor cable
- * Deviations possible depending on installed peripherals
Description
The Aventics EPS midi YZ Series Electric Actuator is an electric, linear actuator designed for reliable and precise performance across a range of industrial applications, thanks to the advanced technology and durable construction. Stroke lengths are incremental from 50 to 500mm, with a maximum speed of 3.2m/s. This is a vertical module featuring a robust boom system, with the ES30 stiff gantry module rated for peak force up to 255N. The ES20 variant offers a lightweight variant for high dynamics. Accuracy is within 0.05mm, which can be further refined down to .02mm with an external path measuring system. The EPS midi YZ Series is a highly versatile, compact electric actuation solution that easily integrates into existing systems.
