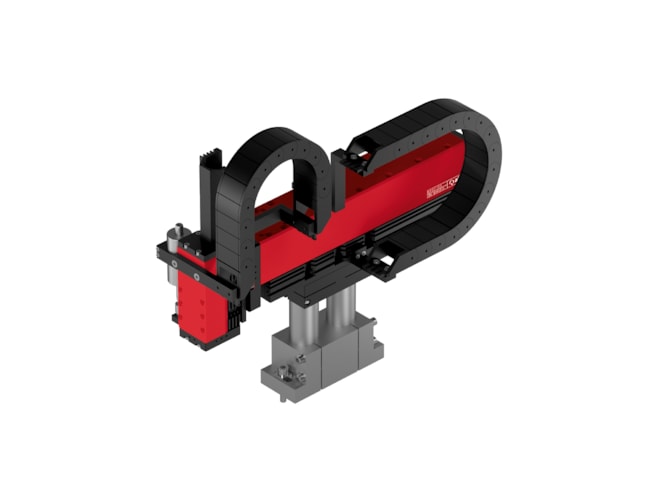

Aventics EPS giga YZ Series Electric Actuator

Electric, linear actuator with short cycles times, and high accuracy within ± 0.05mm. Peak force up to 1024N, and payloads up to 15kg.

Call for pricing
Part Number
  • giga YZ Electric
Highlights...

Features

  • Drive type: electrical, linear motor
  • Peak force: up to 1024N
  • Maximum speed: 2m/s
  • Repeat accuracy ± 0.05mm
    • With external path measuring system (1μm) ± 0.02mm
  • Payloads of up to 15kg
  • Operating temperature range: 0 to 50°C
  • Control block with 5/3, 5/2 or vacuum units: up to 6 valves
  • System width: 180mm

What's in the Box

  • 2x Ø7x3 centering sleeves
  • 2x Ø9x4 centering sleeves
  • 2x Ø12x4.8 centering sleeves
  • Hose or drag chain
  • Motor cable
  • * Deviations possible depending on installed peripherals

The Aventics EPS giga YZ Series Electric Actuator is an electric, linear actuator designed for reliable and precise performance across a range of industrial applications, thanks to the advanced technology and durable construction. Stroke lengths are incremental from 50 to 500mm, with a maximum speed of 2m/s. Rigid slide contours facilitate precise press-in tasks. Accuracy is within 0.05mm, which can be further refined down to .02mm with an external path measuring system. The EPS giga YZ Series is a highly versatile, compact electric actuation solution that easily integrates into existing systems.
