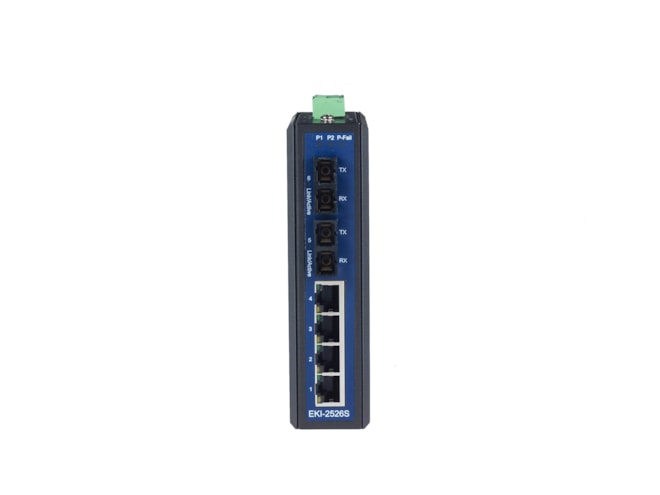

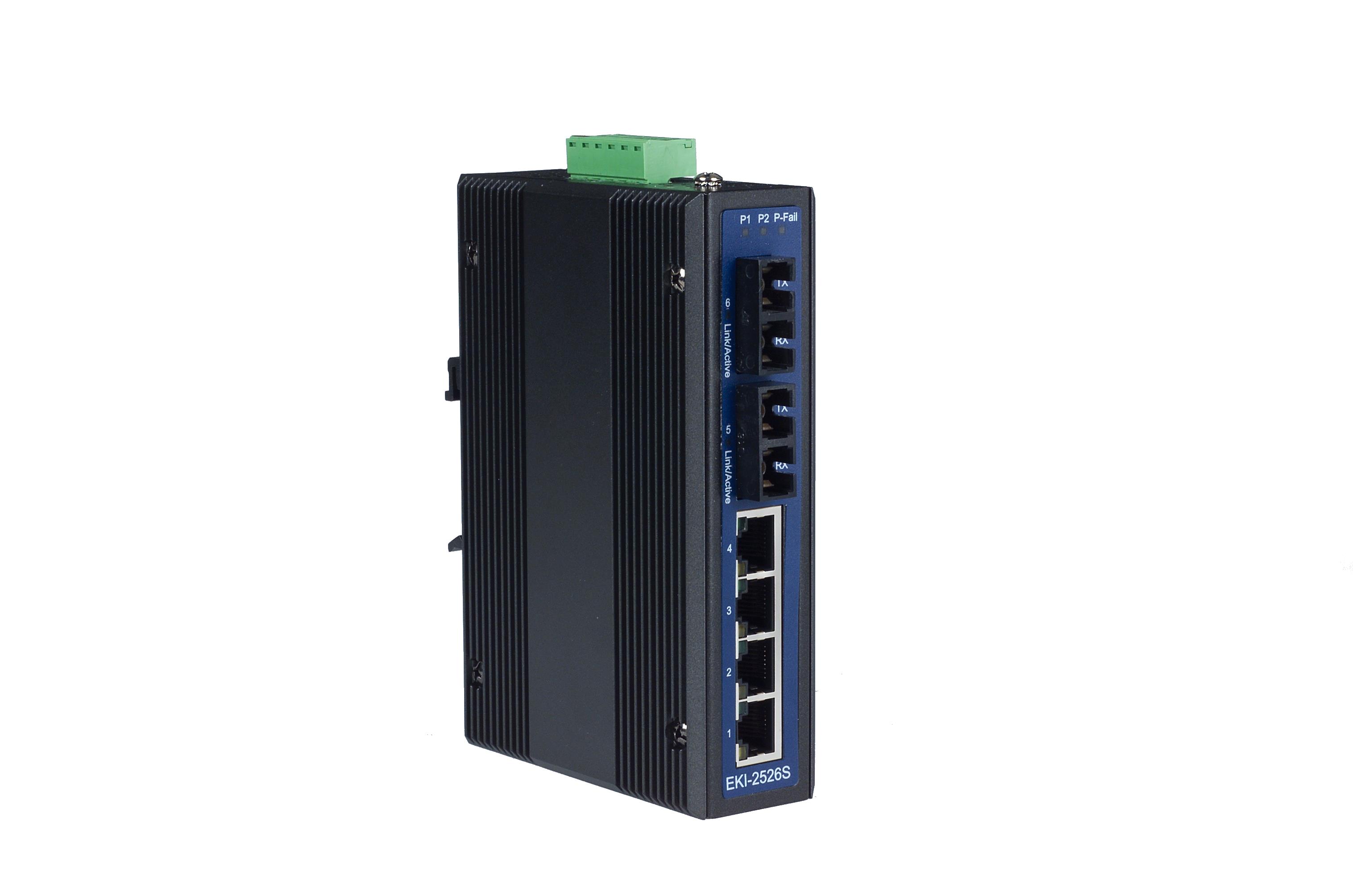

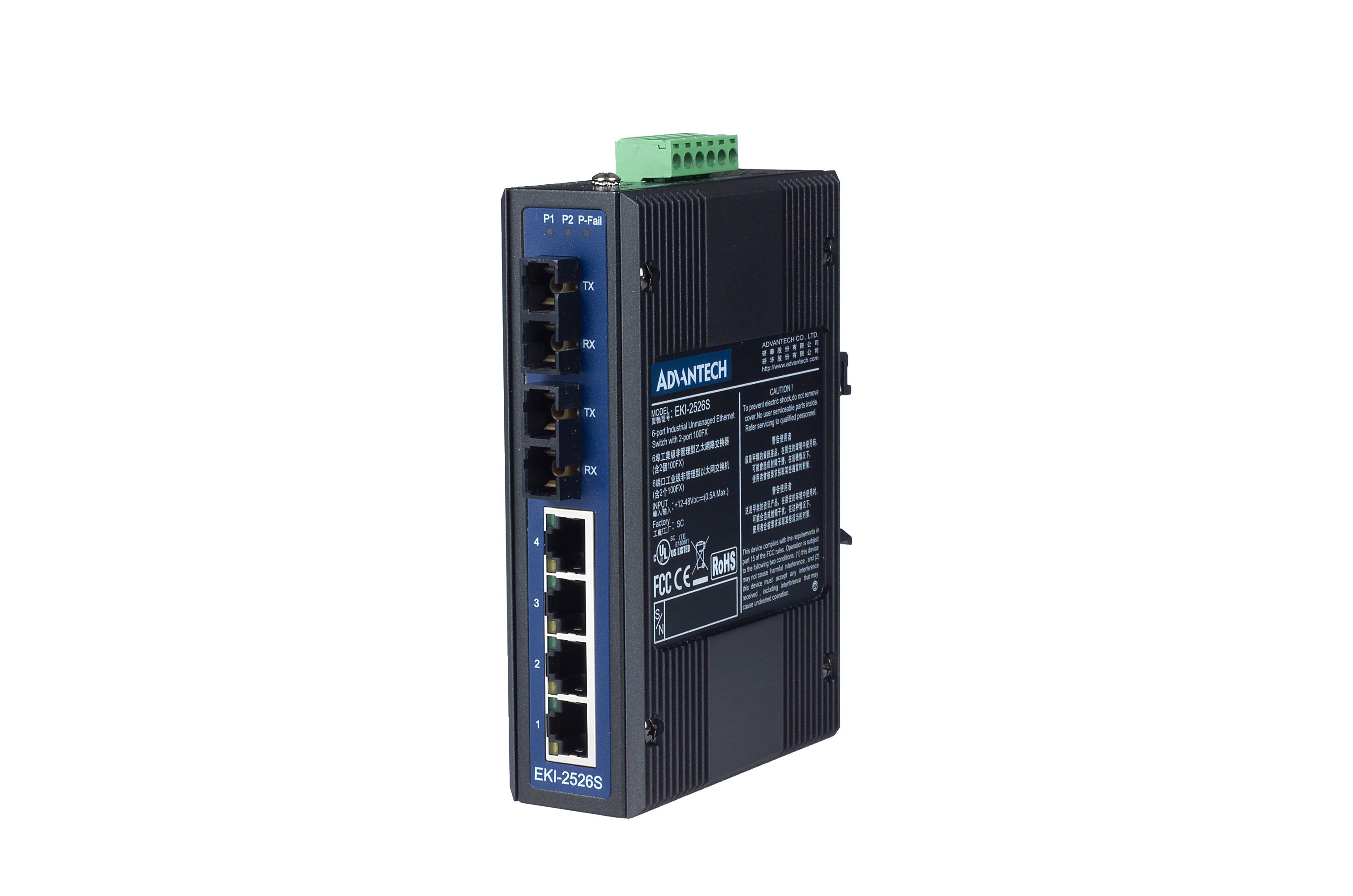

Advantech EKI-2526S-AE

4+2 SC Single-mode Unmanaged Ethernet Switch.

$758.13
Part Number
  • EKI-2526S-AE
Highlights...

Features

  • EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
  • EMS: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
  • Safety: UL/cUL 60950-1, Class I Division 2
  • Temperature (Max. Operating): 60°C (140°F)
  • Fiber Port Interface: Single-Mode
  • Fiber Port Connector Type: SC Type
  • Fiber Transmission Distance: 30 km
  • Fiber Transmission Speed: 100 Mbps
  • RJ-45 Port Connector Type: RJ-45
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Transmission Speed: 10/100 Mbps
  • Mounting (DIN-rail): Yes
  • Mounting (Wall): Yes
  • Dimensions (W x H x D): 37 x 140 x 95 mm (1.46 x 5.51 x 3.74 in.)
  • IP Rating: IP30
  • Support PoE: No
  • Power Connector Type: 6-pin removable screw terminal
  • Power Consumption: 6.45W
  • Power Input (DC): 12 ~ 48 VDC
  • Redundant Dual Inputs: Yes
  • Warranty Period: 5 years
  • Overload Current: Present
  • Reverse Polarity: Present
  • Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector
  • Provides 2 x 100 Mbps Single-mode SC type fiber optic port
  • Supports full/half duplex flow control
  • Supports MDI/MDI-X auto crossover
  • Provides Redundant 12 ~ 48 VDC power input
  • Provides flexible mounting: DIN-rail and Wall mount
EKI-2525M/2526M/2526S are industrial-grade Ethernet switches that enable you to expand your industrial network fast and cost-effectively. The EKI-2525M/2526M/2526S have four 10/100 Mbps Ethernet ports, and additionally the EKI-2525M/2526M provides one or two multi-mode fiber-optic ports, while the EKI-2526S provides two single-mode fiber-optic ports. Using fiber-optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 30 km) transmissions. EKI-2525M/2526M/2526S have industrial-grade designs, assuring high reliability and stability in harsh environments, making it a robust bridge between enterprise fiber-optic backbones and Ethernet devices. EKI-2525M/2526M/2526S includes a switch controller that can automatically sense transmission speeds. The RJ45 interface can also be autodetected, so MDI or MDI-X is automatically selected and a crossover cable is not required. All the Ethernet ports have memory buffers that support the store and forward mechanism, assuring all data is transmitted properly.
