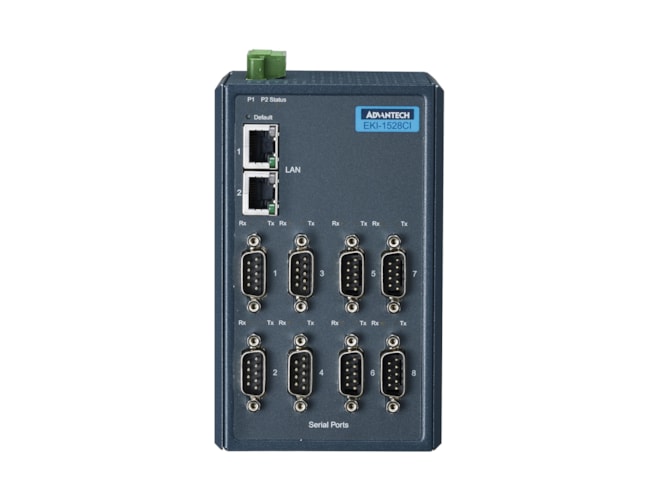

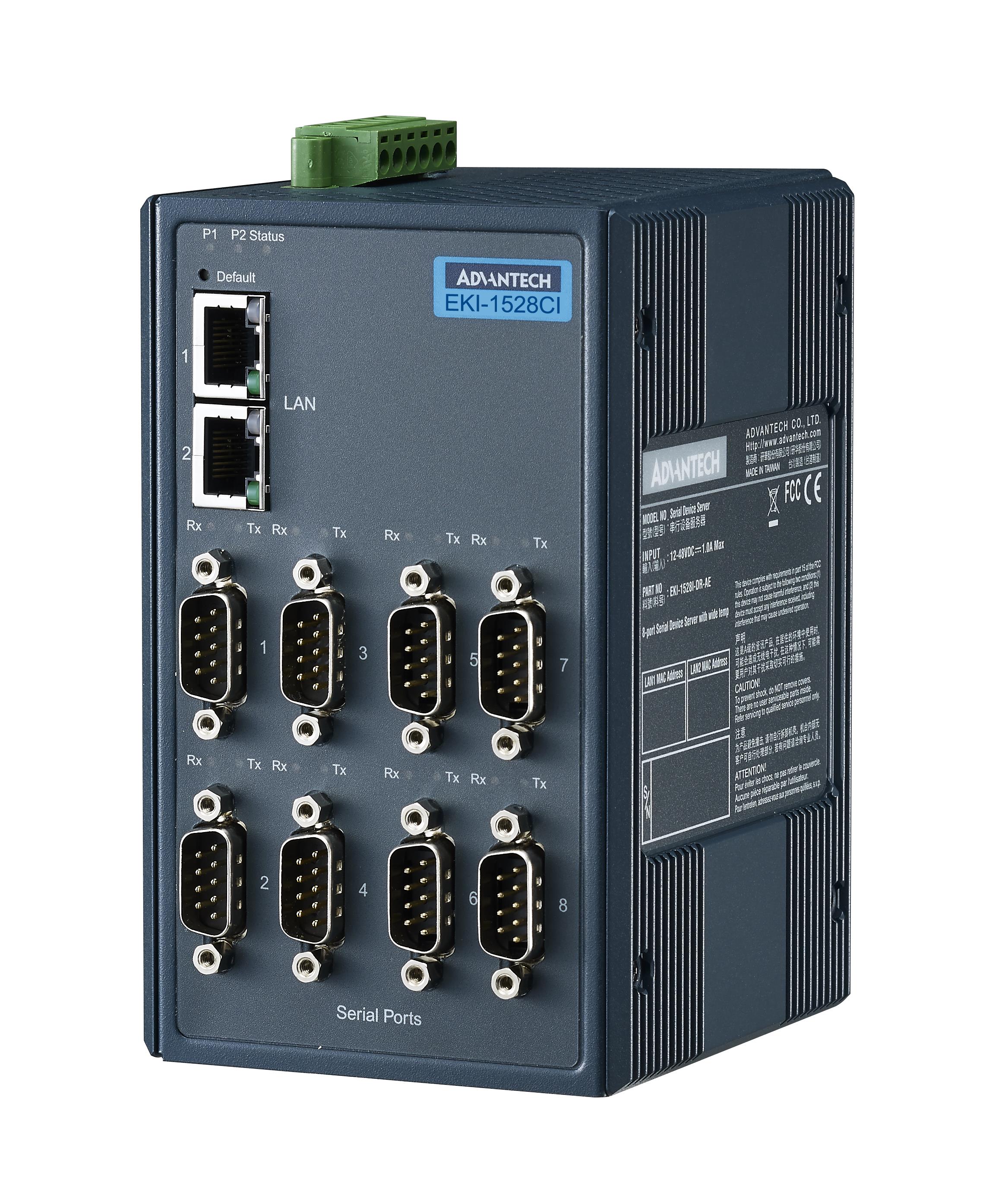

Advantech EKI-1528I-DR-AE

8-port RS-232/422/485 Serial Device Server - Wide Temperature.

$856.00
Part Number
  • EKI-1528I-DR-AE
Highlights...

Features

  • EMC: CE, FCC
  • EMS: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
  • Freefall: IEC 60068-2-32
  • Safety: UL 60950-1
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6
  • RJ-45 Port Connector Type: RJ-45
  • Serial Port Connector Type: DB9 male
  • Operating Humidity: 10~95% RH
  • Temperature (Max. Operating): 70°C (158°F)
  • Ethernet Standard: IEEE 802.3 , 802.3u
  • RJ-45 Transmission Speed: 10/100 Mbps
  • Dimensions (W x H x D): 86.6 x 140 x 104 mm (3.41 x 5.51 x 3.74 in.)
  • IP Rating: IP30
  • Mounting (DIN-rail): Yes
  • Mounting (Wall): Yes
  • Weight: 9 kg
  • Power Consumption: 5.6W
  • Power Input (DC): 12 ~ 48 VDC
  • Power Operating Current: 1A @ 24 VDC
  • Redundant Dual Inputs: Yes
  • Reverse Polarity: Present
  • RS-422: Yes
  • RS-485: Yes
  • Baud Rate: 50 ~ 921.6 Kbps
  • Port to Port Isolation: Serial to Ethernet 2 kV; Serial to Power 2 kV; Ethernet to Power 1.5 kV
  • Serial Transmission Speed: 50 ~ 921.6 Kbps
  • Configuration: Windows utility, Telnet console, Web Browser
  • Driver: Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
  • Operation Mode: COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode, TCP/UDP client (event handling) mode,
  • Warranty Period: 5 years
  • Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Supports up to 921.6 kbps, and any baud rate setting
  • Allows a max. of 5 hosts to access one serial port
  • Allows a max. of 16 hosts to be accessed as TCP client mode
  • Built-in 15 KV ESD protection for all serial signals
  • Provides rich configuration methods including Windows utility, Telnet console, and Web Browser
  • Supports 32-bit/64-bit Windows 2000/XP/Vista/7/8/8.1, Windows Server 2003/2008/2012/2016, Windows CE 5.0, and Linux
  • Automatic RS-485 data flow control
  • Supports line to line 4 KV, line to ground 8 KV surge protection
The EKI-1528I and EKI-1528CI feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. The EKI-1528I and EKI-1528CI are serial device servers that connect RS-232/422/485 serial devices, such as PLC, meters, sensors, and barcode reader to an IP-based Ethernet LAN. They allow nearly any device with serial ports to connect and share an Ethernet network. The EKI-1528I and EKI-1528CI provide various operations: COM port redirection (Virtual COMport), TCP Server, TCP Client and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the EKI-1528I and EKI-1528CI, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. With TCP server, TCP client, and UDP modes, EKI-1528I and EKI-1528CI ensure the compatibility of network software that uses a standard network API. Moreover, you can make serial devices communicate with other devices peer-to-peer, without any intermediate host PCs and software programming.
